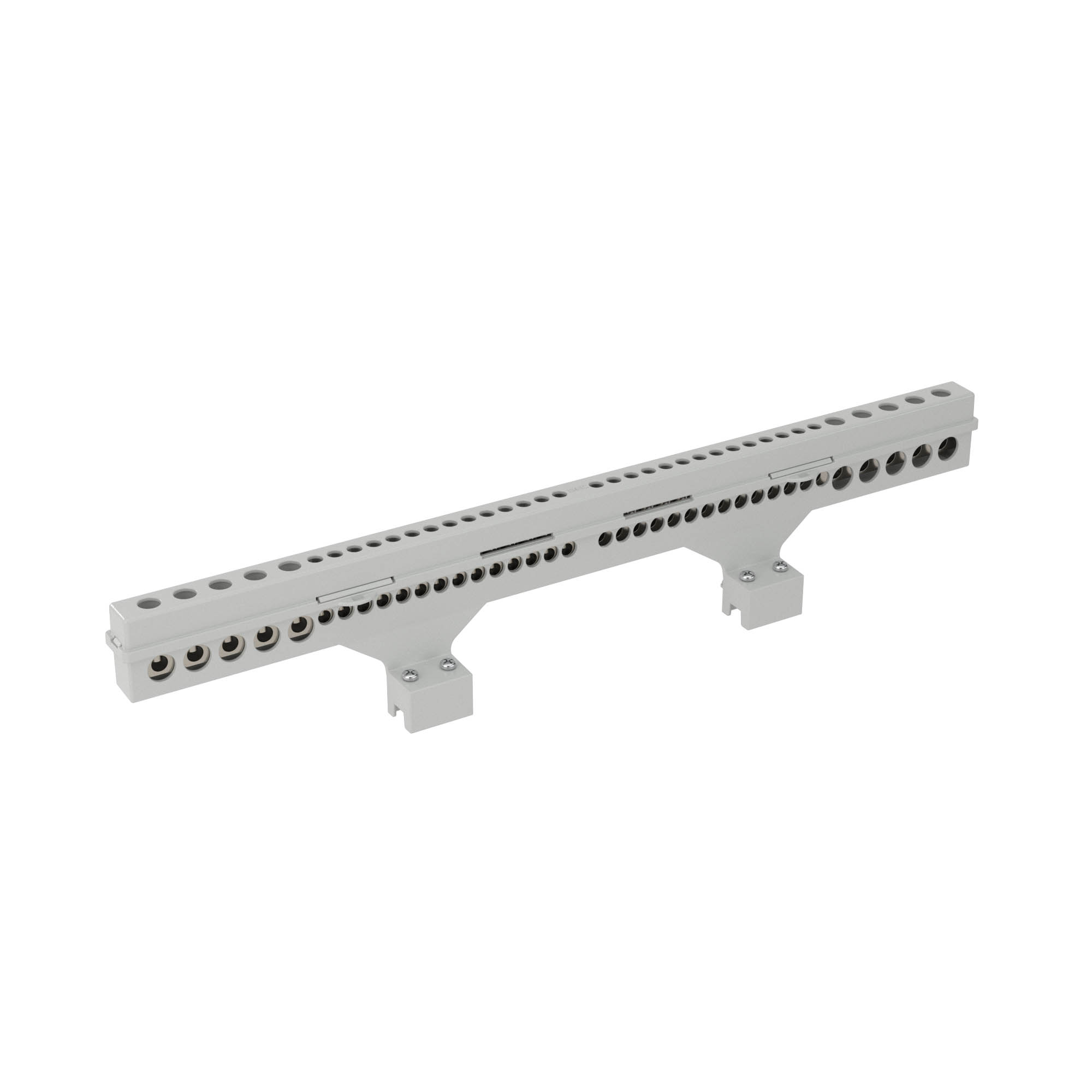

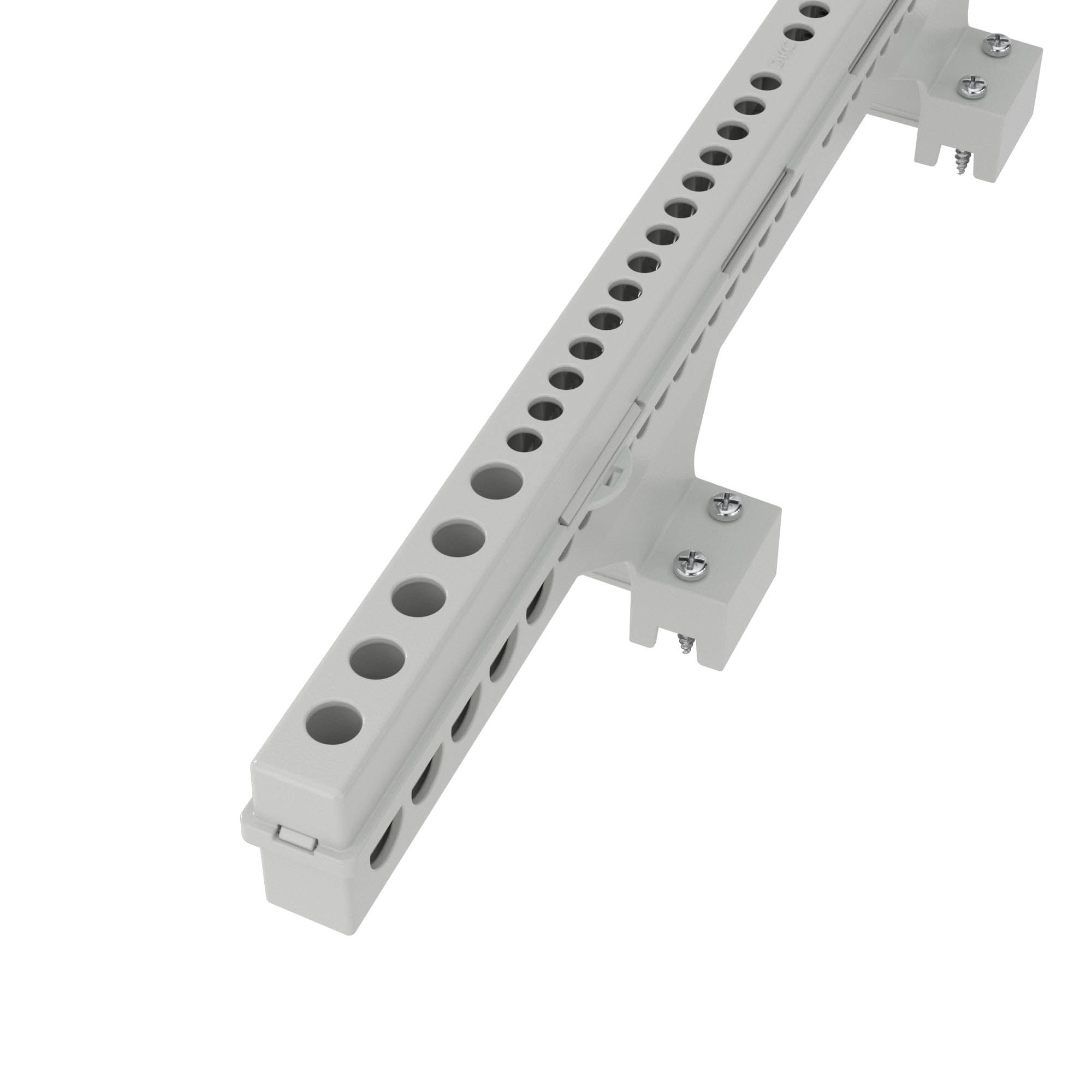

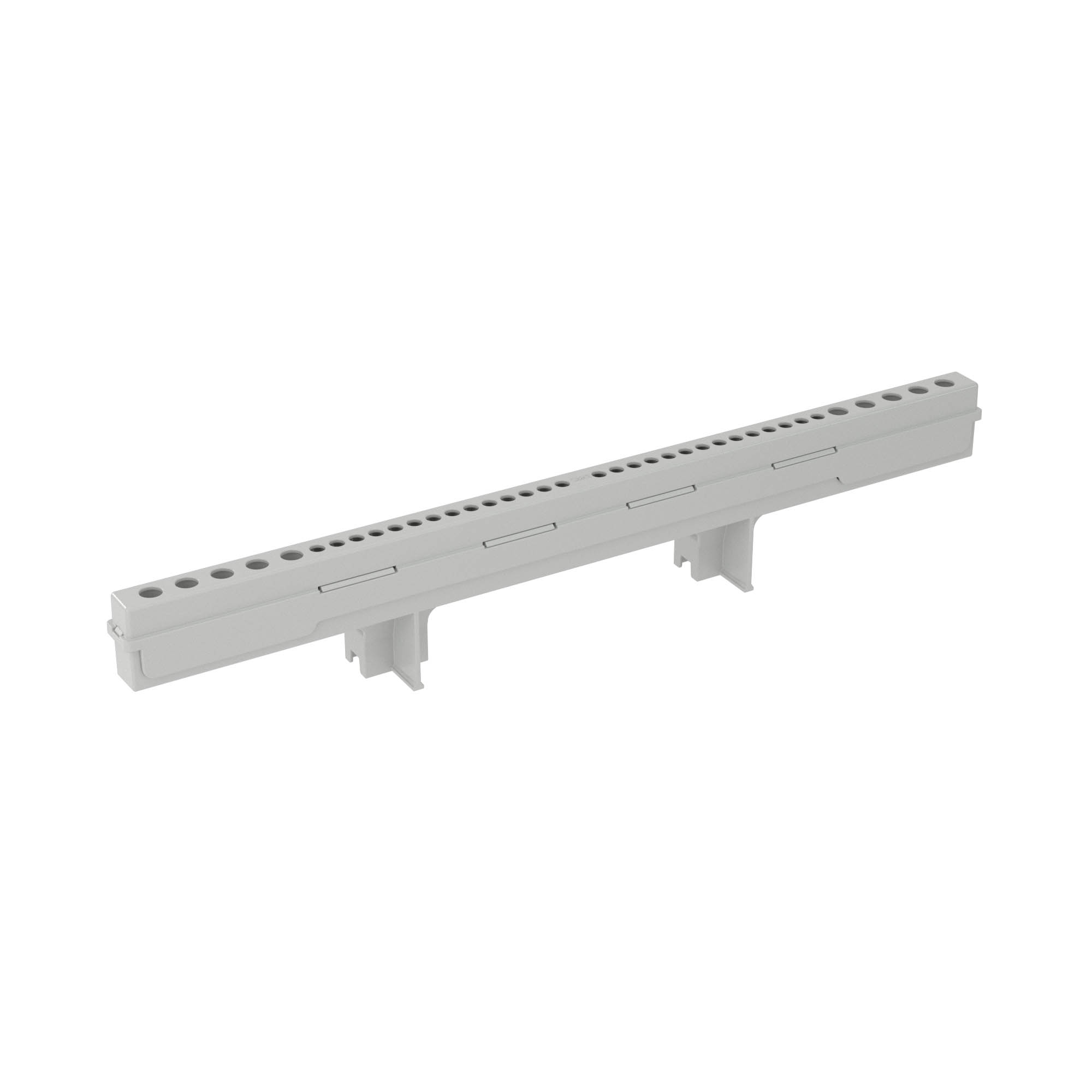

Terminal block (2х18modules, + supports)
Code: 87518
Terminal block (2х18modules, + supports)
Code: 87518
| Mounting method | Special profile |
| Colour | Other |
| Rated voltage, V | 400 |
| Number of poles | 24 |
| Length, mm | 335.0 |
| Operating temperature, °C | -60...80 |
| Number of clamp positions per pole | 14 |
| Width/grid dimension, mm | 5.4 |
| Height at lowest possible mounting height, mm | 15.0 |
| Closing plate required | Yes |
| Transparent | Yes |
| Explosion-tested version 'Ex e' | Yes |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Other |
| Connection position | Sideways |
