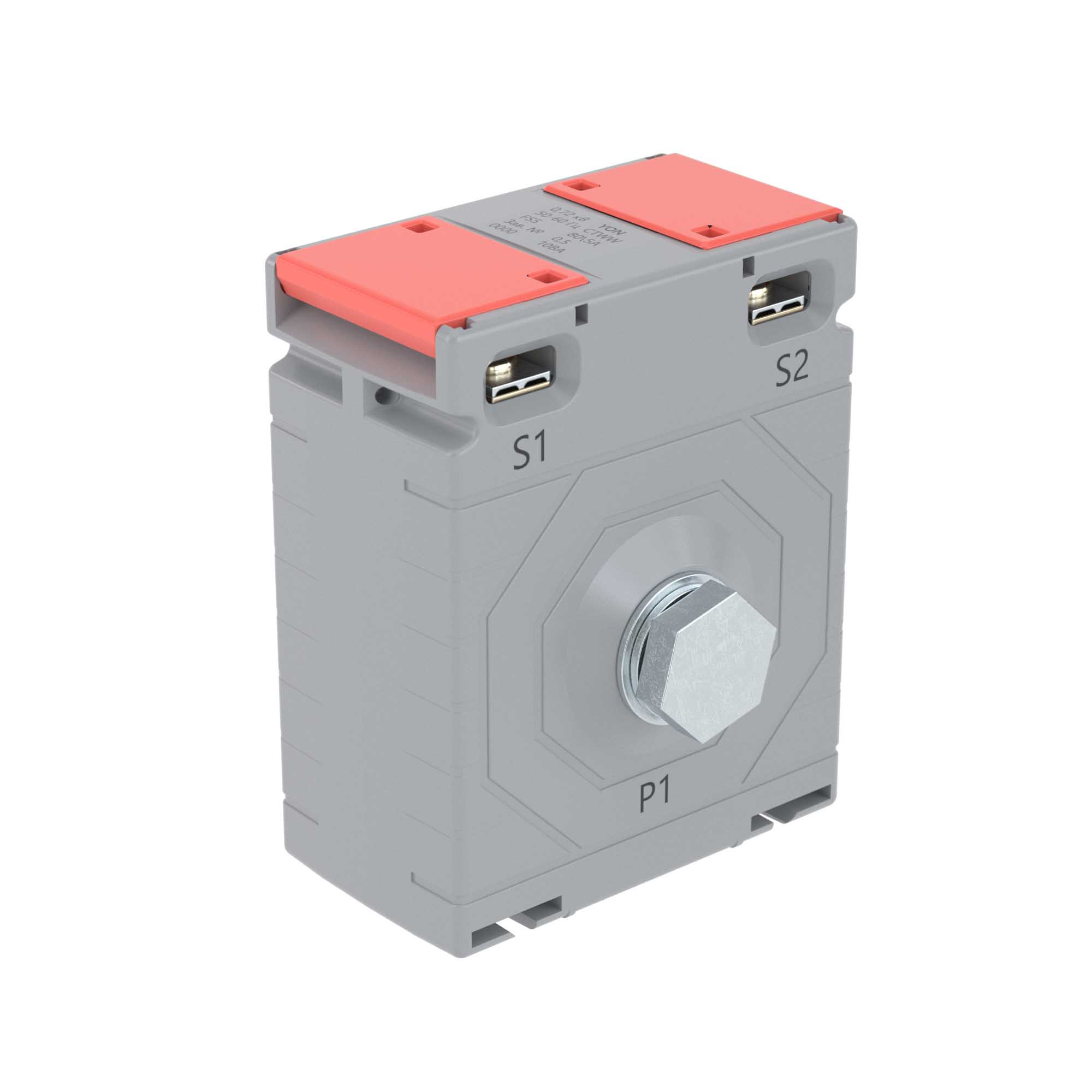

Current transformer CTWW 50/5А, accuracy class -0.2, power - 5ВА
Code:
CTWW-50-0.2-5
Current transformer CTWW 50/5А, accuracy class -0.2, power - 5ВА
Code:
CTWW-50-0.2-5
Model | Attachable current transformer |
Accuracy class | 0.2 |
Calibrated | No |
Number of primary inputs | 1 |
With copper rail | Yes |
Primary rated current, A | 50 |
Snap mounting | No |
Secondary connection | Screw connection |
Secondary rated apparent power, VA | 5 |
Secondary rated current, A | 5 |
Over current limiting factor | FS 5 |
With shock protection | Yes |
Marking | CTWW-50-0.2-5 |
Series | YON CT |
Primary winding current | 50 A |
Secondary winding current | 0.20833333333333 |
Accuracy class | 0.2 |
