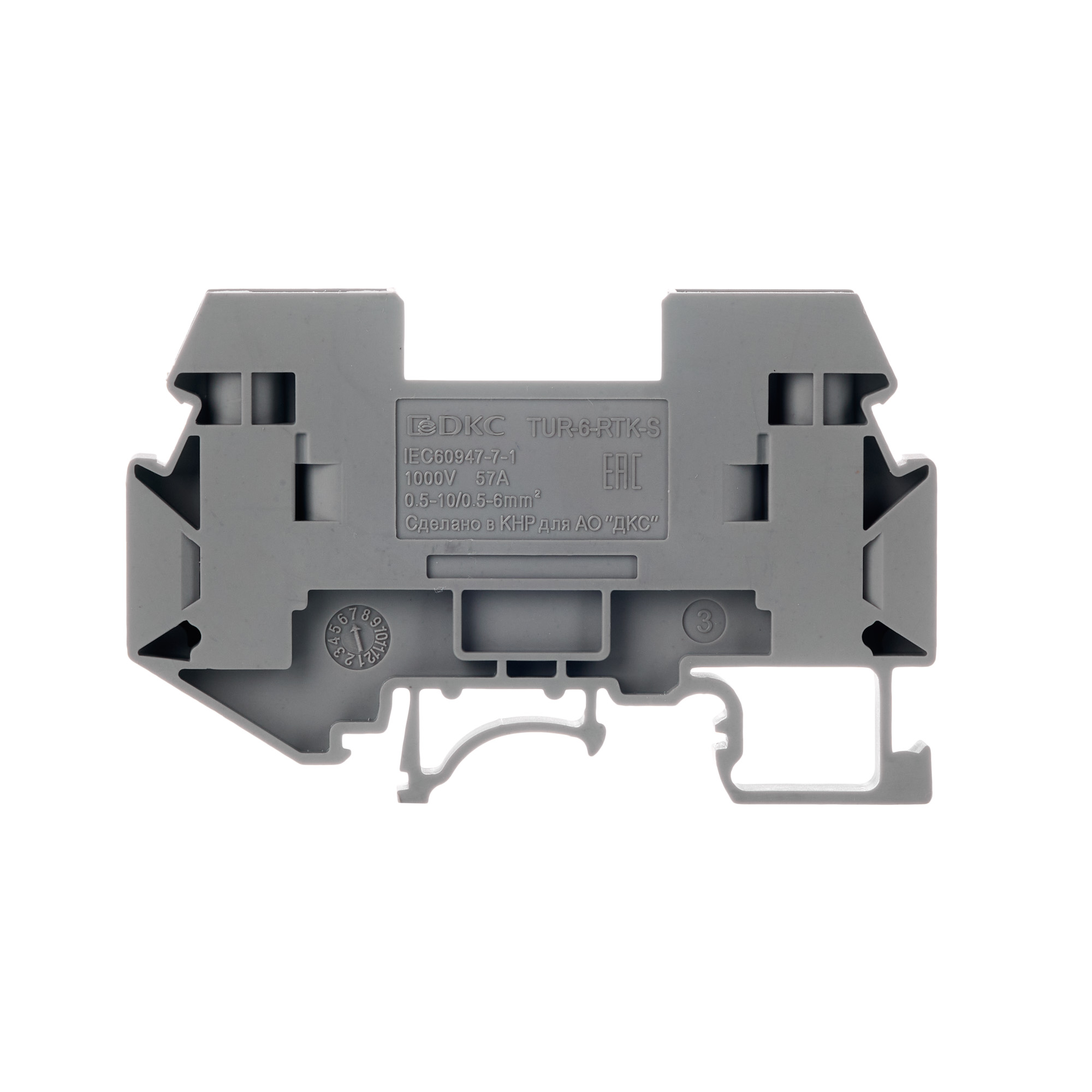

TUR-6-RTK-S
Code: TUR-6-RTK-S
TUR-6-RTK-S
Code: TUR-6-RTK-S
Rated current In, A | 57 |
Rated voltage, V | 1000 |
Colour | Grey |
Length, mm | 72 |
Width/grid dimension, mm | 8.2 |
Height at lowest possible mounting height, mm | 51.5 |
Material insulation body | Thermoplastic |
Operating temperature, °C | -40...105 |
Inflammability class of insulation material according to with UL94 | V0 |
Mounting method | DIN rail (top hat rail)/G-rail TH35/G32 |
Type of slitting | Sliding |
Type of cross disconnection | Sliding |
With integrated test socket | Yes |
Connectable conductor cross section solid-core, mm² | 0.5...10 |
Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.5...6 |
Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.5...6 |
Connectable conductor cross section multi-wired, mm² | 0.5...6 |
Type of electrical connection 1 | Screw connection |
Type of electrical connection 2 | Screw connection |
Number of levels | 1 |
Number of clamp positions per level | 2 |
Internally connected stages | No |
Closing plate required | No |
Connection position | Sideways |
Product type | Terminal block |

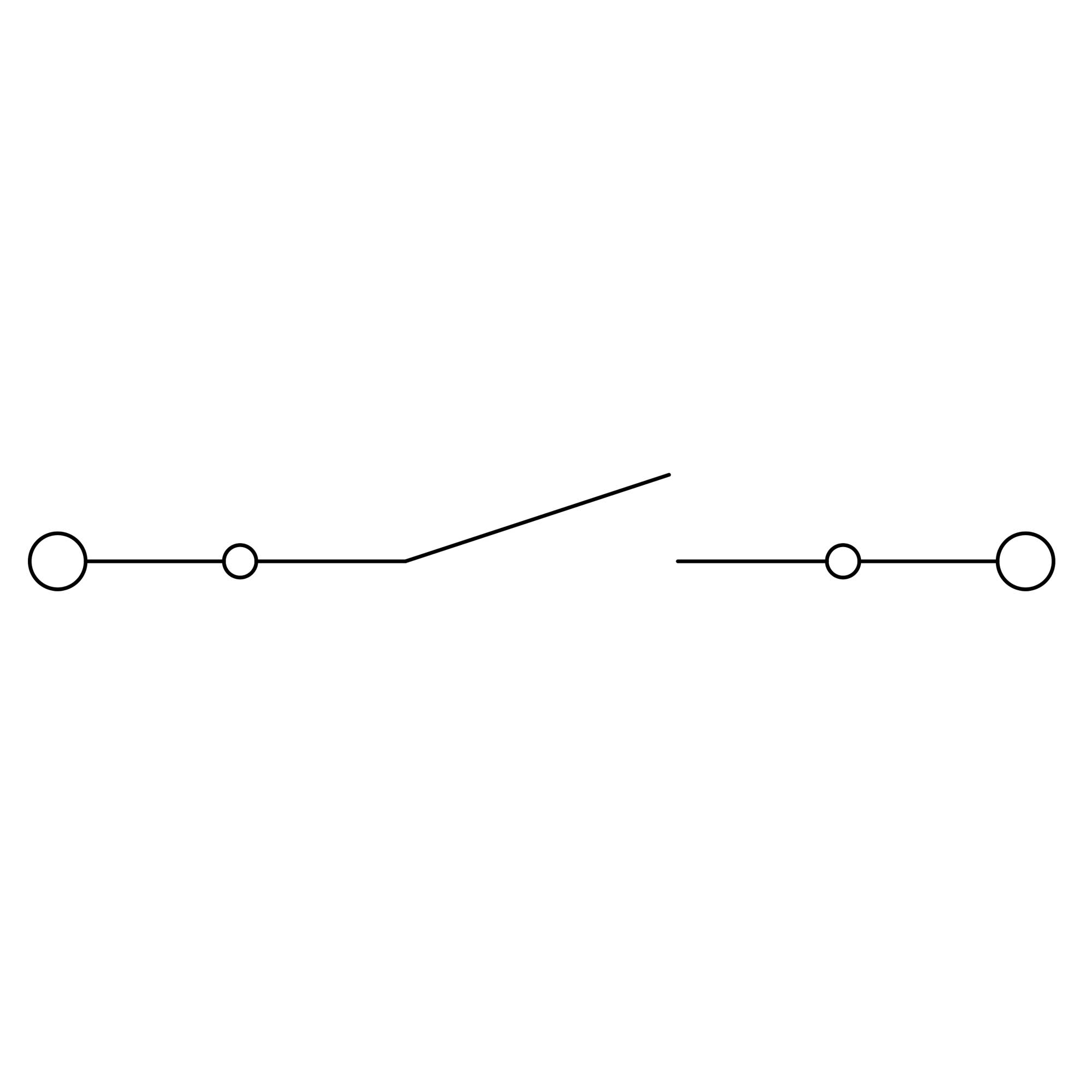

Function | Test-disconnect |
Clamp type | Screws |
Width | 8,2 mm |
Number of levels | 1 |
Number of connection points | 2 |
Rated cross-section | 6 mm² |
Max. cross-section | 10 mm² |
Two wires same cross-section | 0,5−4 mm² |
Stripping length | 13 mm |
Rated impulse withstand voltage | 8 kV |
Pollution severity | 3 |
Max.current | 57 A |
Screw size disconnector | M3 |
Screw size connection point | M4 |
Tightening torque | 1,2−1,5 N∙m |
Blade size | 1,0 × 4,0 |
Material of case | PA |
Weight | 27,5 g |
