Flexible perforated duct, self-adhesive, FD43
Code: 02183
Flexible perforated duct, self-adhesive, FD43
Code: 02183
Colour | Light grey |
Width, mm | 43 |
Halogen free | No |
Height, mm | 55 |
Flexible | Yes |
Type of side wall | Hole-/slot punching |
Self-extinguishing | Yes |
Length, mm | 500 |
Type of fastening | Self-adhesive and floor perforation |
Current leak stable | Yes |
Useful cross section, mm² | 1546.4 |

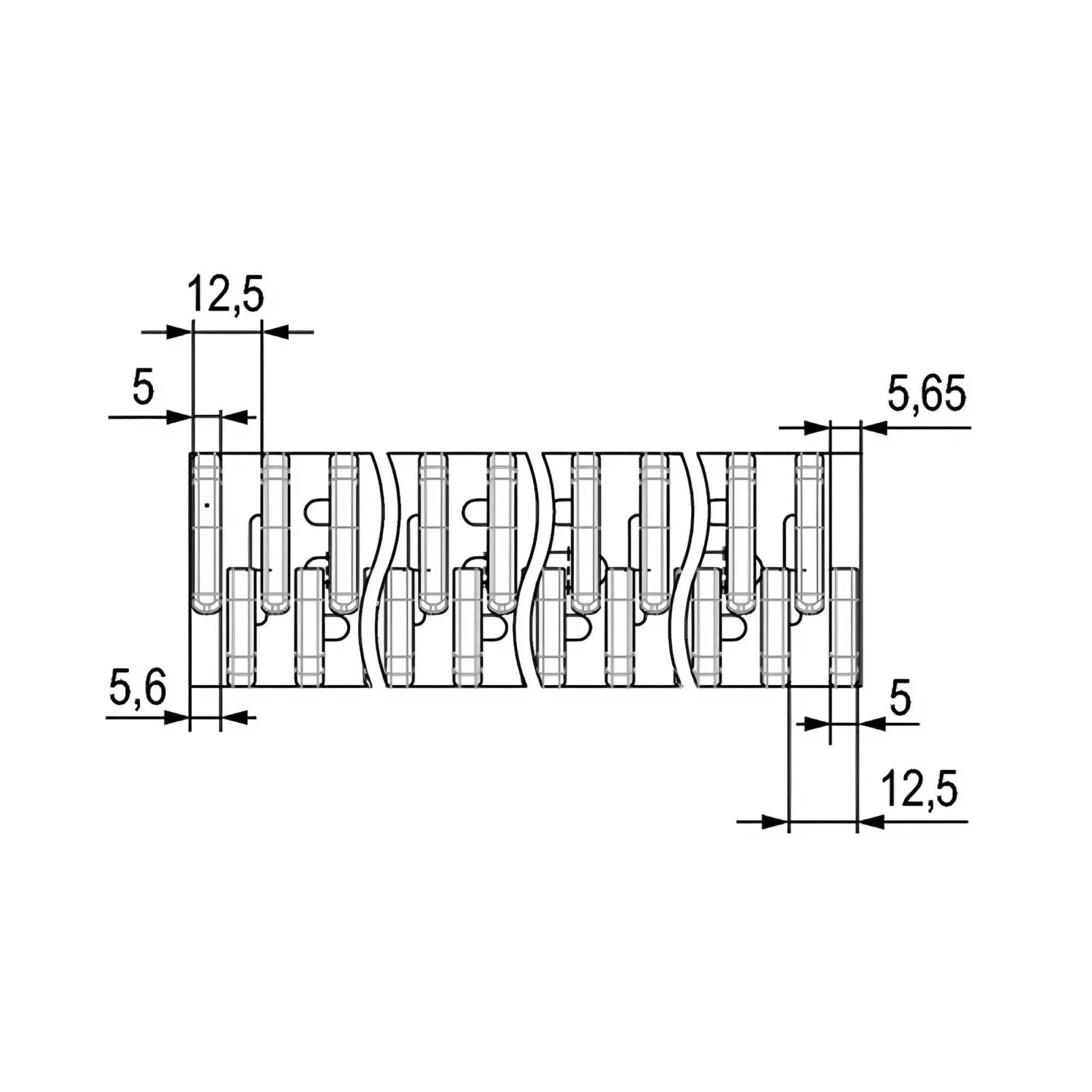

Distance of slots, mm | 12.5 |
Slit width, mm | 7.5 |
With cover | Yes |
Color | gray |
Material | PVC |

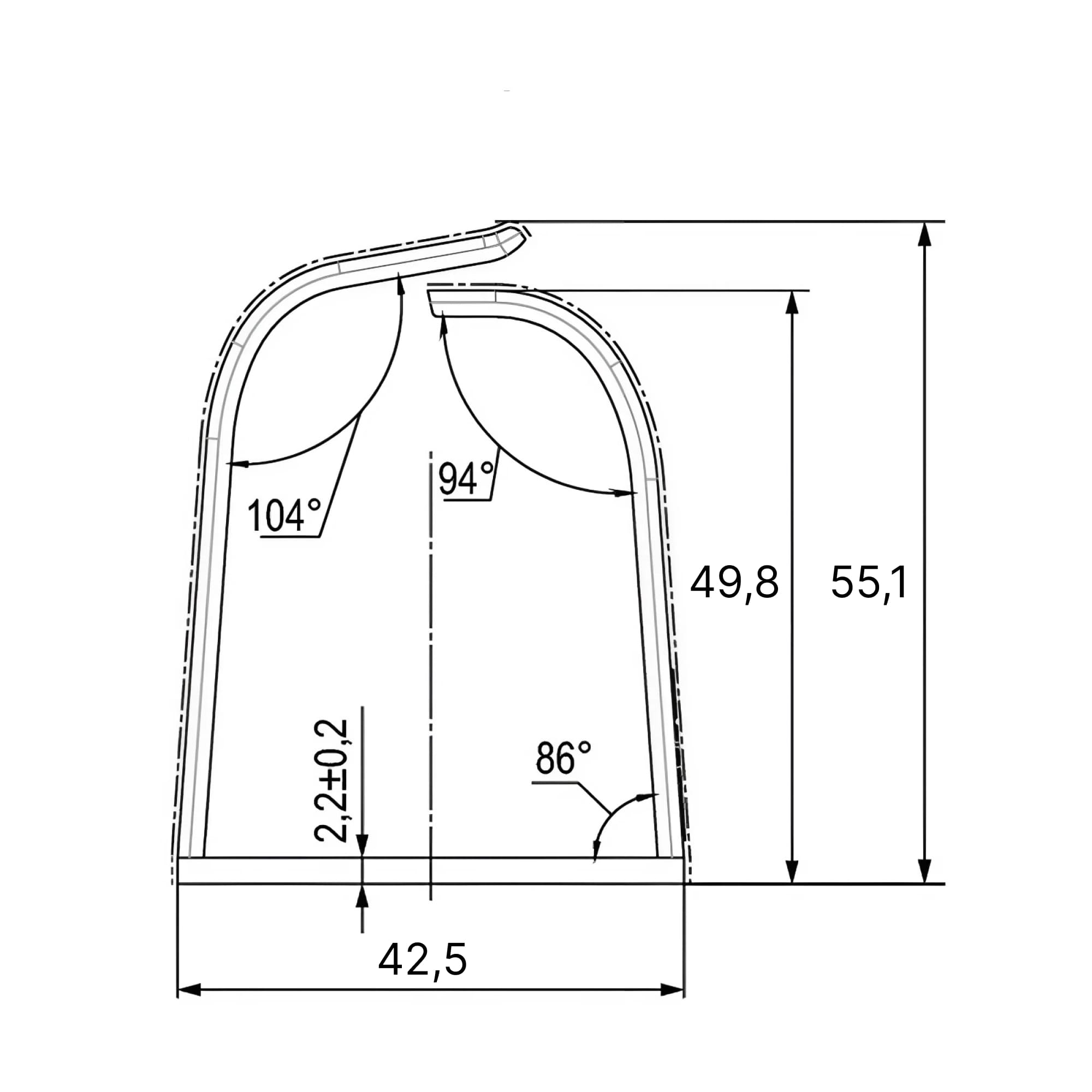

Height, mm | 48.5 |
Width, mm | 42.5 |
Length, mm | 500 |
Product type | Specialized perforated ducts |
Accessories
Drawings
Seria | Name | Eplan |
---|---|---|
Perforated ducts - "Quadro"
|
