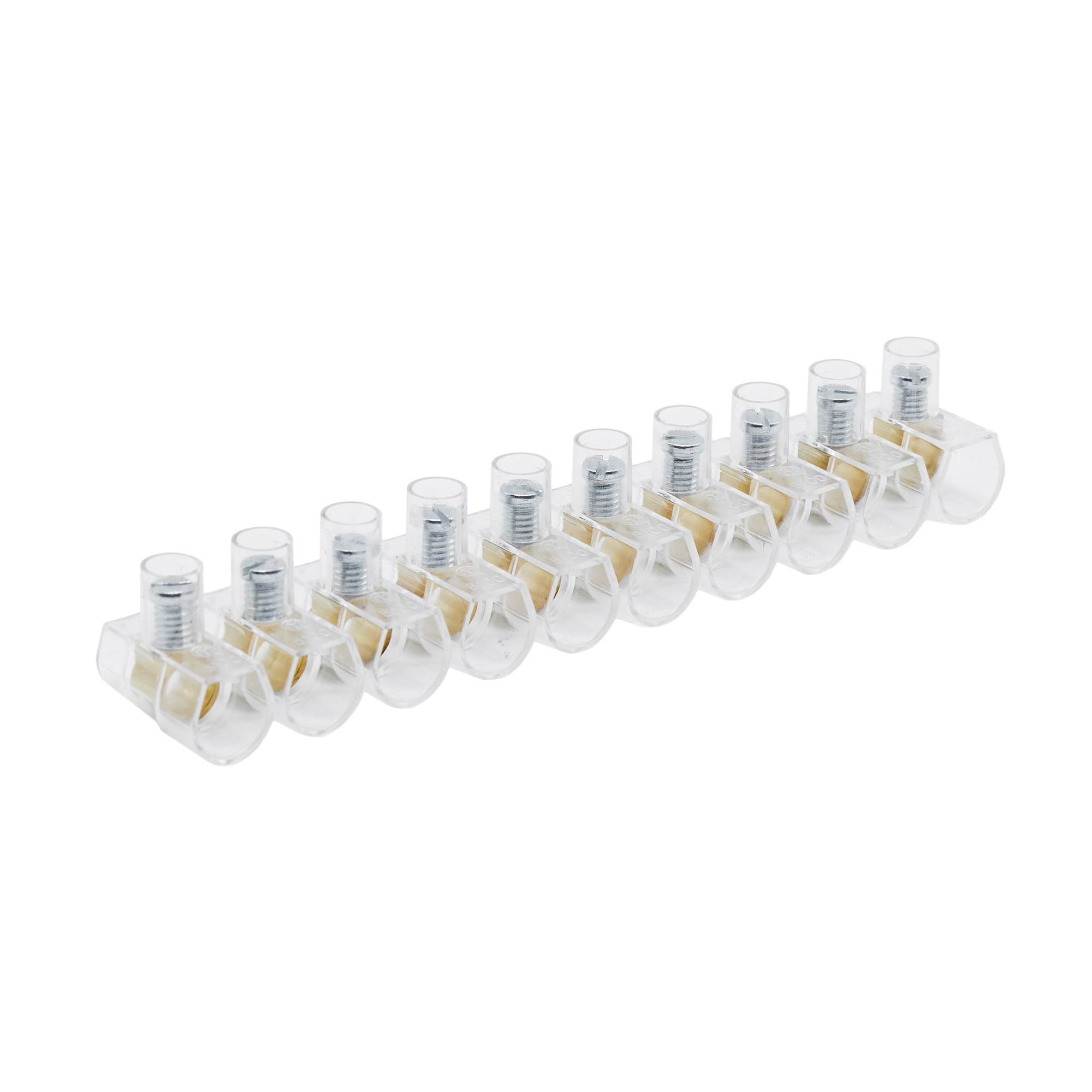

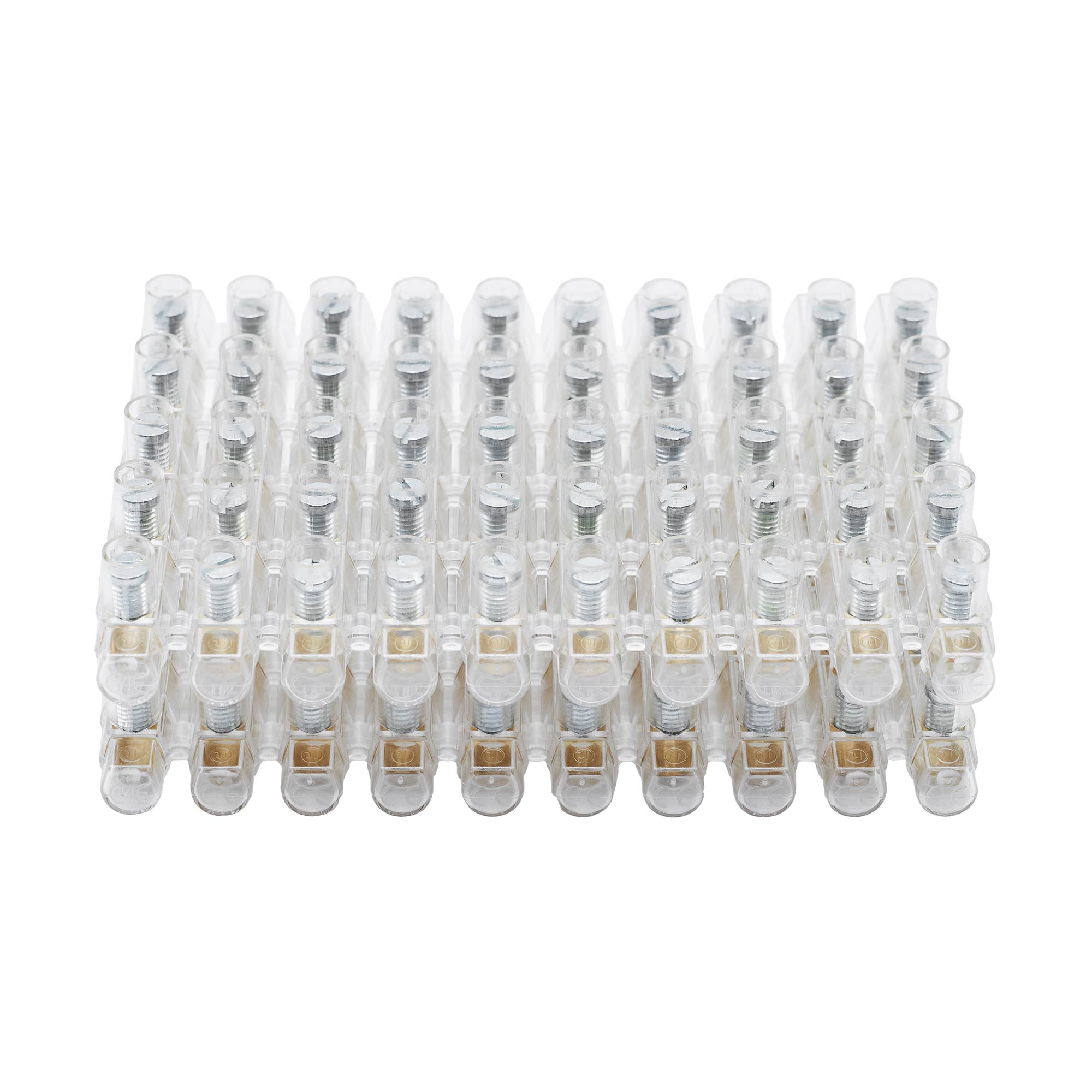

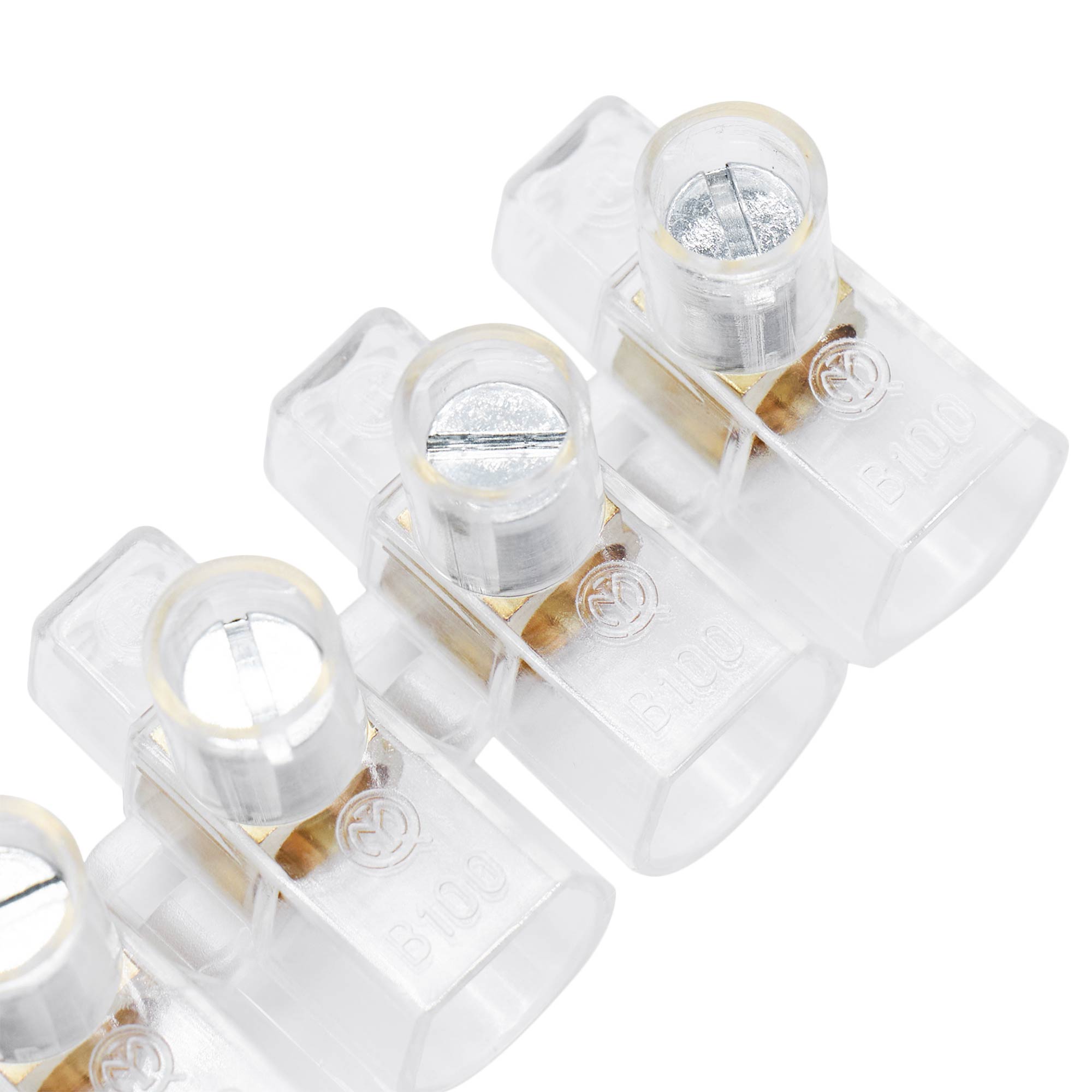

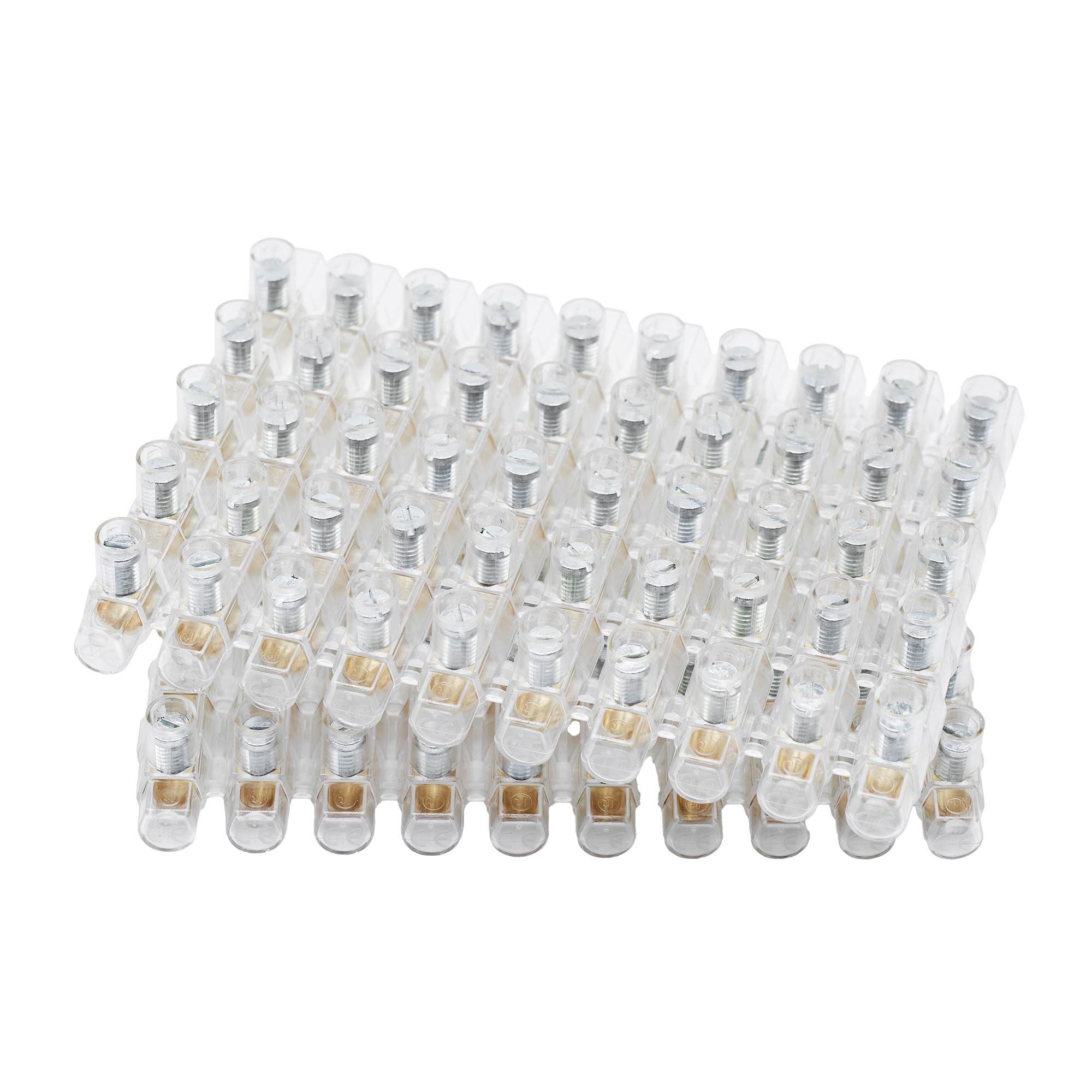

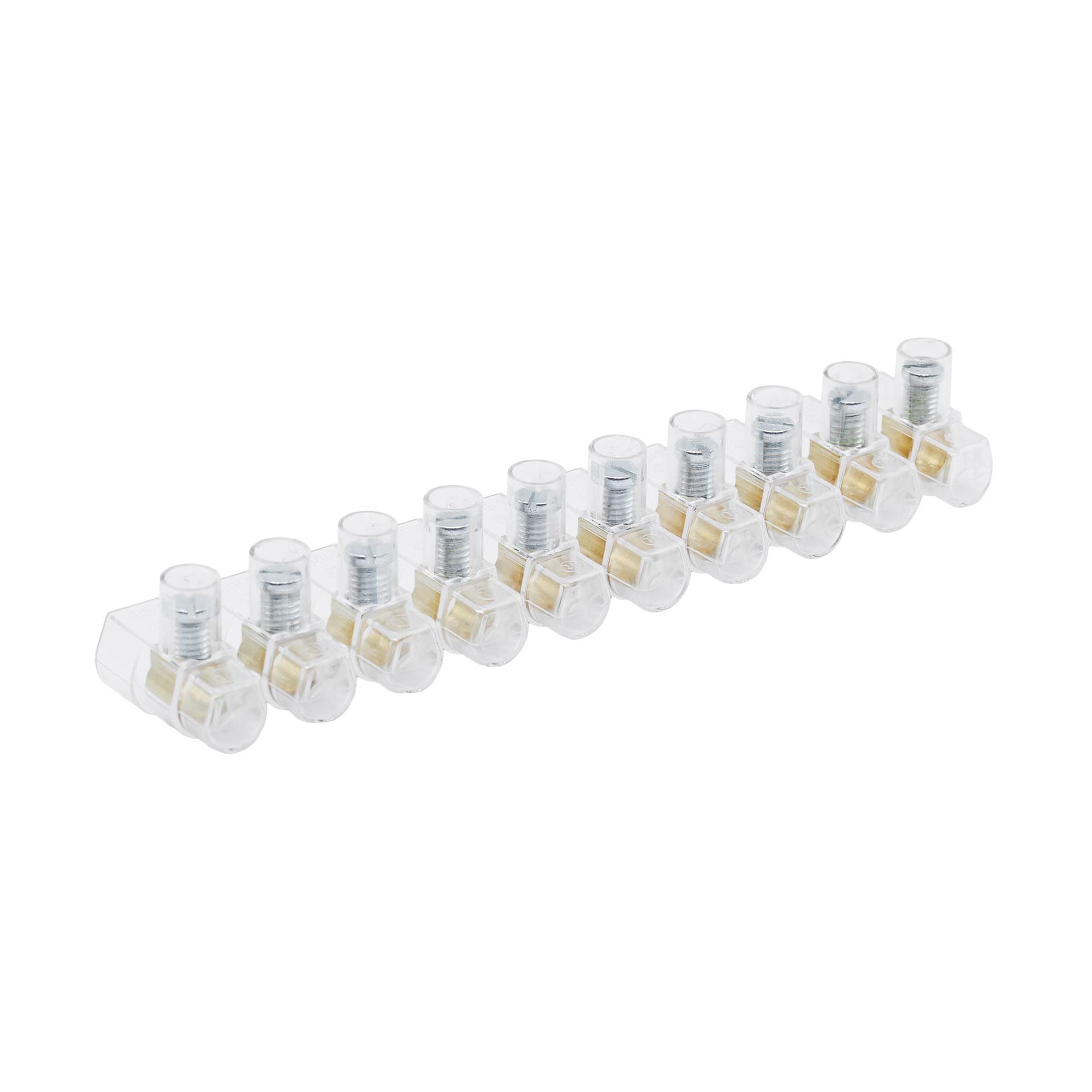

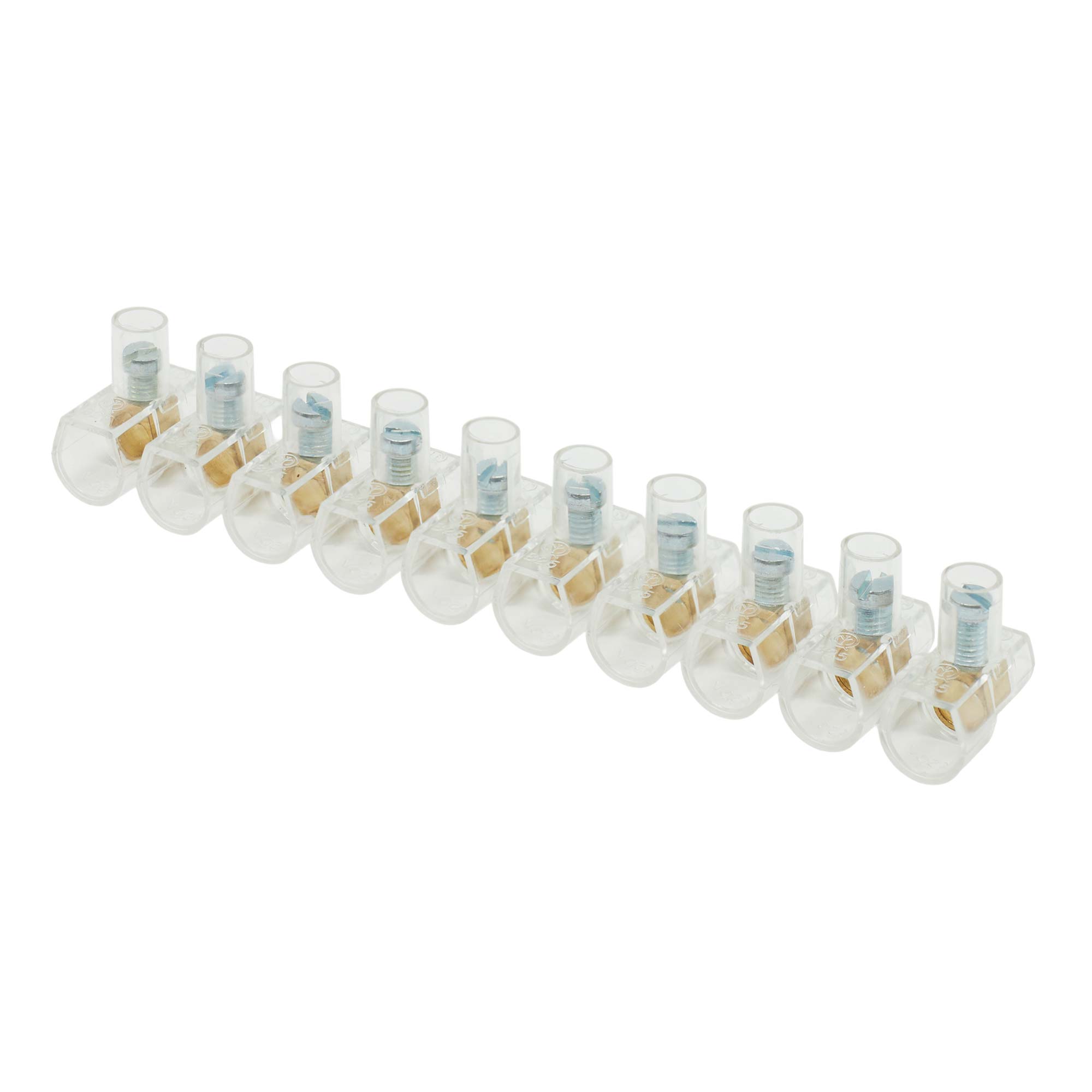

Unipolar terminal blocks 4mm
Code: B25
Unipolar terminal blocks 4mm
Code: B25
| Mounting method | Other |
| Colour | Other |
| Rated voltage, V | 450 |
| Number of poles | 1 |
| Length, mm | 18.5 |
| Operating temperature, °C | -5...85 |
| Number of clamp positions per pole | 1 |
| Width/grid dimension, mm | 20.0 |
| Closing plate required | No |
| Transparent | Yes |
| Connectable conductor cross section multi-wired, mm² | 1...2.5 |
| Explosion-tested version 'Ex e' | No |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Material insulation body | Other |
| Connection position | Sideways |
| Height at lowest possible mounting height, mm | 11.0 |
| Rated current In, A | 25 |
| Product type | Connecting terminal blocks |
