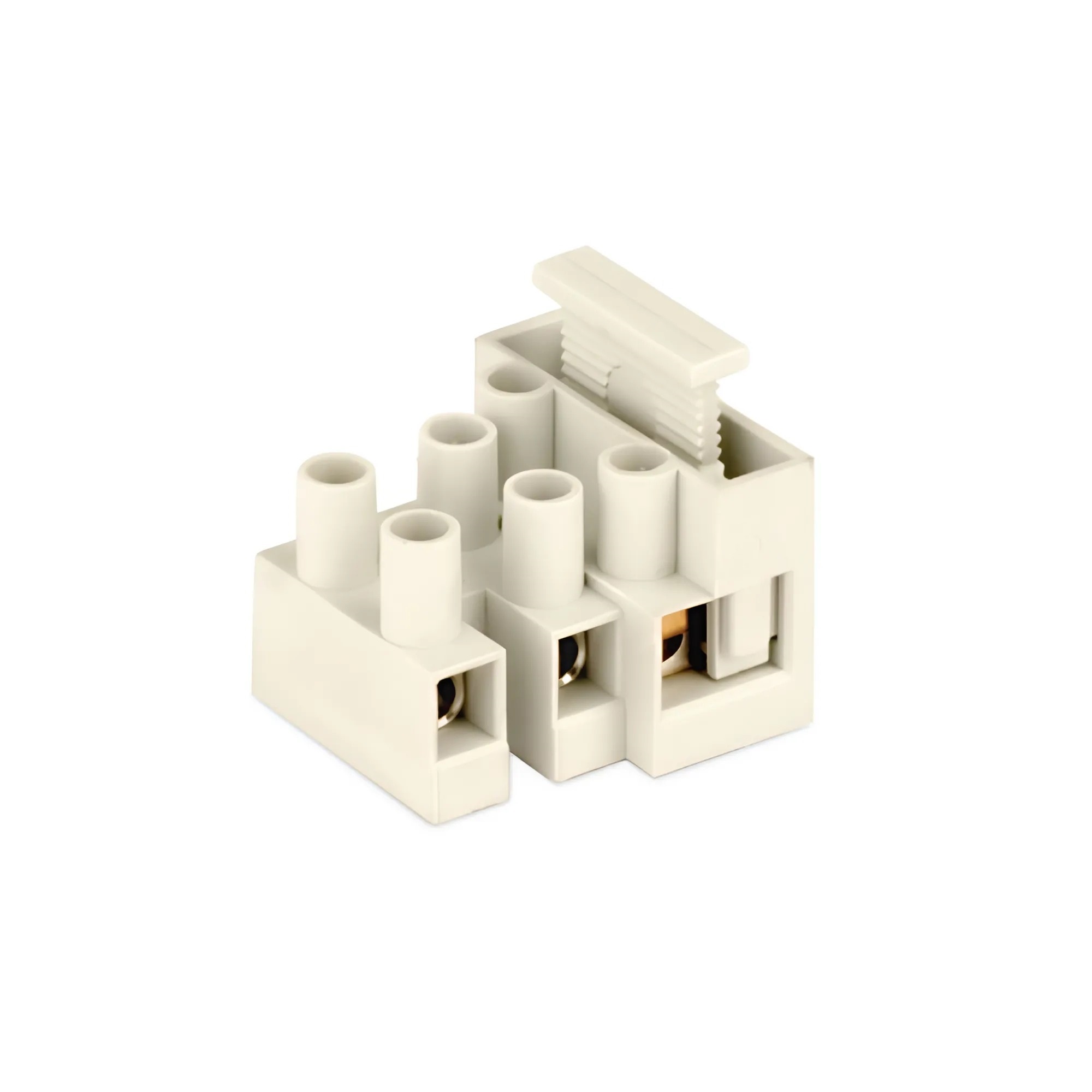

Terminal blocks 2p+1 holder ,450V, 32A, 4mm²
Code: 1332
Terminal blocks 2p+1 holder ,450V, 32A, 4mm²
Code: 1332
| Mounting method | Direct mounting |
| Colour | White |
| Rated voltage, V | 450 |
| Number of poles | 2 |
| Length, mm | 41.0 |
| Operating temperature, °C | -5...125 |
| Number of clamp positions per pole | 2 |
| Closing plate required | No |
| Transparent | Yes |
| Connectable conductor cross section multi-wired, mm² | 1...4 |
| Rated current In, A | 32 |
| Explosion-tested version 'Ex e' | No |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Other |
| Connection position | Sideways |
| Product type | Terminal Blocks with fuse link |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Terminal blocks - "Quadro"
|
