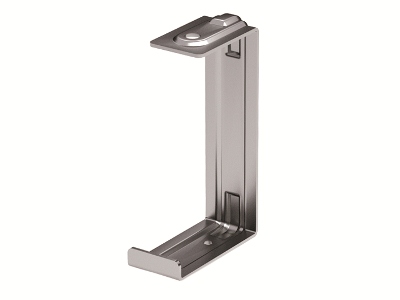

Overhead bracket CS, L50, thickness 3,0 mm, ZL
Code:
BBA1005ZL
Overhead bracket CS, L50, thickness 3,0 mm, ZL
Code:
BBA1005ZL
Model | Face out bracket (C-bracket) |
Material | Steel |
Load bearing capacity, N | 666.4 |
Suitable for wire mesh tray | Yes |
Suitable for cable ladder | Yes |
Suitable for cable tray | Yes |
Tray mounting | Screwable |
Suitable for circuit integrity | No |
Width, mm | 50 |
Length, mm | 68 |
Thickness of metal sheet, mm | 3 |
Type | Brackets |
Material | Zinc-lamellated steel |
Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
