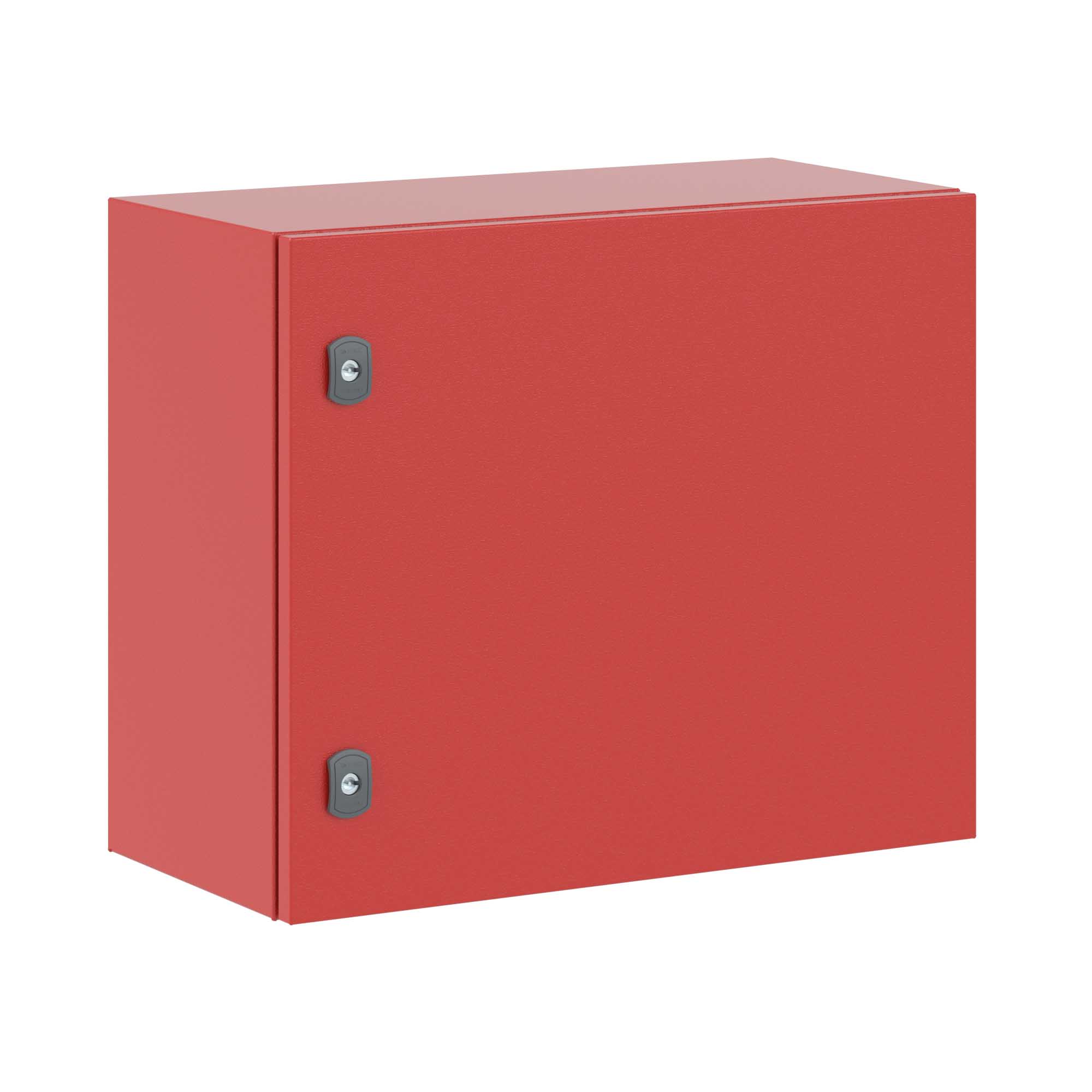

Hinged box ST with MP HxWxD 500x600x300 mm RAL3020
Code: R5ST0563-RAL3020
Hinged box ST with MP HxWxD 500x600x300 mm RAL3020
Code: R5ST0563-RAL3020
Colour | Red |
Width, mm | 600 |
Height, mm | 500 |
Depth, mm | 300 |
RAL-number | 3020 |
With mounting plate | Yes |
Number of doors | 1 |
Number of locks | 2 |
Material | Steel |
Impact strength | IK10 |
Degree of protection (IP) | IP66 |
Suitable for outdoor set-up | Yes |
Mounting plate depth-adjustable | Yes |
Wall fastening possible | Yes |
Surface finishing | Powder coating |
Pole fastening | Yes |
Drawings
Seria | Name | Insulation cut out | Eplan |
---|---|---|---|
Metal enclosures - "RAMblock"
|
|
||
Metal enclosures - "RAMblock"
|
|
Certificates
Name | Document |
---|---|
