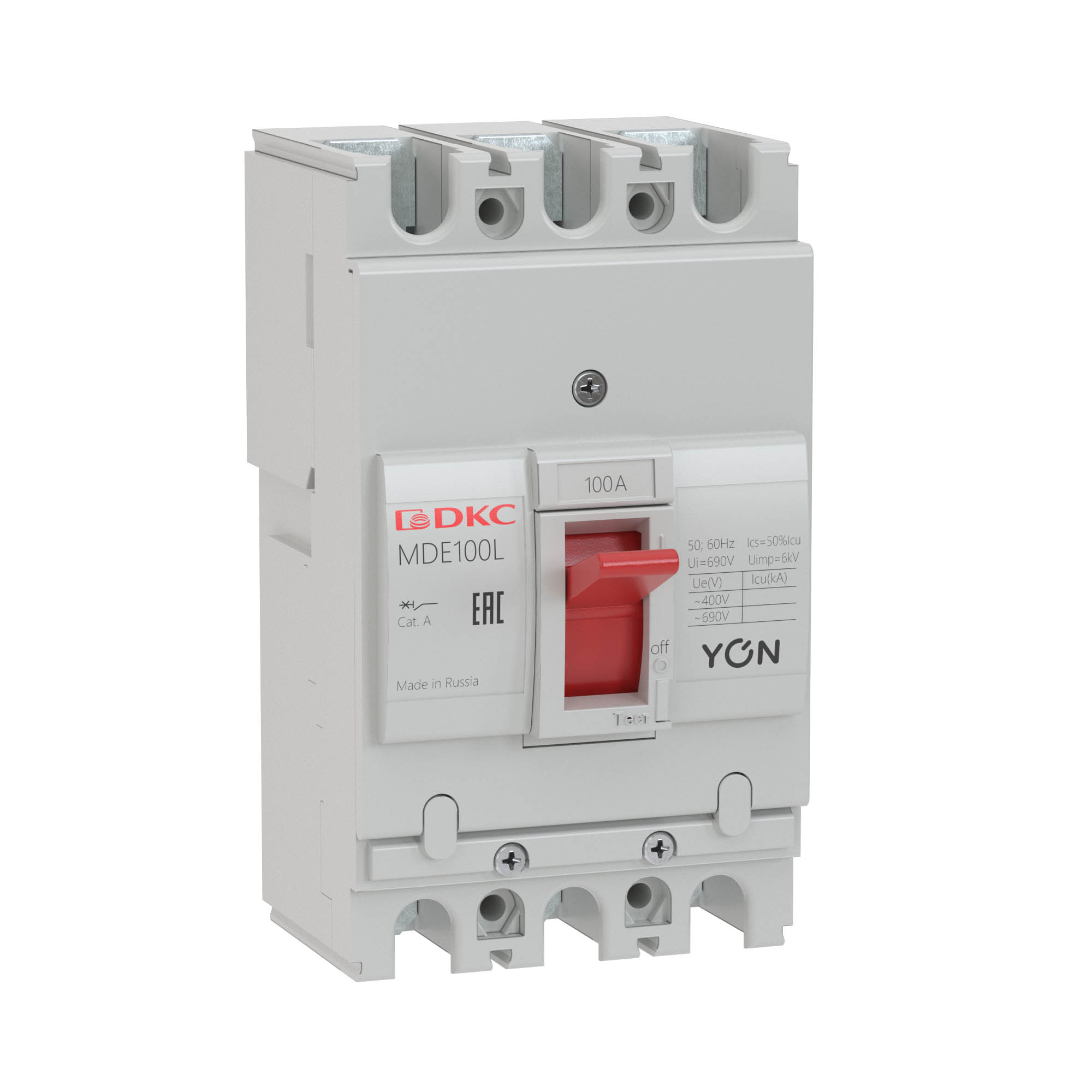

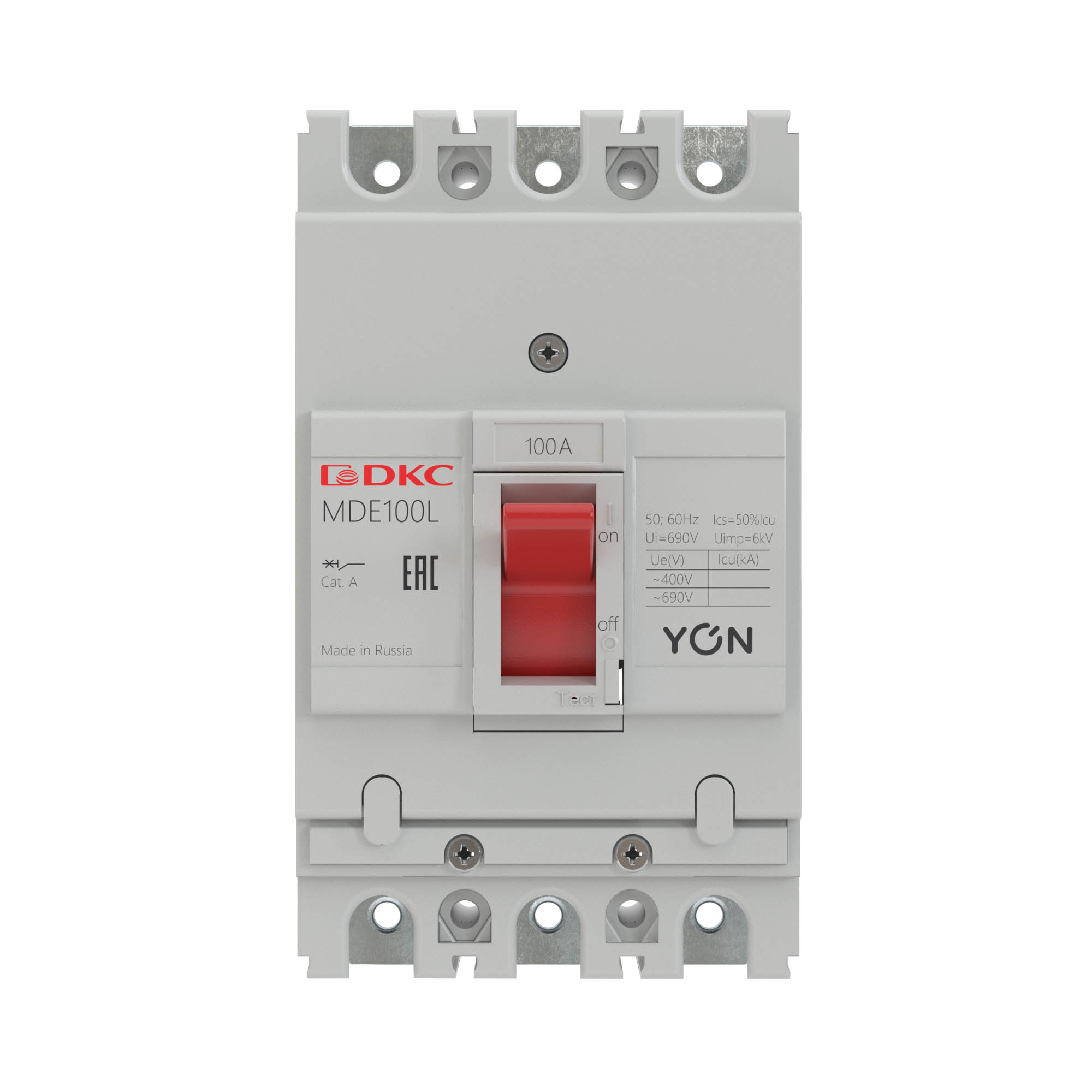

Molded case circuit breaker YON MDE100N040
Code:
MDE100N040
Molded case circuit breaker YON MDE100N040
Code:
MDE100N040
Rated permanent current Iu, A | 40 |
Number of poles | 3 |
Overload release current setting, A | 40 |
Degree of protection (IP) | IP20 |
Type of electrical connection of main circuit | Screw connection |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, kA | 20 |
Suitable for DIN rail (top hat rail) mounting | No |
Motor drive optional | No |
With under voltage release | No |
Device construction | Built-in device fixed built-in technique |
Type of control element | Rocker lever |
DIN rail (top hat rail) mounting optional | Yes |
Rated current In | 40 A |
Q'ty of poles | 3 |
Type release | Thermal and electromagnetic |
Breaking Capacity Limit Icu | 20 kA |
Regulation of currents in the overload zone | No |
Regulation of currents in the short-circuit zone | No |
