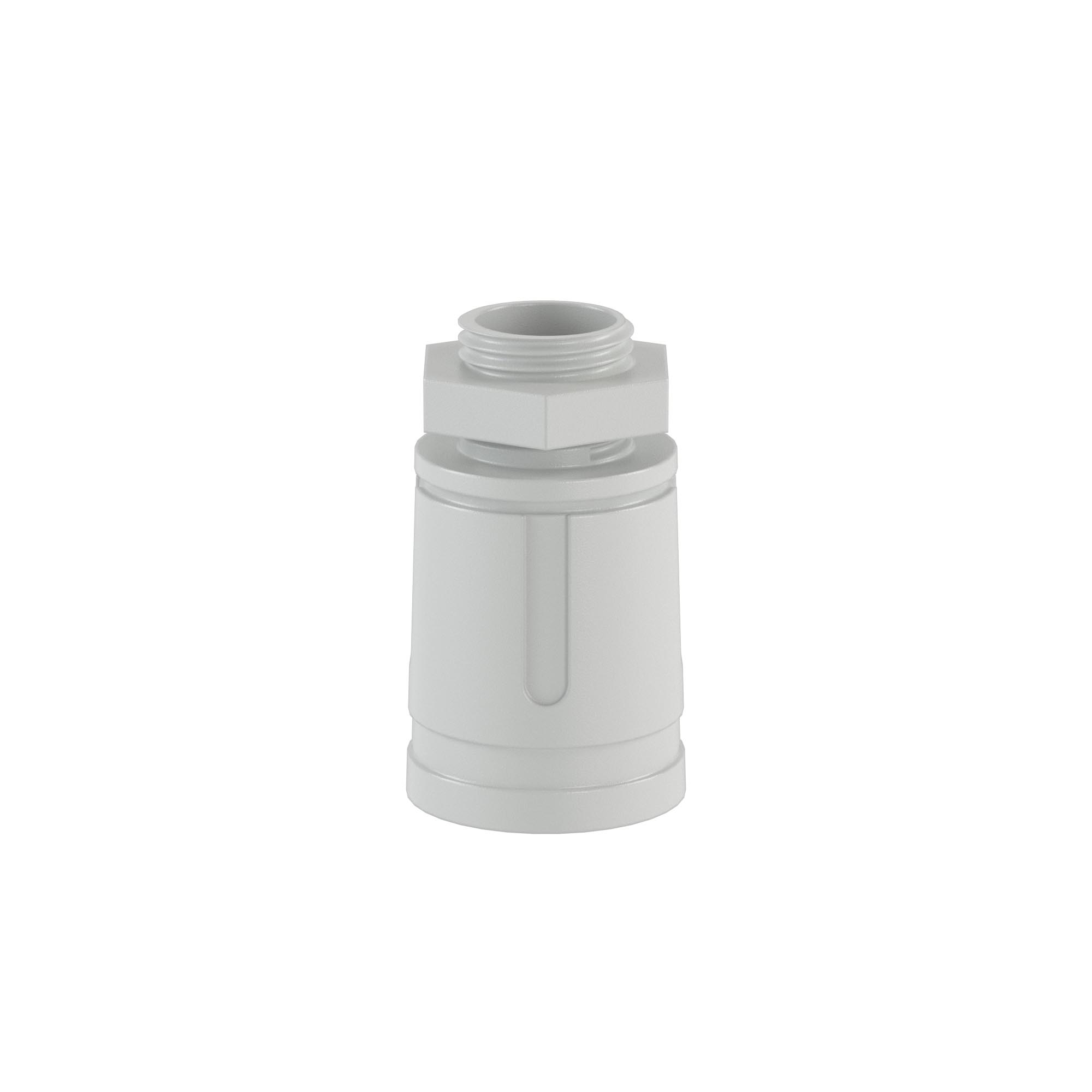

Coupling tube-box, IP67, М16х1.5, Ø 16mm
Code: 50216
Coupling tube-box, IP67, М16х1.5, Ø 16mm
Code: 50216
Colour | Light grey |
Model | Straight |
Shock resistant | Yes |
Wrench width, mm | 22 |
Thread length, mm | 12 |
Type of sealing | Sealing ring |
Operational temperature, °C | -25...60 |
Thread type | Metric |
Material | Plastic |
Explosion-tested version | Yes |
Flat cable coupling | Yes |
Multi seal area | Yes |
With locknut | Yes |
Hexagon angular dimension, mm | 22 |
Separable screw gland | Yes |
Suitable for cable diameter, mm | 16 |
Degree of protection (IP) | IP67 |
For Ex-zone gas | None |
Nominal thread size metric/PG | 16 |
For Ex-Zone dust | None |
Halogen free | Yes |
Color | gray |
-5°С ... +60°С | -25°С ... +60°С |
Ingress Protection rating, IP | IP67 |
от -25°С до +60°С | from -40°С to +60°С |
Threading | М16х1,5 |
Product type | Conduit-box coupling |
ТУ 2248-012-47022248-2009 | Technical specifications 2248-012-47022248-2009 |
3 года | 3 years |
15 лет | 15 years |
The accompanying goods
Certificates
Name | Document |
---|---|
