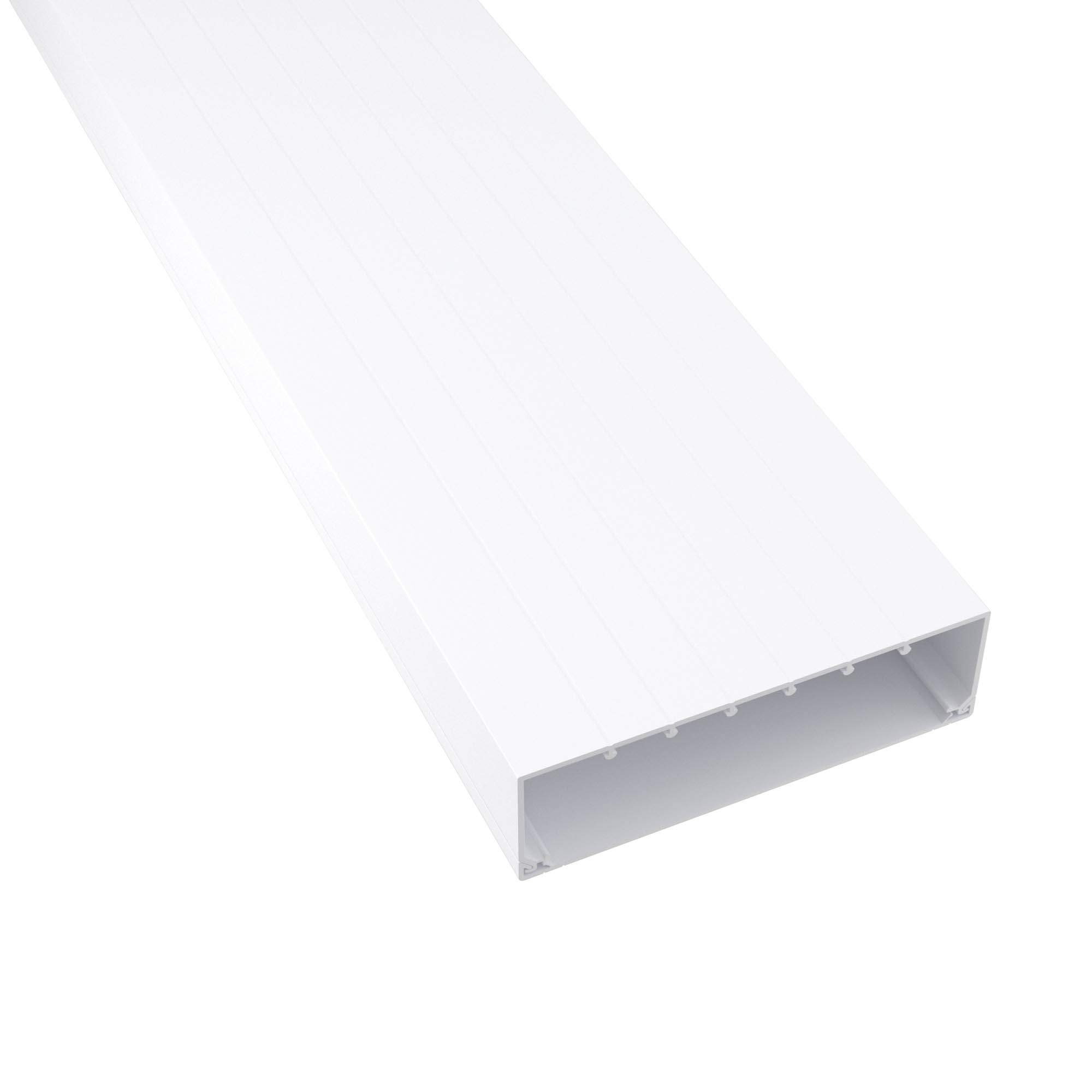

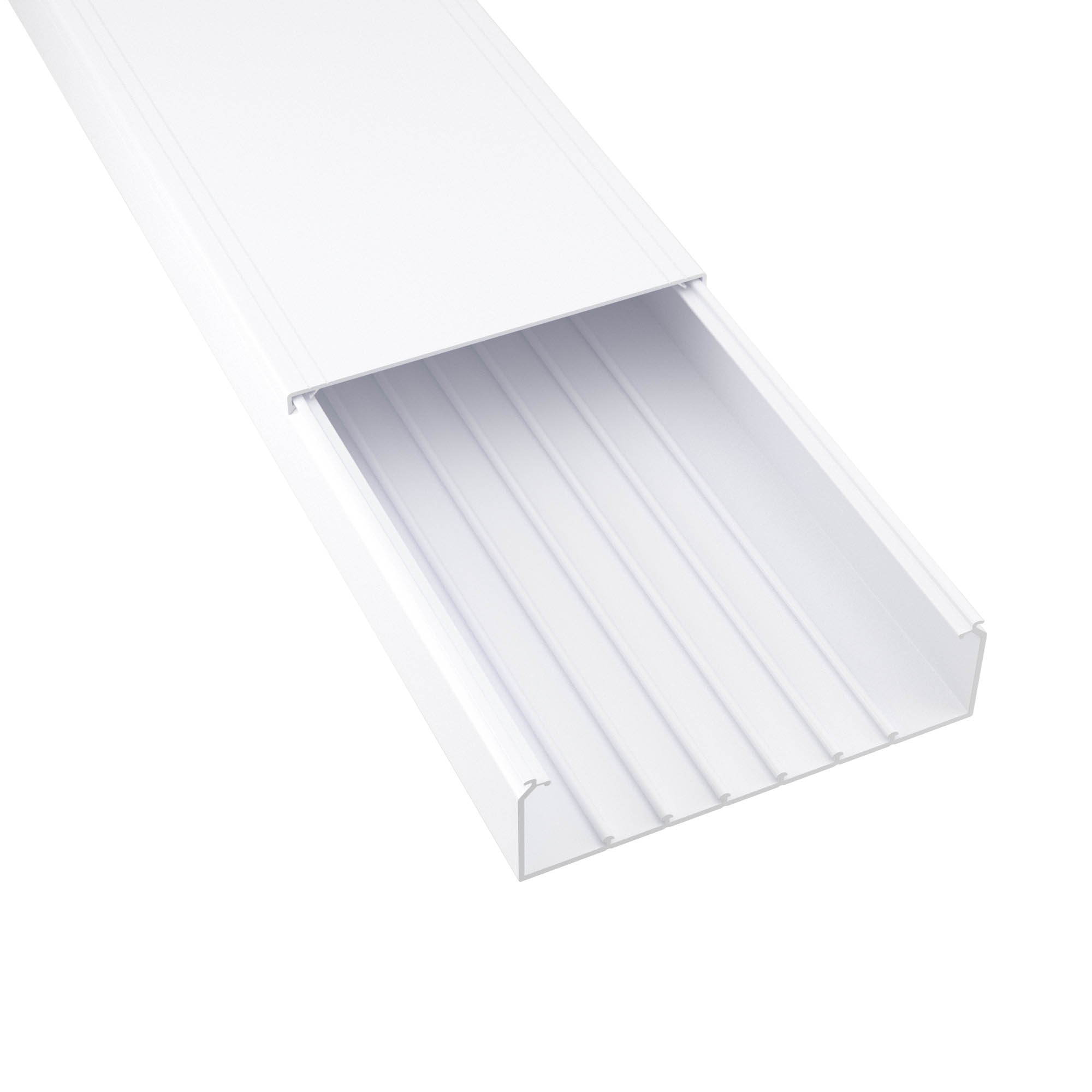

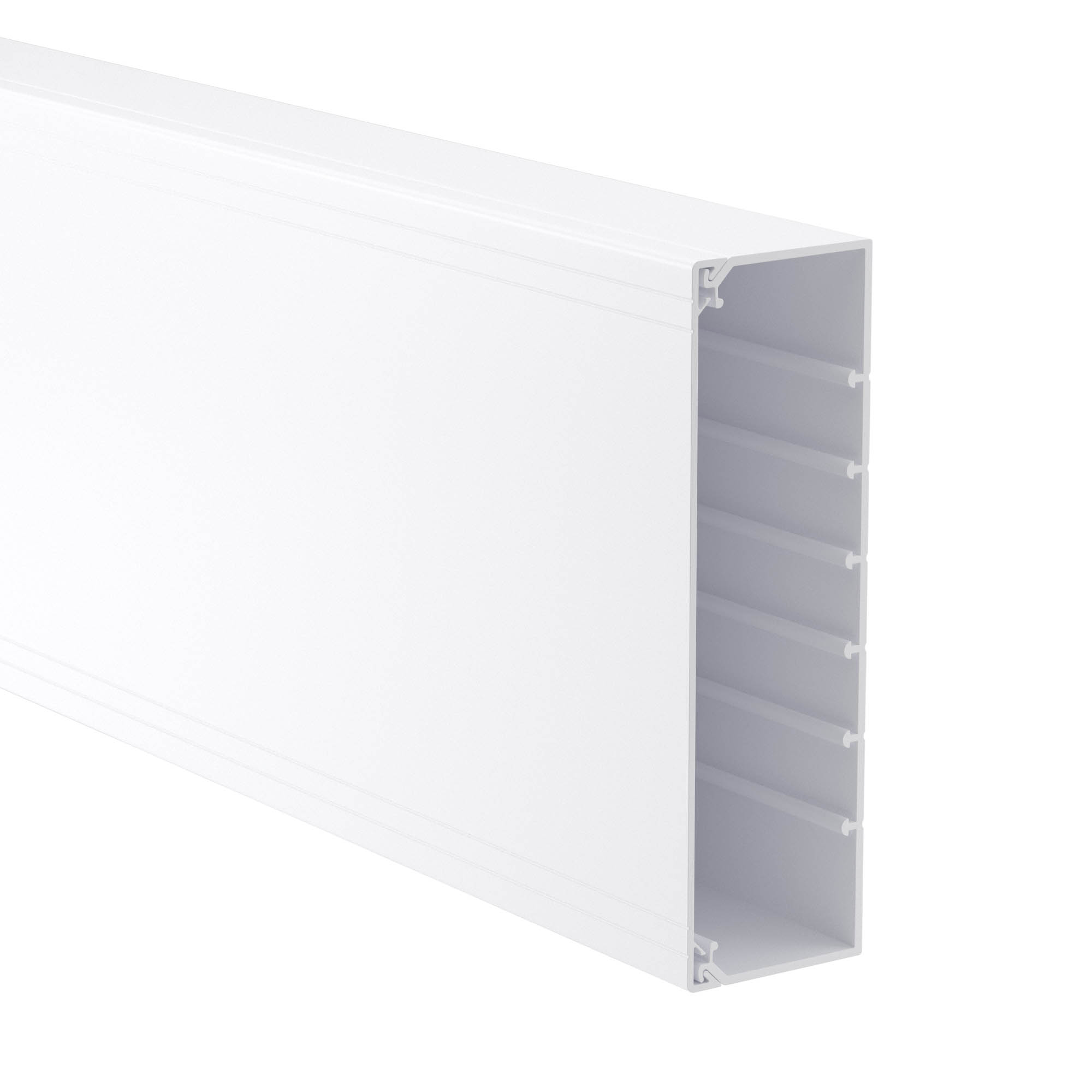

TA-GN 200x60 Cable trunking with cover, white

Code: 01789

TA-GN 200x60 Cable trunking with cover, white

Code: 01789
Colour Pure white

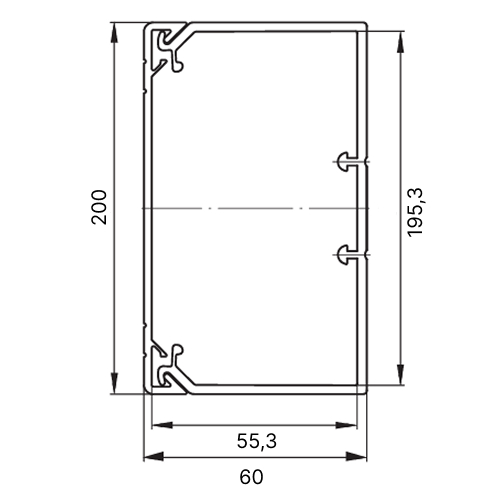

Width, mm 200
Depth, mm 60
Material quality Polyvinyl chloride (PVC)
Length, mm 2000
Material Plastic
Mounting method cover Inner lying
Number of covers 1
Number of plug-in partitions 6
Mounting perforation in bottom Yes
With cable fixing clip Yes
With duct connector Yes
Useful cross section, mm² 10532
Cover width 1, mm 200
With protection film Yes
Symmetric Yes
Construction type rectangular Yes
Covers supplied with the product Yes
Material PVC
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 200
Ingress Protection rating, IP IP40
Average filled area, sq.mm 10532
Summarized profile area (max), sq.mm 10532
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 6
Climate version UHL4
Q'ty of bays 1
Voltage of disruption, V More 2500
Height (nominal), mm 60
Self-glueing base false
Product type Cable duct with a cover
