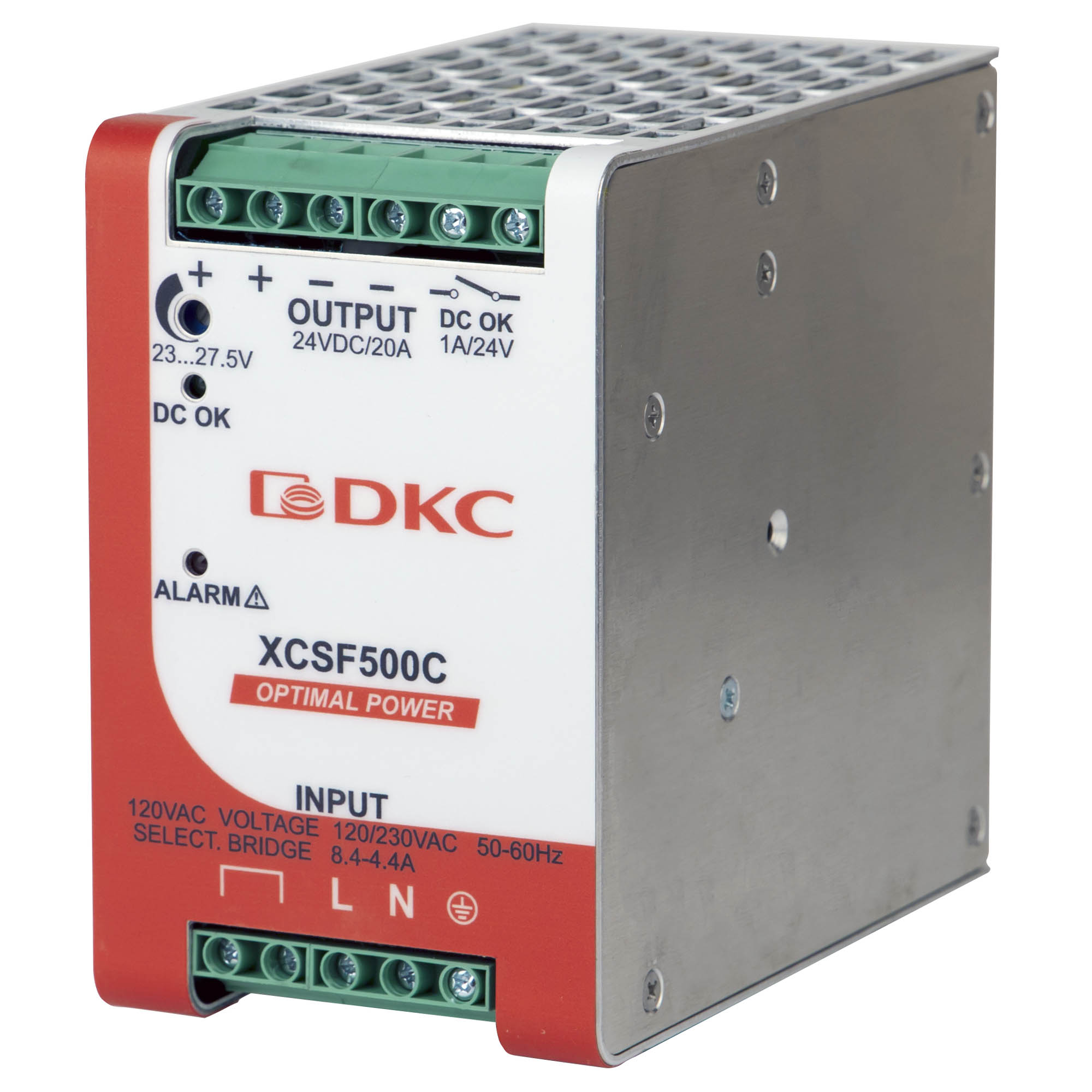

Switch mode power supply "OPTIMAL POWER", single phase, 500W, 20A, 24V
Code: XCSF500C
Switch mode power supply "OPTIMAL POWER", single phase, 500W, 20A, 24V
Code: XCSF500C
| Mounting method | DRA (DIN-rail adapter) |
| Width, mm | 80 |
| Height, mm | 127 |
| Depth, mm | 139 |
| Number of lines to feed | 2 |
| Modular version | No |
| Max. output current | 35 |
| Voltage type of supply voltage | AC/DC |
| Power output, W | 500 |
| Output voltage stabilized | 24 |
| Rail mounting possible | Yes |
| Degree of protection (IP) | IP20 |
| With LED indication | Yes |
| 1st secondary output voltage, V | 24…28 |
| Secondary voltage adjustable | Yes |
| Rated supply voltage at AC 50 Hz, V | 120...230 |
| Rated supply voltage at AC 60 Hz, V | 120...230 |
| Rated supply voltage at DC, V | 100...370 |
| Short-circuit-proof | Yes |
| Max. output current 1, A | 20 |
| Max. output current 2, A | 22 |
| Max. output current 3, A | 35 |
| Type of electric connection | Screw connection |
| Max. electricity consumption | 4.1 |
| Operating temperature | -20...+60 |
| Nominal value output voltage 1, V | 24 |
| Nominal value output current 1, A | 20 |
| Number of phases | Single phase |
