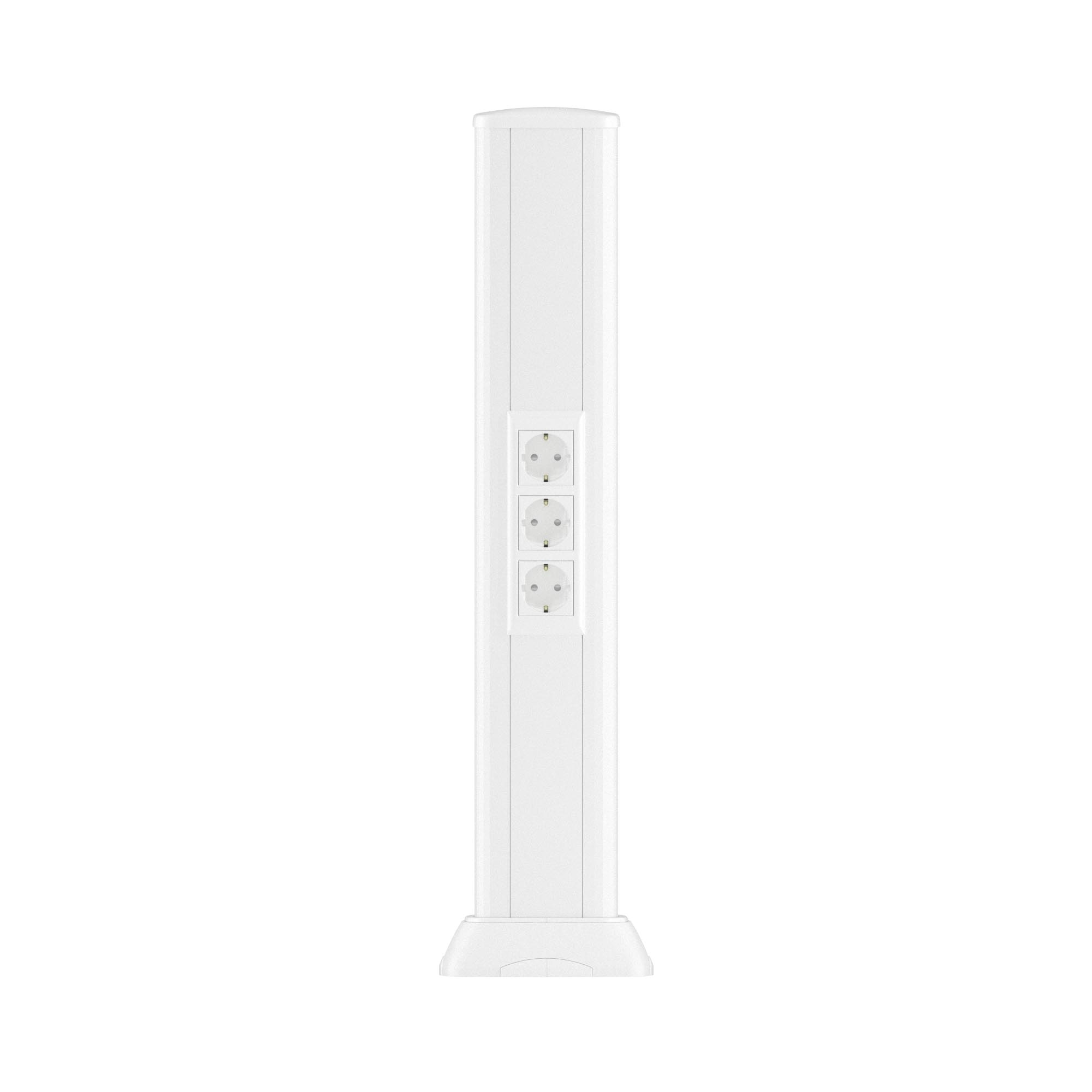

Column, aluminum, 0.71 m, white

Code: 09592

Column, aluminum, 0.71 m, white

Code: 09592
Model Other
Type of fastening Screwing
Adjustable No
Number of usable covers 2
Number of partitions 2…3
Cover width, mm 60

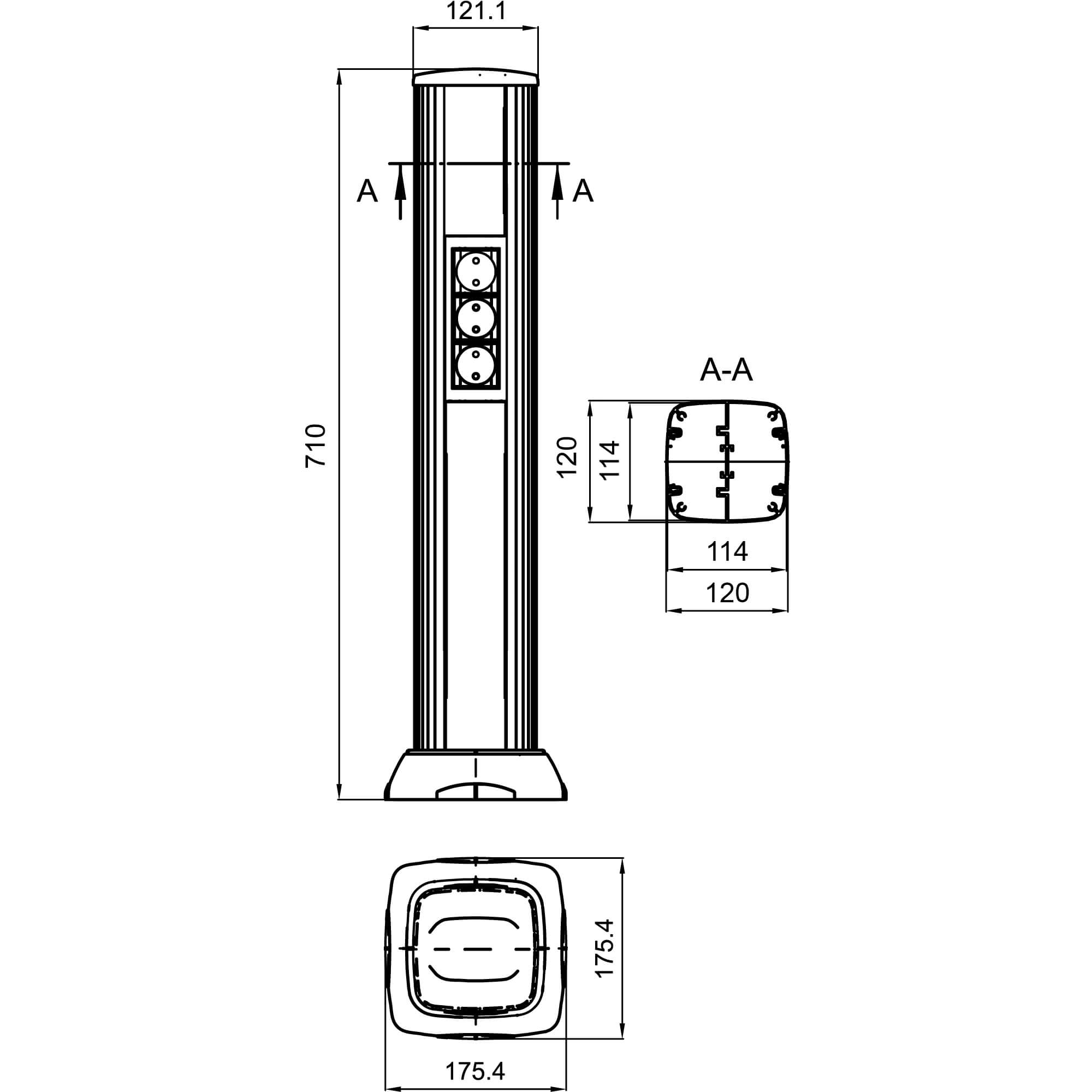

Column height, mm 710
Material installation column Aluminium
Material cover Aluminium
Ceiling mounting No
Pillar shape Rectangular
Colour cover Pure white
Colour column Pure white
RAL-number column 9016
Prewired No
Material installation column halogen free Yes
Material cover halogen free Yes
Material quality installation column Other
Colour White
Width (nominal), mm 120х120
Ingress Protection rating, IP IP40
Average filled area, sq.mm 4905+4905
Summarized profile area (max), sq.mm 9810
Temperature of operation, °C +60°C
Shock resistance, J 20
Climate version UHL4
Q'ty of bays 2
Height (nominal), mm 710
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Column
Type of groupe Aluminum column
