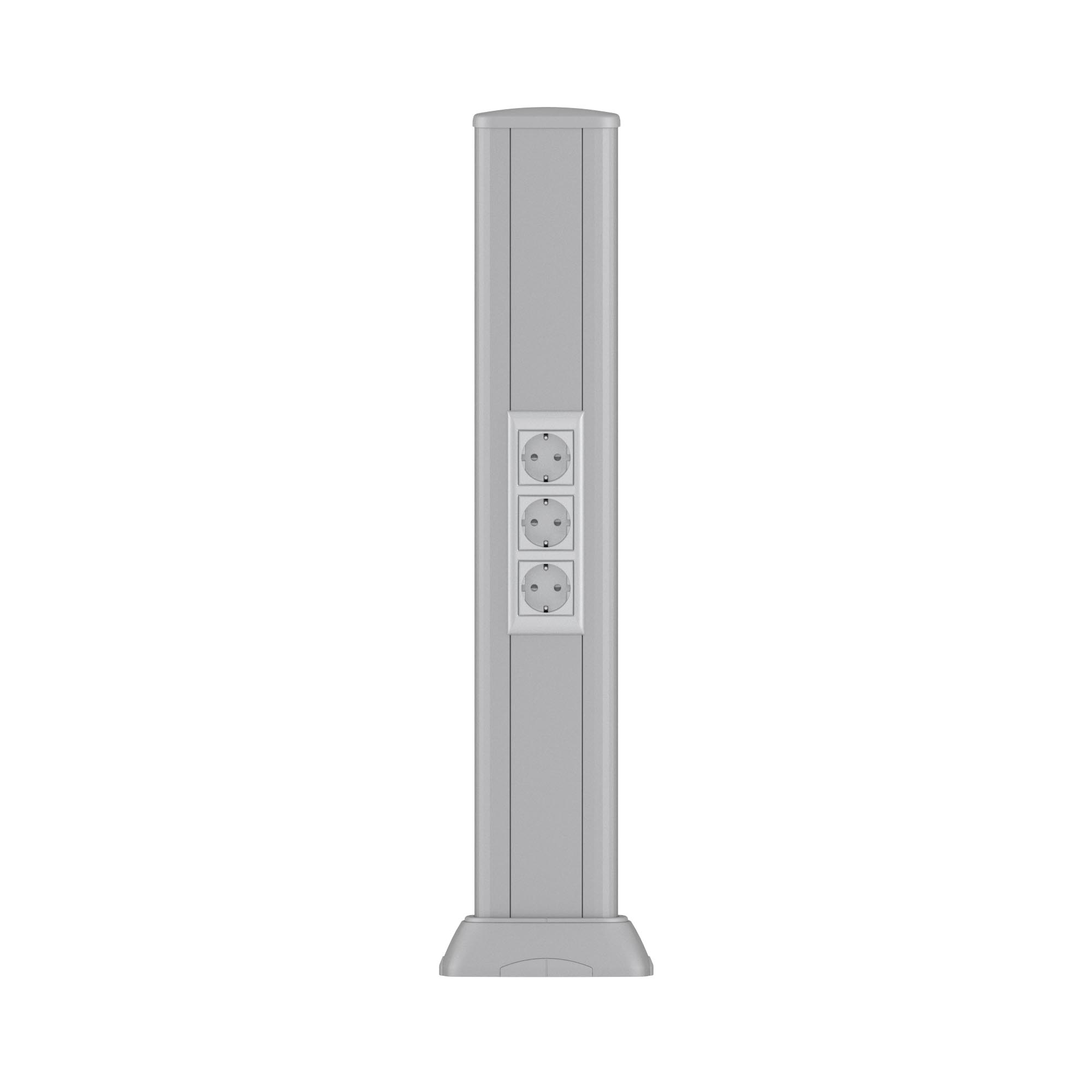

Column, aluminum, 0.71 m, space gray
Code: 09594
Column, aluminum, 0.71 m, space gray
Code: 09594
| Model | Other |
| Adjustable | No |
| Type of fastening | Screwing |
| Number of usable covers | 2 |
| Number of partitions | 2…3 |
| Cover width, mm | 60 |

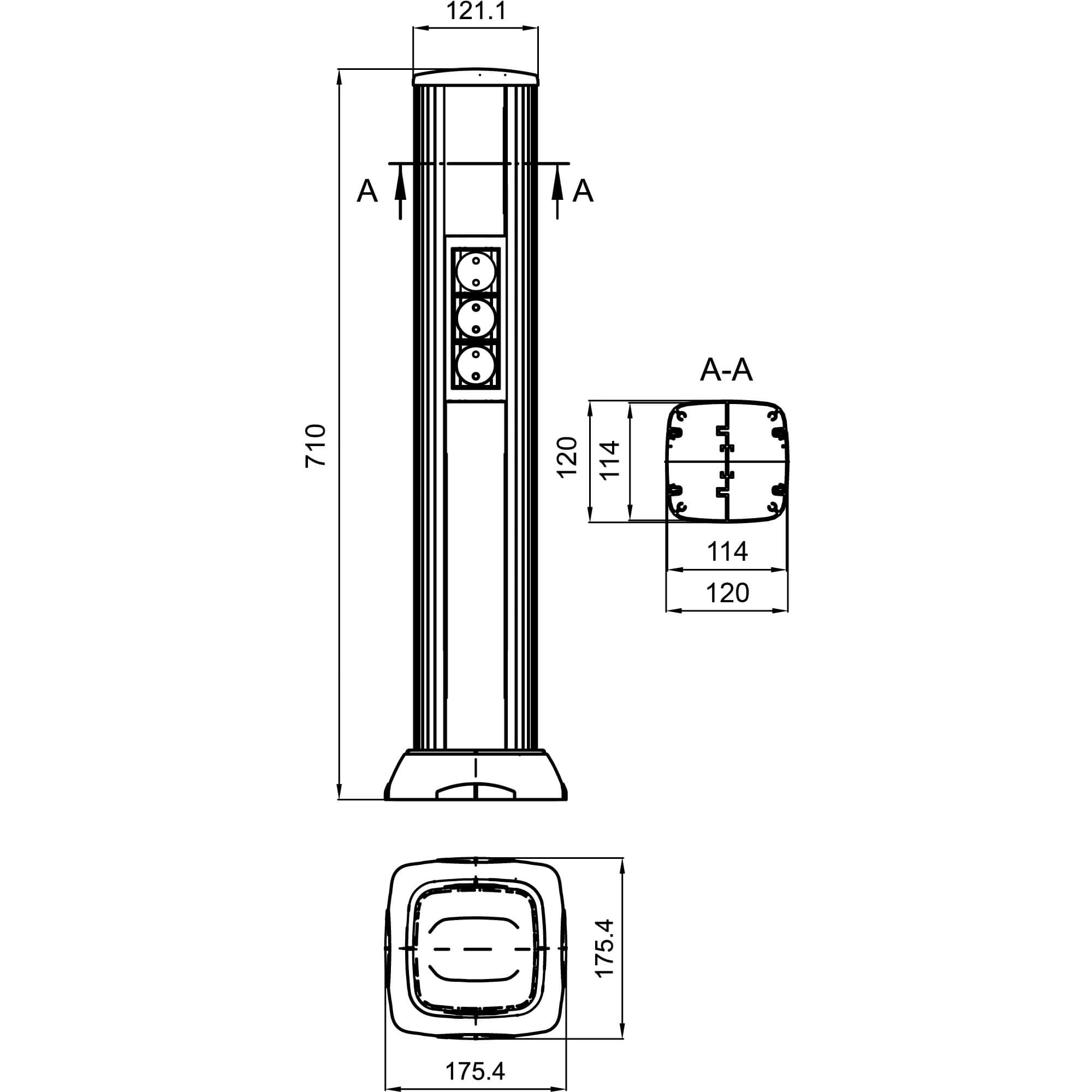

| Column height, mm | 710 |

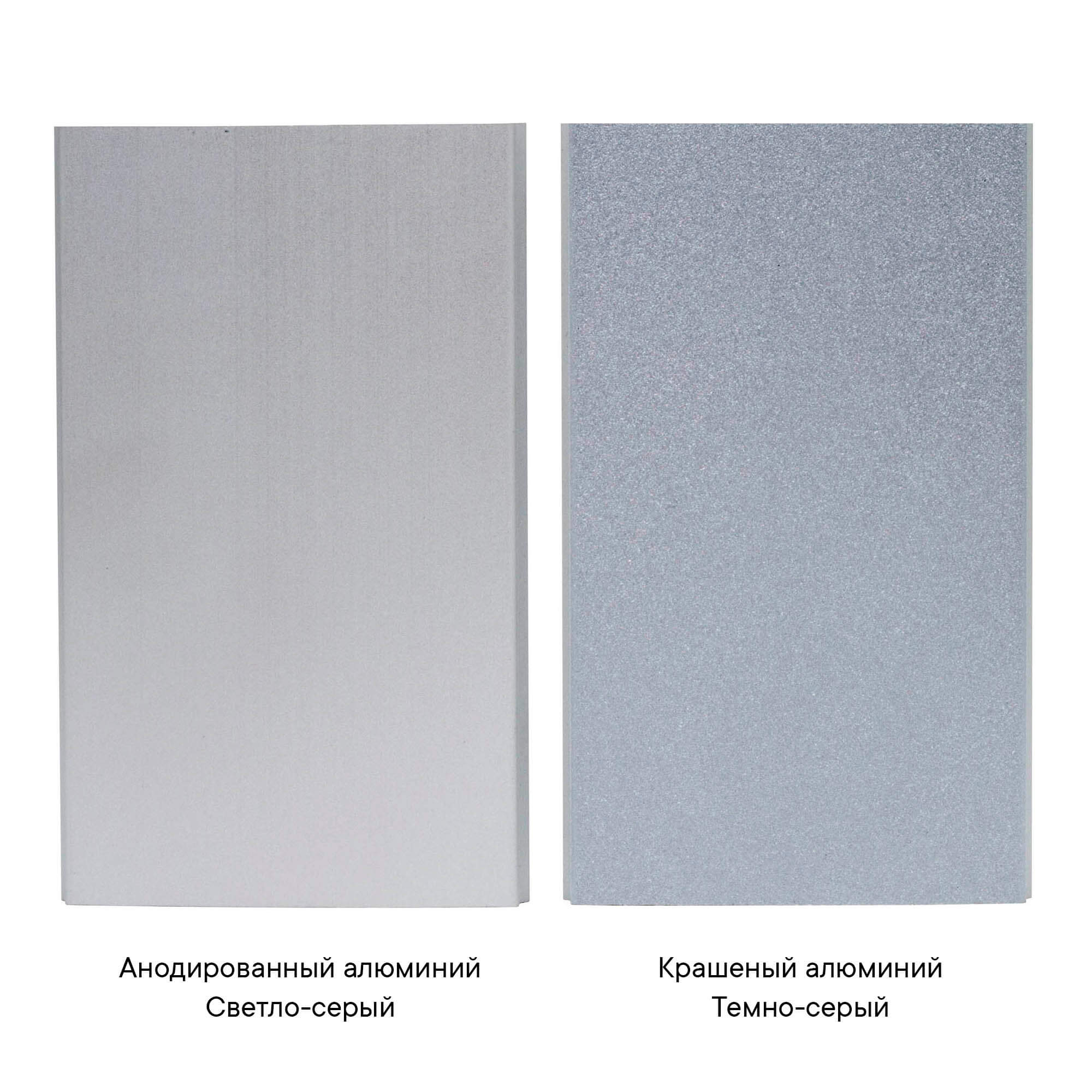

| Material installation column | Aluminium |
| Material cover | Aluminium |
| Ceiling mounting | No |
| Pillar shape | Rectangular |
| Colour cover | Stone grey |
| Colour column | Stone grey |
| Prewired | No |
| Material installation column halogen free | Yes |
| Material cover halogen free | Yes |
| Material quality installation column | Other |
| RAL-number column | 9006 |
| Colour | Dark silvery |
| Temperature of mounting, °C | 25С +60С |
| Width (nominal), mm | 120х120 |
| Ingress Protection rating, IP | IP40 |
| Average filled area, sq.mm | 4905+4905 |
| Summarized profile area (max), sq.mm | 9810 |
| Temperature of operation, °C | 25С +60С |
| Temperature of operation, °C | +60С |
| Shock resistance, J | 20 |
| Climate version | UHL4 |
| Q'ty of bays | 2 |
| Height (nominal), mm | 710 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
| Product type | Column |
| Type of groupe | Aluminum column |
