Mesh tray 100х100 L3000 inox

Code: FC1010INOX

Mesh tray 100х100 L3000 inox

Code: FC1010INOX
Width, mm 100
Model Without connector
Height, mm 100
Length, mm 3000
Material Steel
Wire diameter, mm 4
Integrated partition None
Useful cross section, mm² 10000
Profile shape U-shape
Stainless steel, pickled Yes
Wide span model Yes
Screwless connector Yes
Surface protection Bare
Product type Straight elements
Length 3000 mm
Width 100 mm
Height 100 mm
Material Stainless steel
Type Metal wire mesh trays - "F5 Combitech"
Accessories

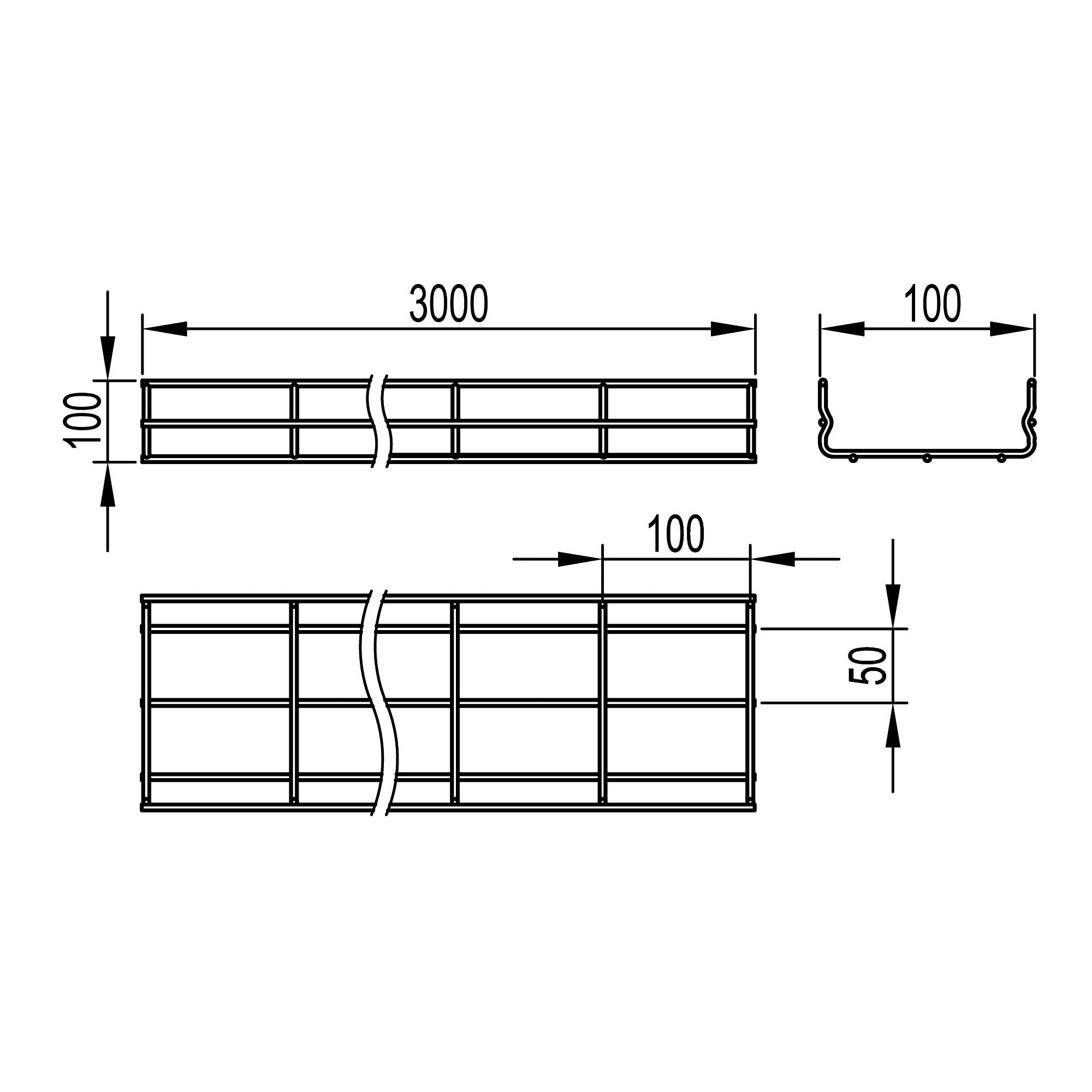

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Certificates
Name Document
