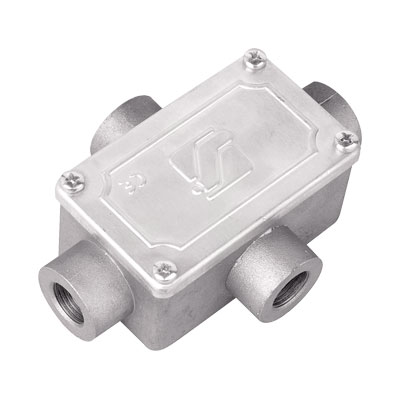

Alluminium alloy box 4 ways M20x1,5, IP55, 118x83x42 mm
Code: 6430-20
Alluminium alloy box 4 ways M20x1,5, IP55, 118x83x42 mm
Code: 6430-20
Mounting method | Universal |
Colour | Grey |

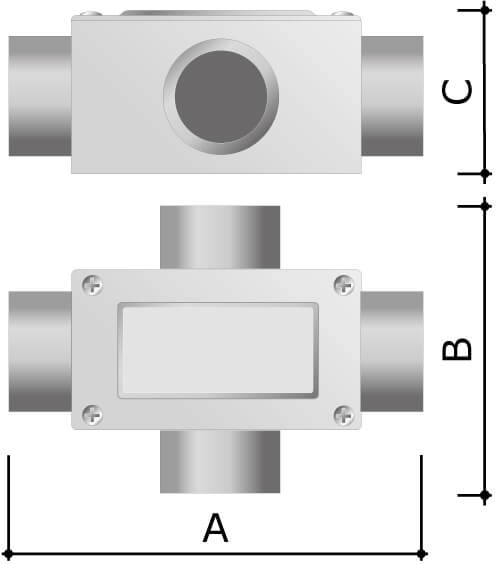

Width, mm | 83 |
Depth, mm | 42 |
Length, mm | 118 |
Sealable | Yes |
Material | Aluminium |
Number of inlets | 4 |
Cover attachment | Screwed |
Weatherproof | Yes |
Degree of protection (IP) | IP55 |
Shape | Rectangular |
For tube diameter | 20 mm |
Type of housing feed-through | Thread |
Equipped with | None |
Surface protection | Untreated |
Product type | Junction boxes |
Material | PVC |
Height, mm | 118 |
Width, mm | 83 |
Temperature of mounting, °C | -25 ... +70 °С |
Ingress Protection rating, IP | IP55 |
Temperature of operation, °C | from -25 to +70 °С |
Depth, mm | 42 |
Threading | M20 x 1,5 |
