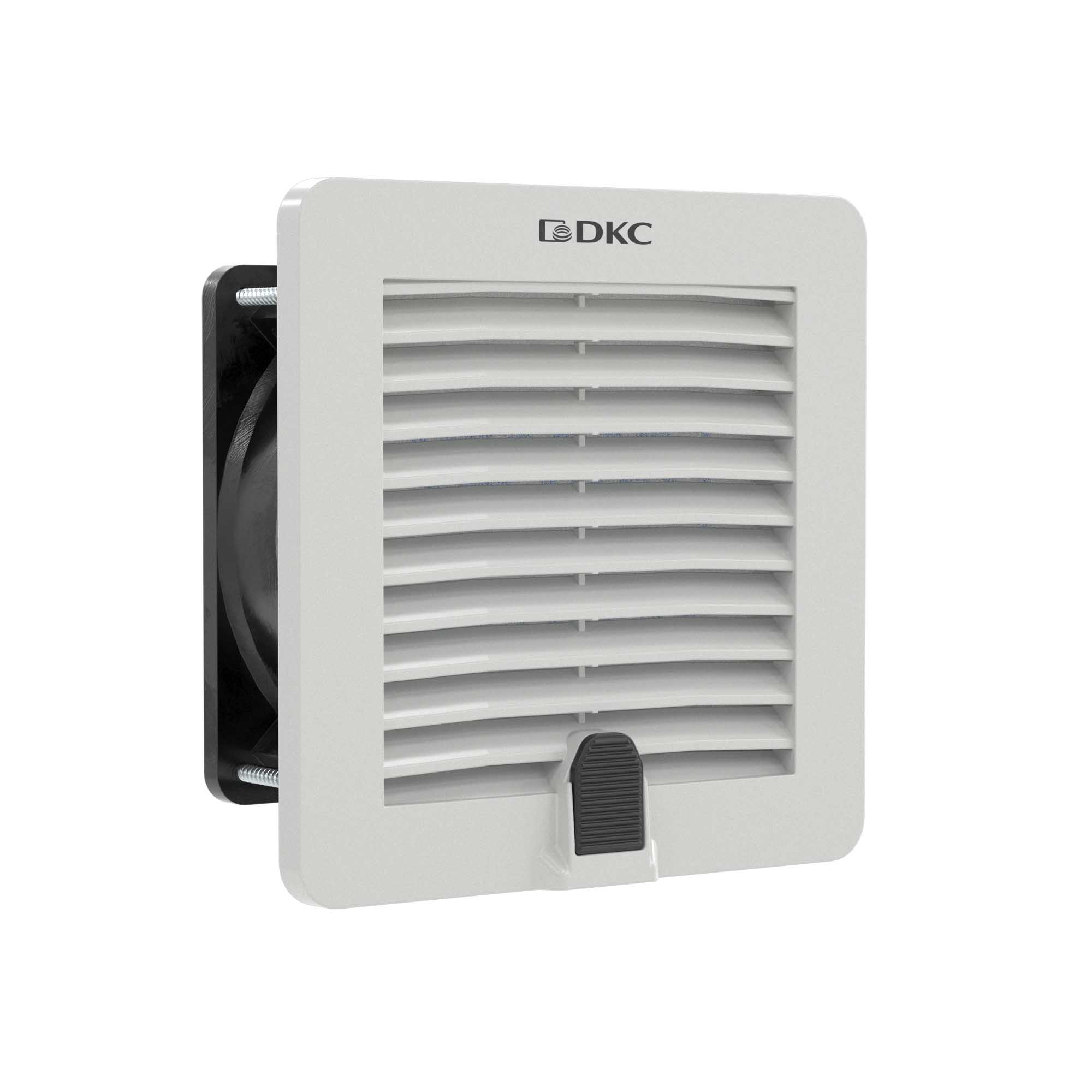

Fan with filter RV 40 m3/h, 24 V DC, 112x112 mm, IP54
Code: R5RV08024
Fan with filter RV 40 m3/h, 24 V DC, 112x112 mm, IP54
Code: R5RV08024
Mounting method | Snap mounting |
Width, mm | 112 |
Height, mm | 112 |
Suitable for 19 inch rack mounting | No |
Number of fans | 1 |
Degree of protection (IP) | IP54 |
With filter | Yes |
Rated power, W | 7.2 |
Roof ventilator | No |
Volume flow, freeblowing, m³/h | 40 |
Wall build in | Yes |
Voltage type | DC |
RAL-number | 7035 |
With protective cover | Yes |
Noise emission, dB(A) | 55 |
Depth, mm | 75 |
EMC-version | No |
Built as slide-in ventilator | No |
Air circulator | No |
Operating voltage at DC, V | 24 |
Colour | Grey |
Product type | Fan |
Mounting type | Wall-mounted |
Rated operating voltage V, ~, Hz | 24 V, DC |
Size | Size 08, 112 x 112 |
EMC-version | No |
Code of ventilation grille | R5RF08 |
External dimensions (W x H x D), mm | 112 x 112 x 75 |
Maximum installation depth, mm | 62.04 |
Required mounting cut-out (W x H), mm | 92 x 92 |
Degree of protection | IP54 |
Optionally degree of protection | IP55, IP56 |
Material | ABS plastic, PC, UL94V0 |
Operating temperature range, ˚C | -10…+55 |
Storage temperature range, ˚C | -40…+70 |
Noise level, dB(A) | 55 |
Rated current, A | 0.4 |
Rated power consumption, W | 7.2 |
Maximum static pressure, Pa | 55 |
Service life (MTBF), h | 50000 |
Filter class | G3 |
Color | RAL 7035, light grey |
Weight, kg | 0.39 |
Unimpeded air flow, m3/h | 40 |
Accessories
Analogs

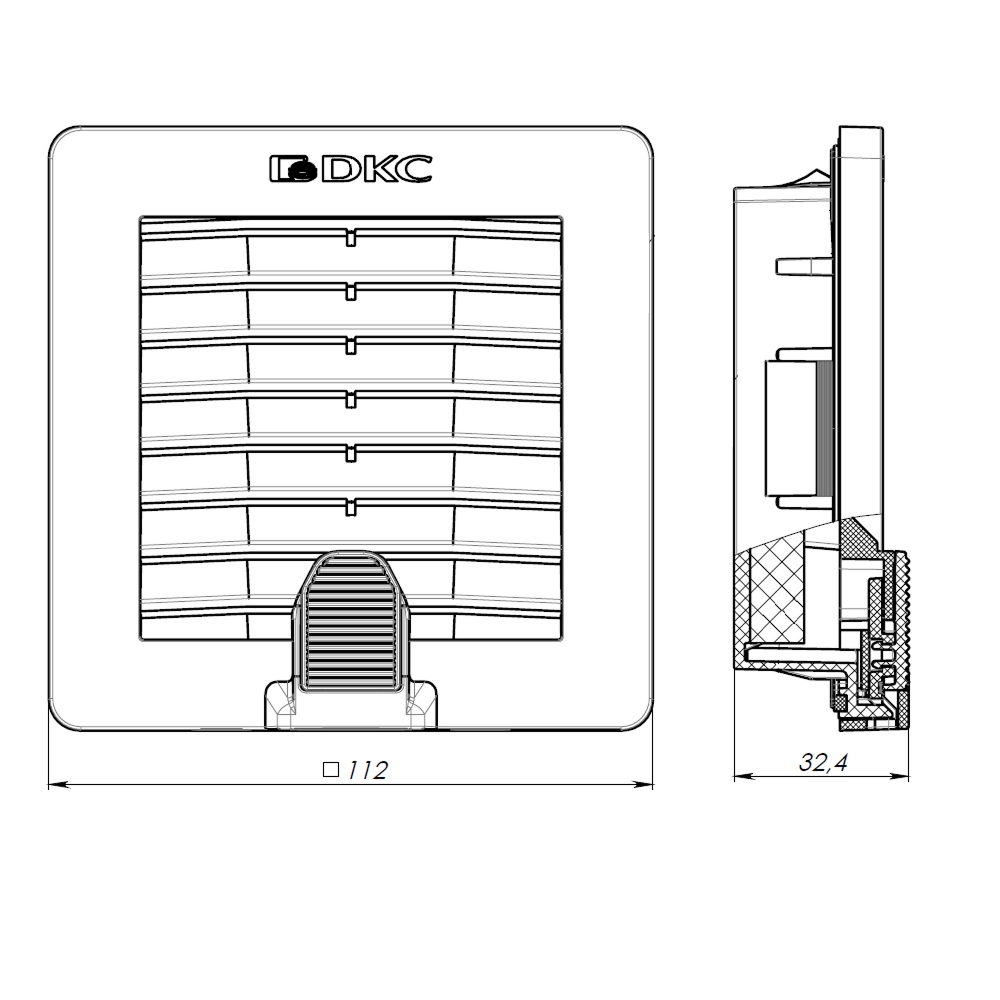

Drawings
