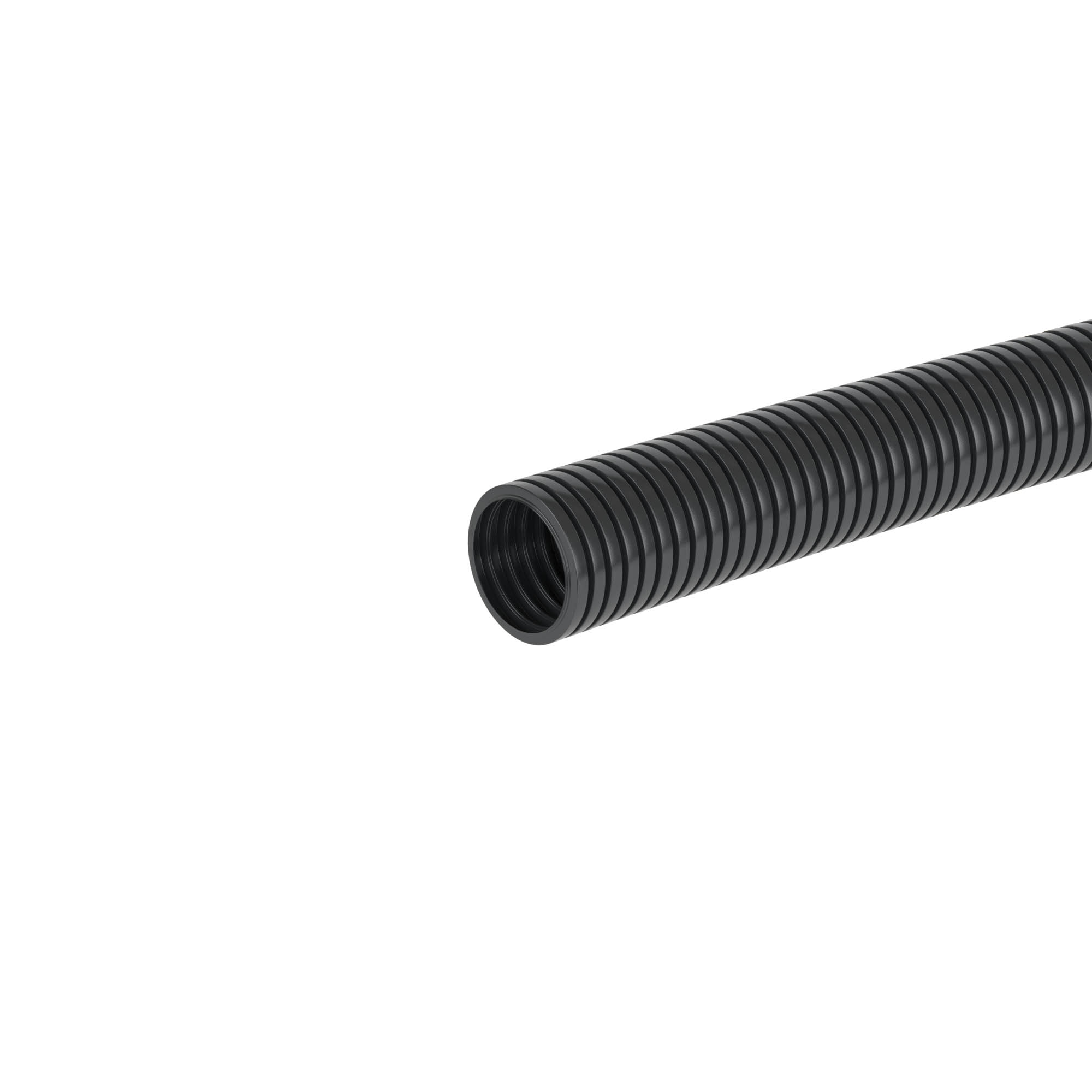

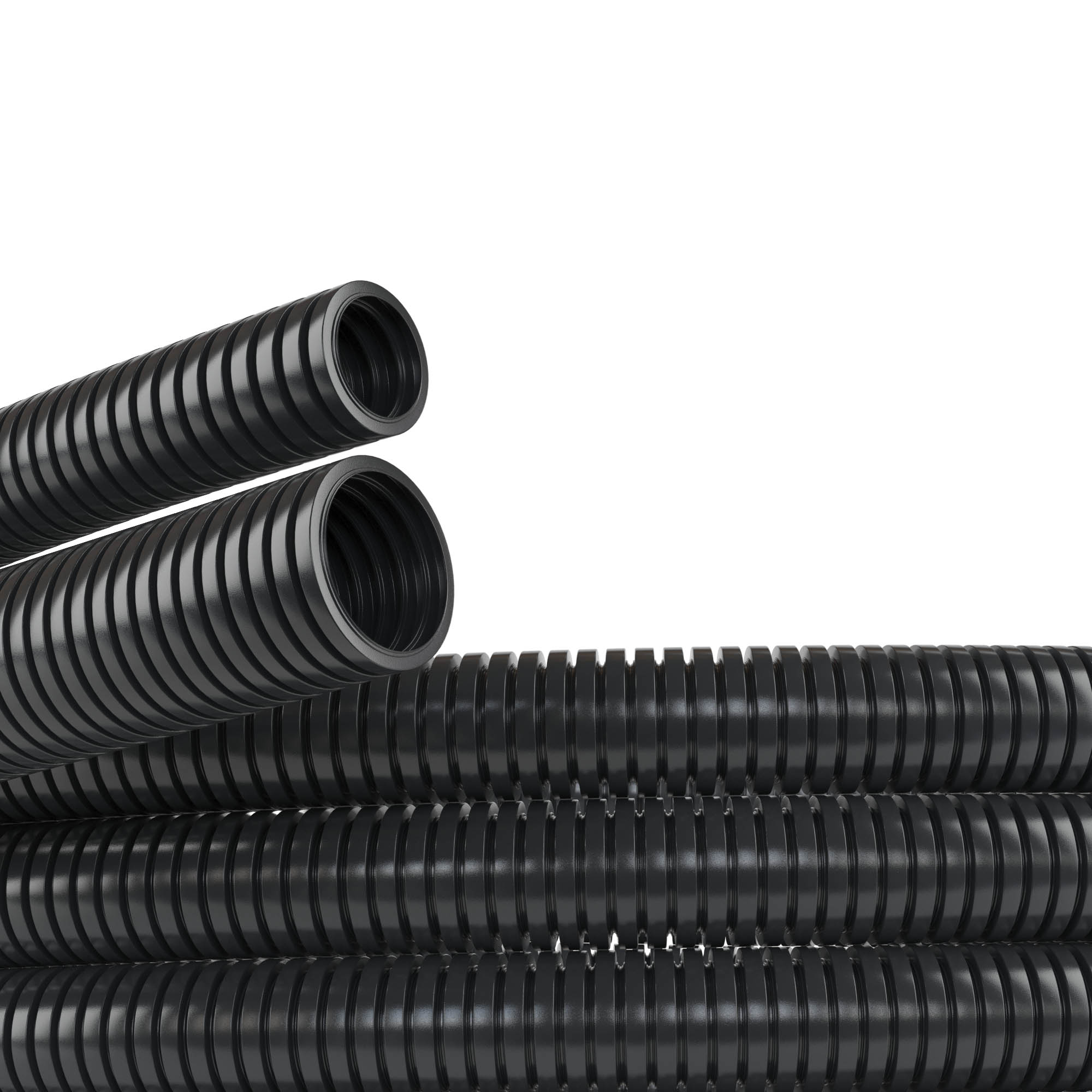

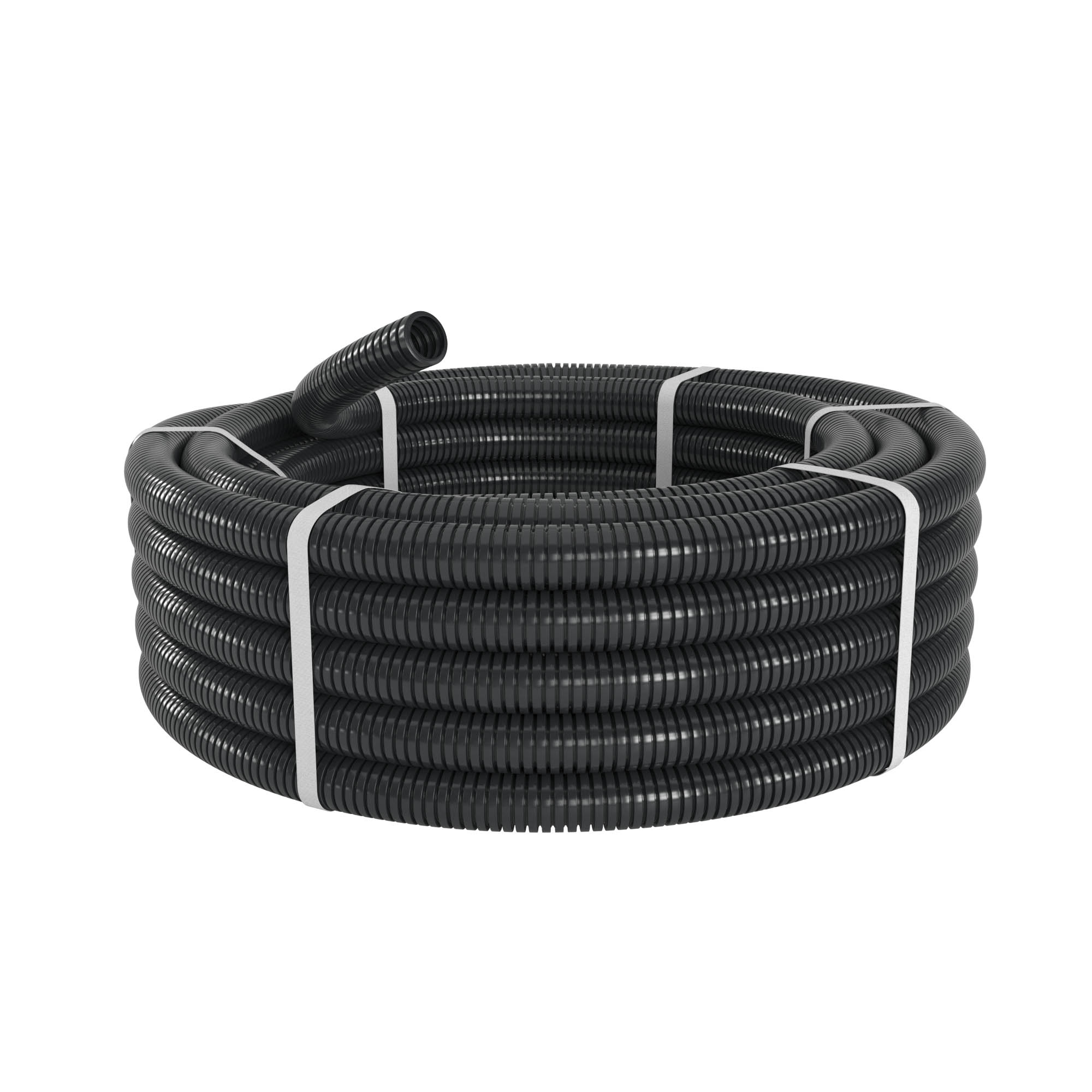

Tube PA6 flexible corrugatted without pull, DN48mm, HF, RoHS, HB, Din 47,4 mm, Dex 54,5 mm , color-black

Code: PA604855HB

Tube PA6 flexible corrugatted without pull, DN48mm, HF, RoHS, HB, Din 47,4 mm, Dex 54,5 mm , color-black

Code: PA604855HB
Colour Black

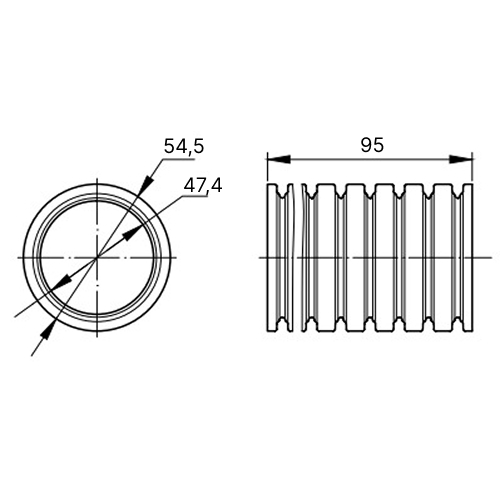

Outer diameter, mm 54.5
Oil resistant Yes
UV resistant Yes
Halogen free Yes
Inner diameter, mm 47.4
Operational temperature, °C -25...105
Bending radius, static, mm 95
Flame accelerating Yes
Material Polyamide 6
Tensile strength, N 300
Nominal diameter, mm 48
Nominal size in inch 1 3/4 inch
Degree of protection (IP) IP66
Bending strength Flexible
Lengthwise slotted Yes
Closable (two-part) Yes
Sheathing material Not sheathed
High conducting inner coating Yes
With draw wire Yes
Length 25000 mm
Diameter (nominal) 48 mm
Color Black
Material PVC
-5°С ... +60°С -25°С ... +105°С
Ingress Protection rating, IP IP66
от -25°С до +60°С from -25°С to +105°С
Shock resistance, J >1
Cord for wires No
Fire protection HB
ТУ 2248-012-47022248-2009 Technical specifications 2247-024-47022248-2009
3 года 3 years
15 лет 15 years
