Ladder tray 100х300, L 6000 ZL

Code: LA1030ZL

Ladder tray 100х300, L 6000 ZL

Code: LA1030ZL
Colour Light grey
Width, mm 300
Height, mm 100
Surface protection Zinc lamellar coating
Type of rung Perforated profile
Side wall perforation Yes
Material quality Steel
Length, mm 6000
Material Steel
Useful cross section, mm² 24600
Stainless steel, pickled Yes
Wide span model Yes
Type of side joist Profile (open)
Rung centre spacing, mm 300
Fixation rung Fully revited
Product type Straight elements
Height 100 mm
Width 300 mm
Material Zinc lamellar coating
Side rail thickness 1.5 mm
Type Metal ladder trays - "L5 Combitech"
Length 6000 mm
Accessories
Analogs

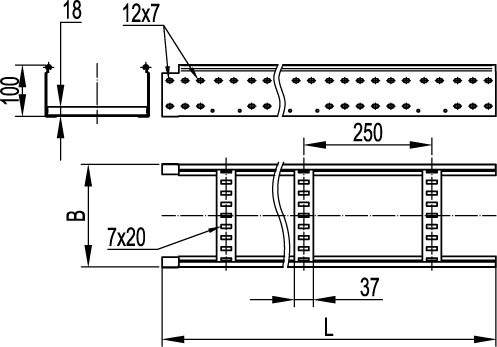

Drawings
Seria Name AVEVA Intergraph DWG (dynamic.) SAT STEP Autodesk Revit
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Certificates
Name Document
