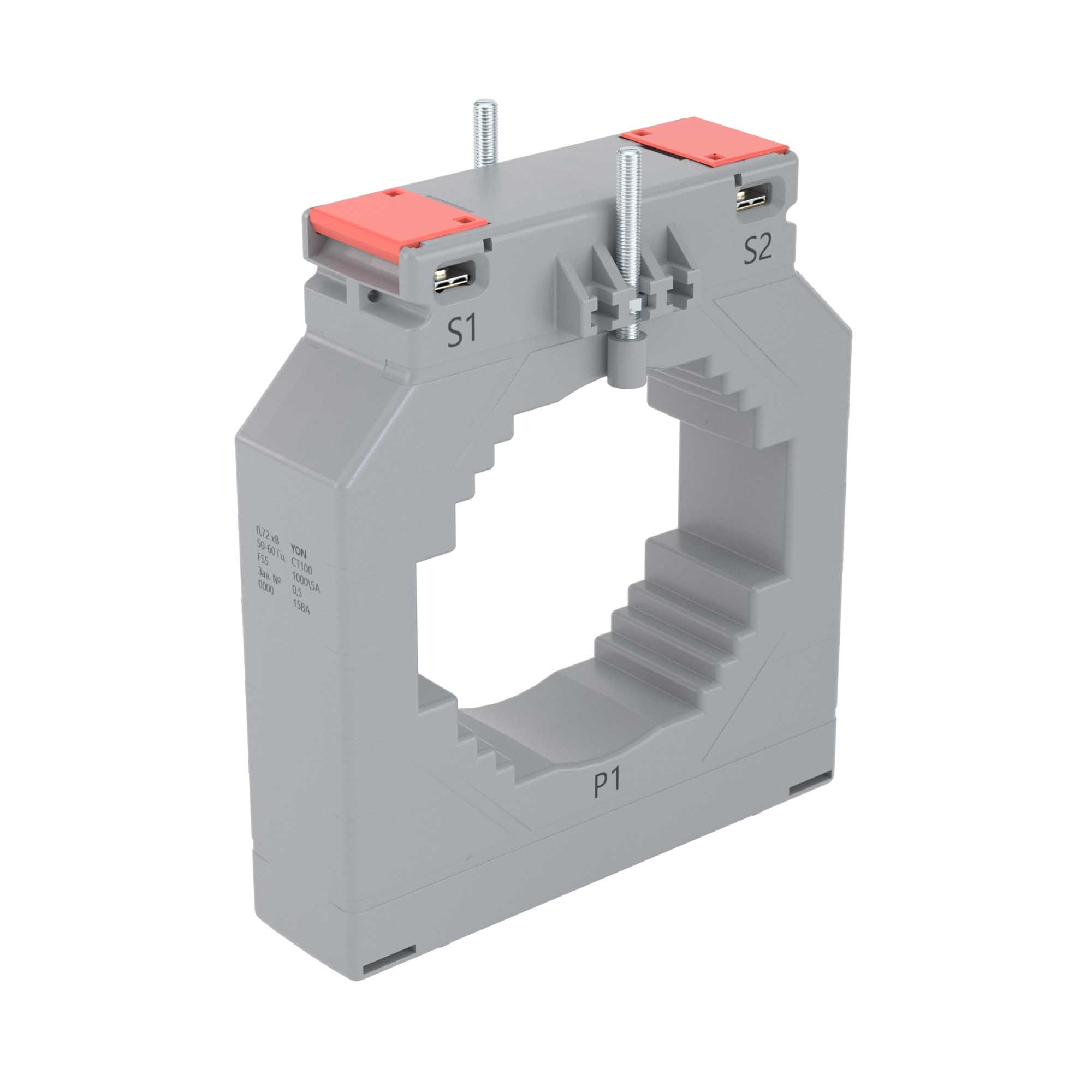

Current transformer CT100 600/5А, accuracy class -0.5, power - 10ВА

Code: CT100-600-0.5-10

Current transformer CT100 600/5А, accuracy class -0.5, power - 10ВА

Code: CT100-600-0.5-10
Model Single-phase current converter
Accuracy class 0.5
Calibrated Yes
Width opening, mm 100
Height opening, mm 80
Opening diameter, mm 85
Number of primary inputs 1
With copper rail No
Primary rated current, A 600
Snap mounting No
Secondary connection Cable
Secondary rated apparent power, VA 10
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Marking CT100-600-0.5-10
Series YON CT
Primary winding current 600 A
Secondary winding current 0.20833333333333
Accuracy class 0.5
Hole width 100 mm
