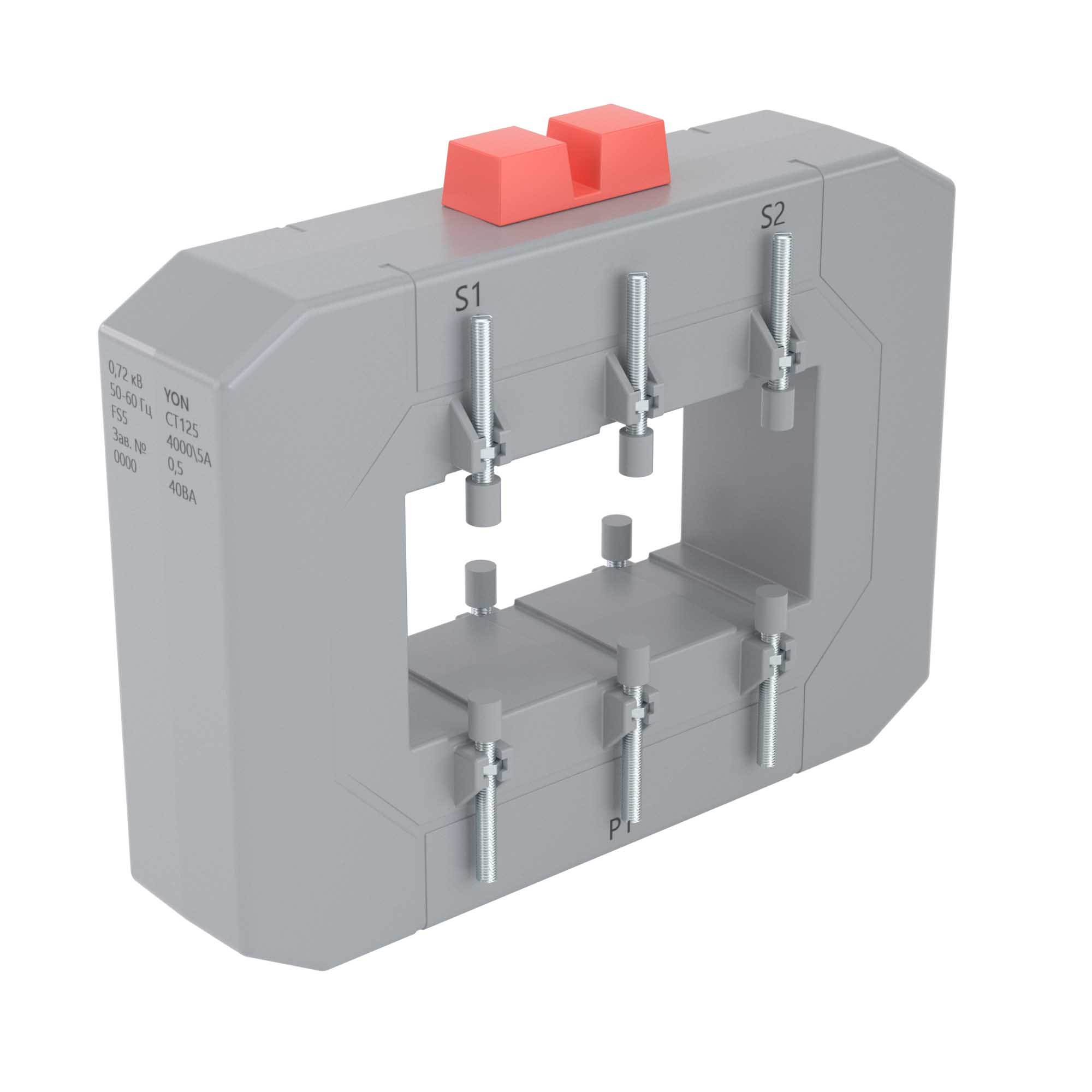

Current transformer CT165 1250/5А, accuracy class -0.5S, power - 10ВА
Code: CT165-1250-0.5S-10
Current transformer CT165 1250/5А, accuracy class -0.5S, power - 10ВА
Code: CT165-1250-0.5S-10
Model | Single-phase current converter |
Accuracy class | 0.5 |
Calibrated | Yes |

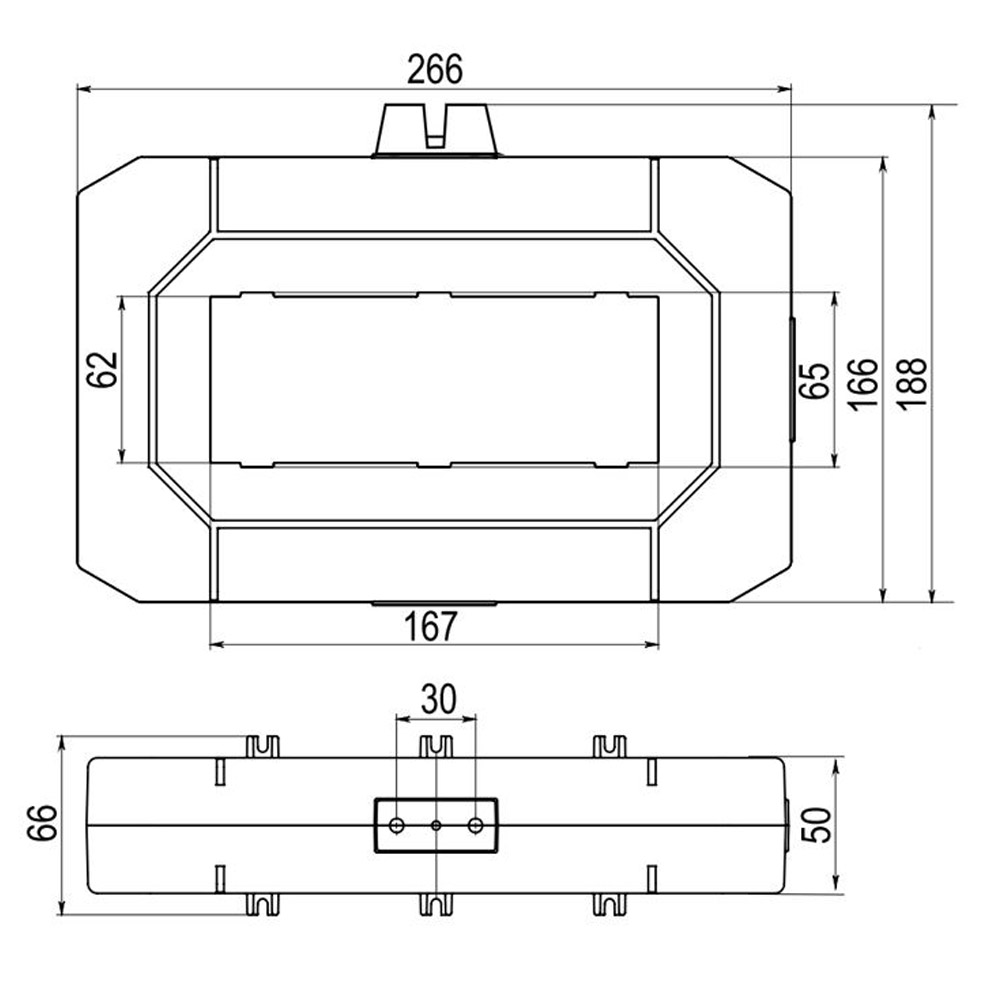

Width opening, mm | 165 |
Height opening, mm | 65 |
Opening diameter, mm | 65 |
Number of primary inputs | 1 |
With copper rail | No |
Primary rated current, A | 1250 |
Snap mounting | No |
Secondary connection | Cable |
Secondary rated apparent power, VA | 10 |
Secondary rated current, A | 5 |
Over current limiting factor | FS 5 |
With shock protection | Yes |
Marking | CT165-1250-0.5S-10 |
Series | YON CT |
Primary winding current | 1250 A |
Secondary winding current | 0.20833333333333 |
Accuracy class | 0.5S |
Hole width | 165 mm |
