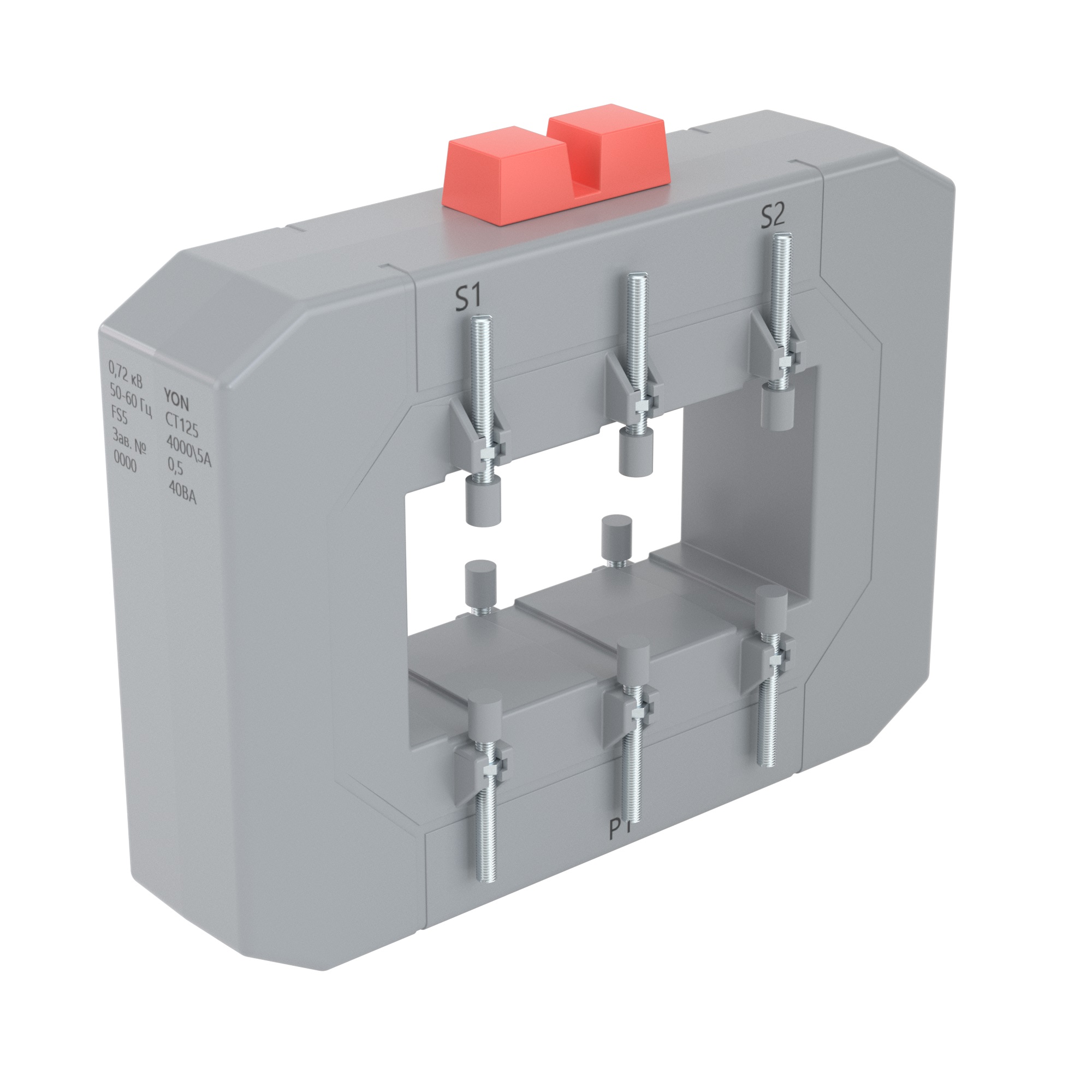

Current transforme CT165 2500/5А, accuracy class-0.2S, power -20ВА
Code: CT165-2500-0.2S-20
Current transforme CT165 2500/5А, accuracy class-0.2S, power -20ВА
Code: CT165-2500-0.2S-20
| Model | Single-phase current converter |
| Accuracy class | 0.2 |
| Calibrated | Yes |
| Width opening, mm | 165 |
| Height opening, mm | 60 |
| Opening diameter, mm | 60 |
| Number of primary inputs | 1 |
| With copper rail | No |
| Primary rated current, A | 2500 |
| Snap mounting | No |
| Secondary connection | Cable |
| Secondary rated apparent power, VA | 20 |
| Secondary rated current, A | 5 |
| Over current limiting factor | FS 5 |
| With shock protection | Yes |
| Marking | CT165-2500-0.2S-20 |
| Series | YON CT |
| Primary winding current | 2500 A |
| Secondary winding current | 0.20833333333333 |
| Accuracy class | 0.2S |
| Hole width | 165 mm |
