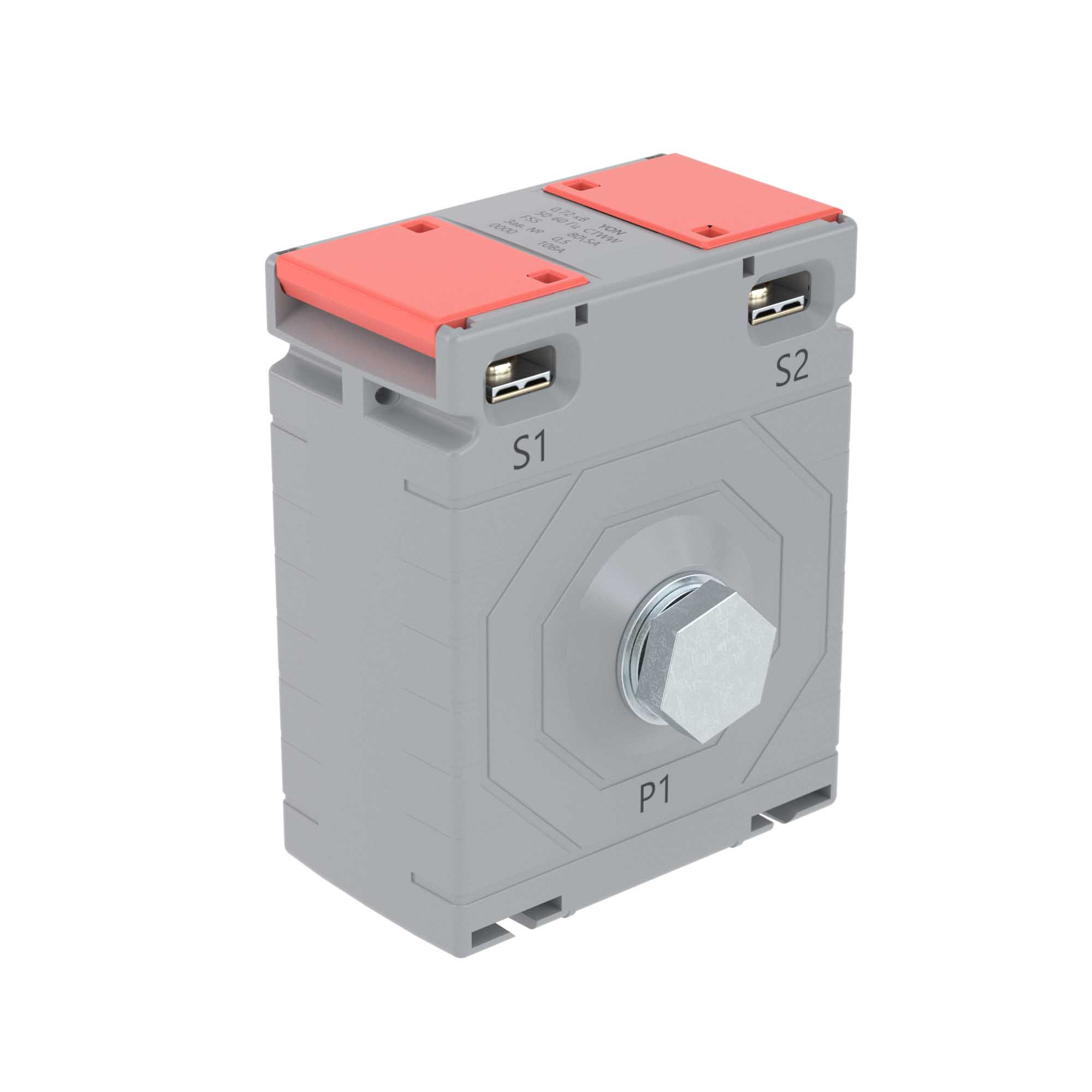

Current transformer CTWW 30/5А, accuracy class -0.2, power - 5ВА
Code: CTWW-30-0.2-5
Current transformer CTWW 30/5А, accuracy class -0.2, power - 5ВА
Code: CTWW-30-0.2-5
| Model | Attachable current transformer |
| Accuracy class | 0.2 |
| Calibrated | No |
| Number of primary inputs | 1 |
| With copper rail | Yes |
| Primary rated current, A | 30 |
| Snap mounting | No |
| Secondary connection | Screw connection |
| Secondary rated apparent power, VA | 5 |
| Secondary rated current, A | 5 |
| Over current limiting factor | FS 5 |
| With shock protection | Yes |
| Marking | CTWW-30-0.2-5 |
| Series | YON CT |
| Primary winding current | 30 A |
| Secondary winding current | 0.20833333333333 |
| Accuracy class | 0.2 |
