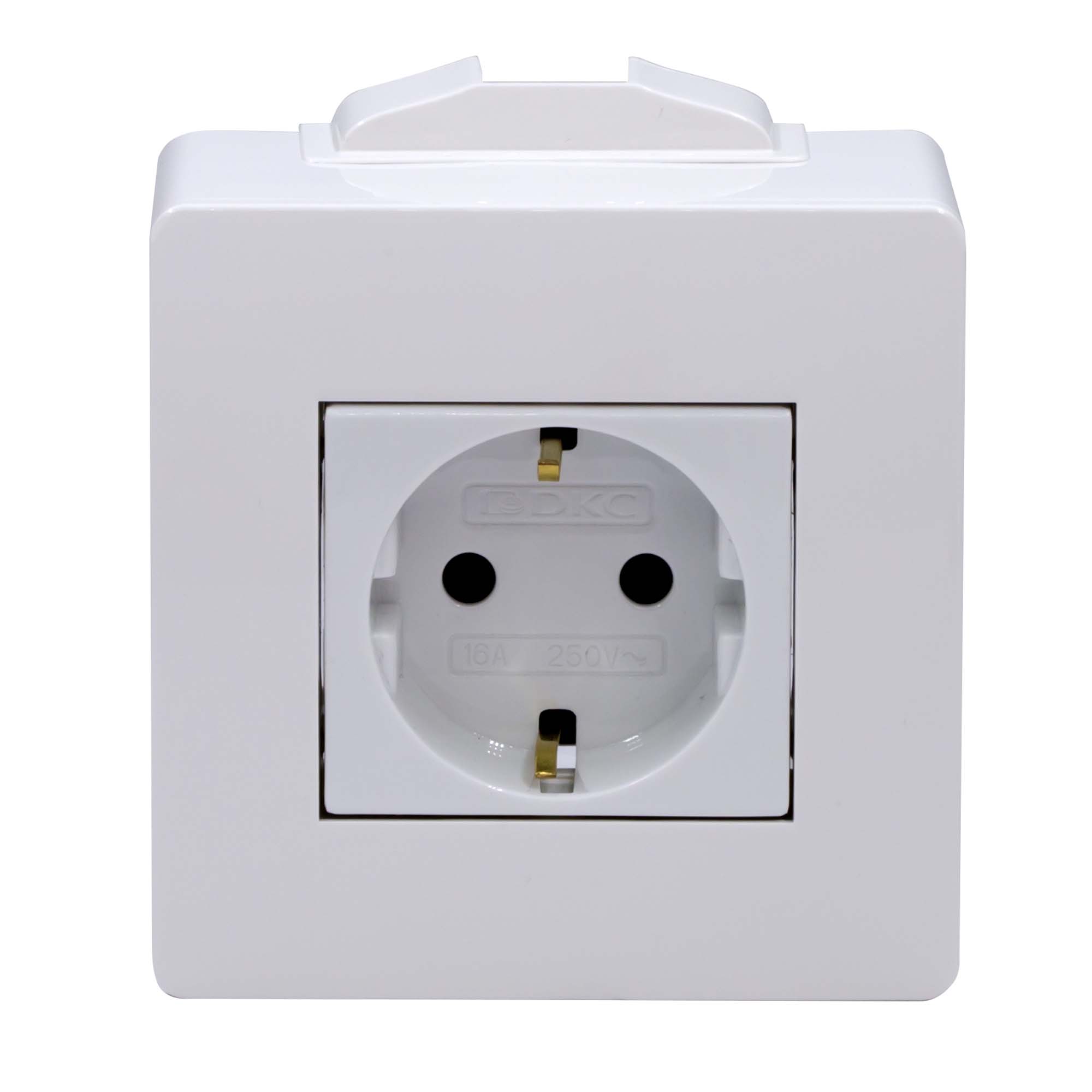

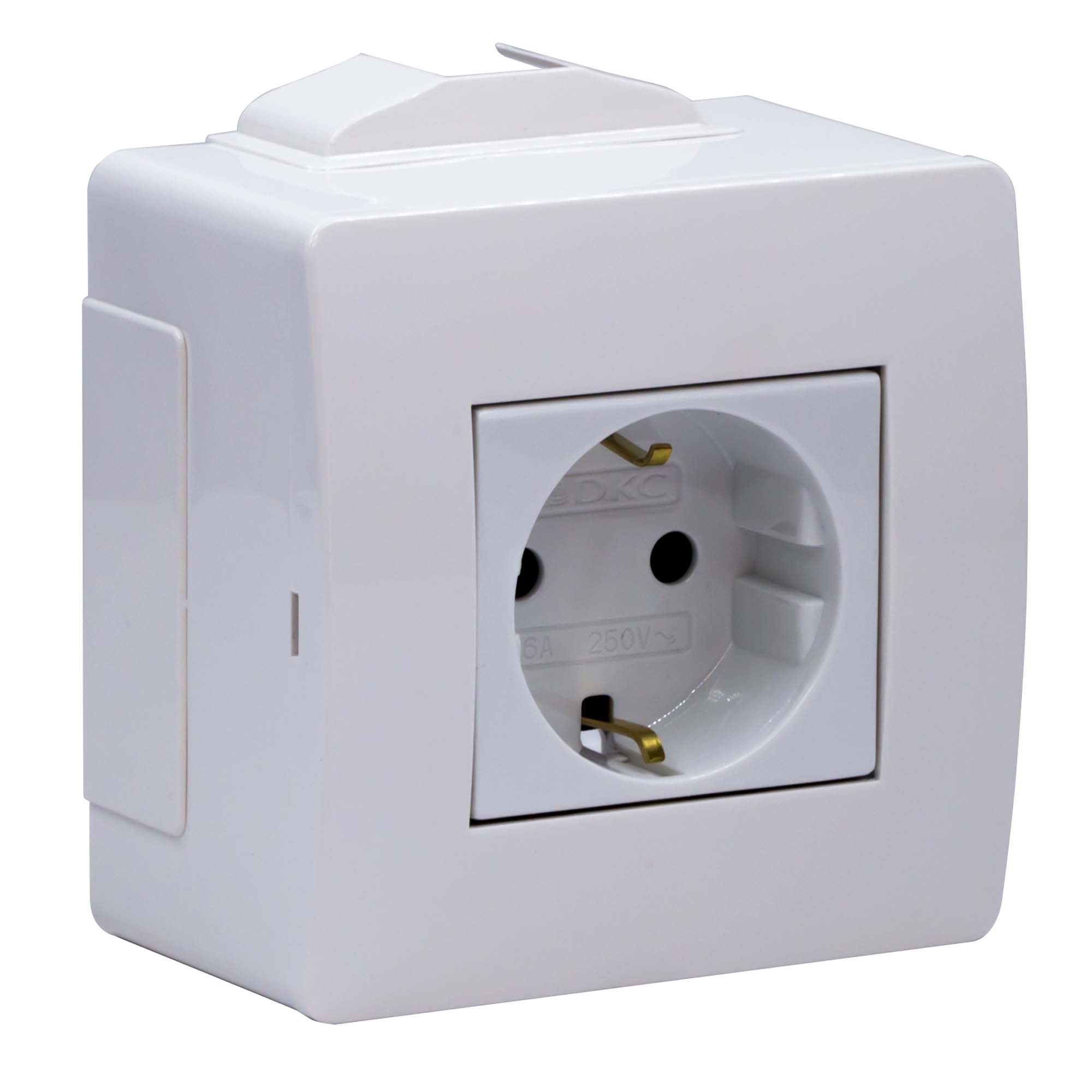

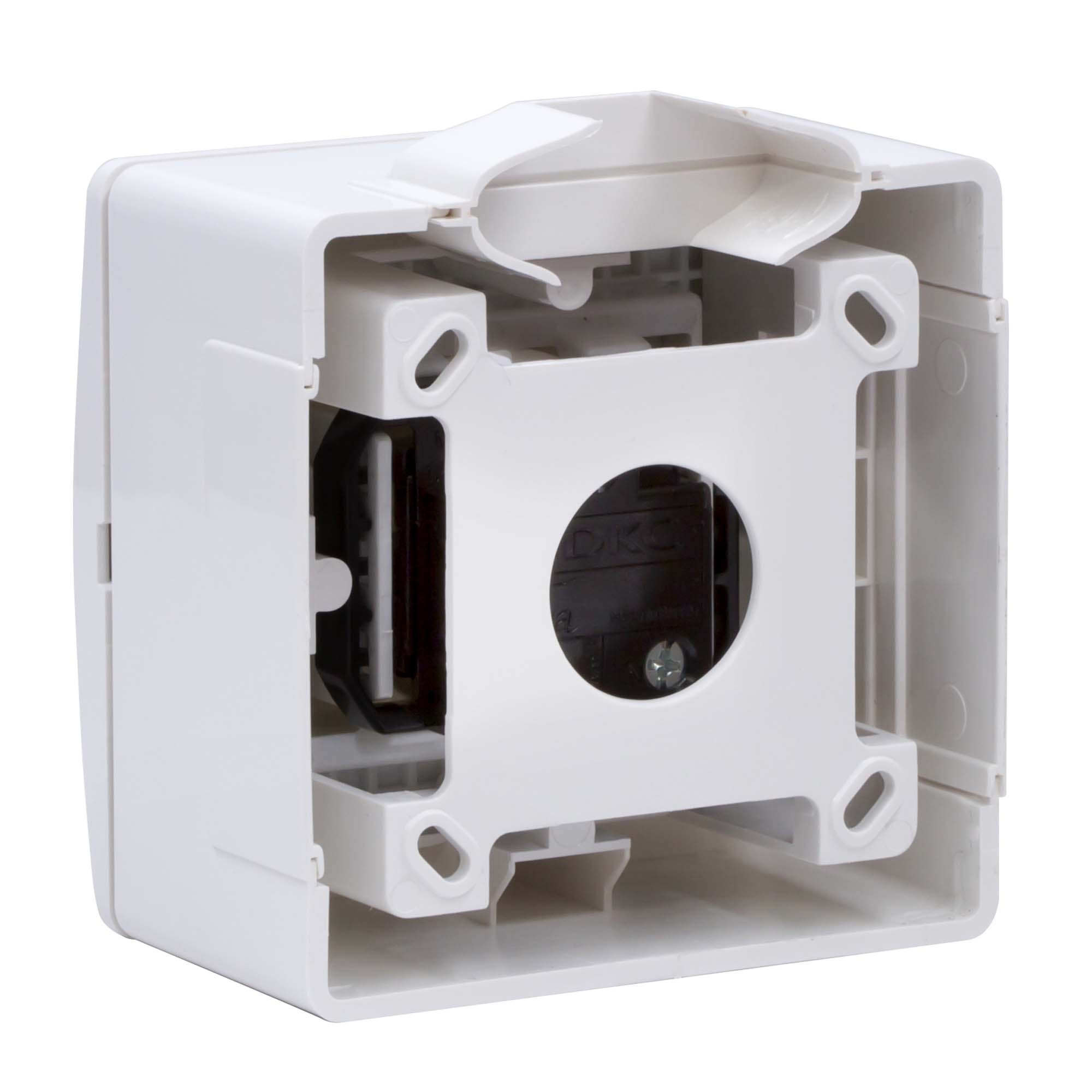

Box with outlet, 2Р+Е, with safety shutters, 2 mod., white
Code: 10482
Box with outlet, 2Р+Е, with safety shutters, 2 mod., white
Code: 10482
Nominal current, A | 16 |
Nominal voltage, V | 250 |
Mounting method | Surface mounted (plaster) |
Colour | White |
Model | Protective contact (SCHUKO) |
Halogen free | Yes |
Number of units | 1 |
Lockable | Yes |
With hinged lid | Yes |
Surface protection | Decor |
With child-protection | Yes |
Label space/information surface | Yes |
Eject-mechanism | Yes |
Material quality | Thermoplastic |
Rotated central insert | Yes |
Over voltage protection | Yes |
Fault current protection | Yes |
Material | Plastic |
Type of fastening | Mounting with screw |
For heavy conditions (according to VDE) | Yes |
Imprint/indication | Without imprint |
Transparent | Yes |
Surface finishing | Glossy |
With miniature fuse | Yes |
Suitable for degree of protection (IP) | IP00 |

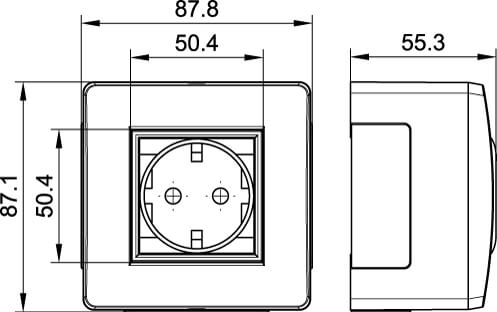

Width of device, mm | 87.8 |
Height of device, mm | 87.1 |
Depth of device, mm | 54 |
With function lighting | Yes |
With orientation lighting | Yes |
Special power supply | No special power supply |
Connection type | Screwed terminal |
Complete with plug | Yes |
Antibacterial treatment | Yes |
Material of case | ABC-plastic |
Width, mm | 86 |
Length, mm | 86 |
Temperature of mounting, °C | 5°С ... +60°С |
Ingress Protection rating, IP | IP40 |
Temperature of operation, °C | 5°С ... +60°С |
Temperature of operation, °C | +60°C |
Climate version | UHL4 |
Q'ty of bays | 1 |
Depth, mm | 55 |
Q'ty of holes | 3 |
Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
Product type | Box with socket |
Color | White |
Number of modules | 2 |
Type of installation | Open installation |
