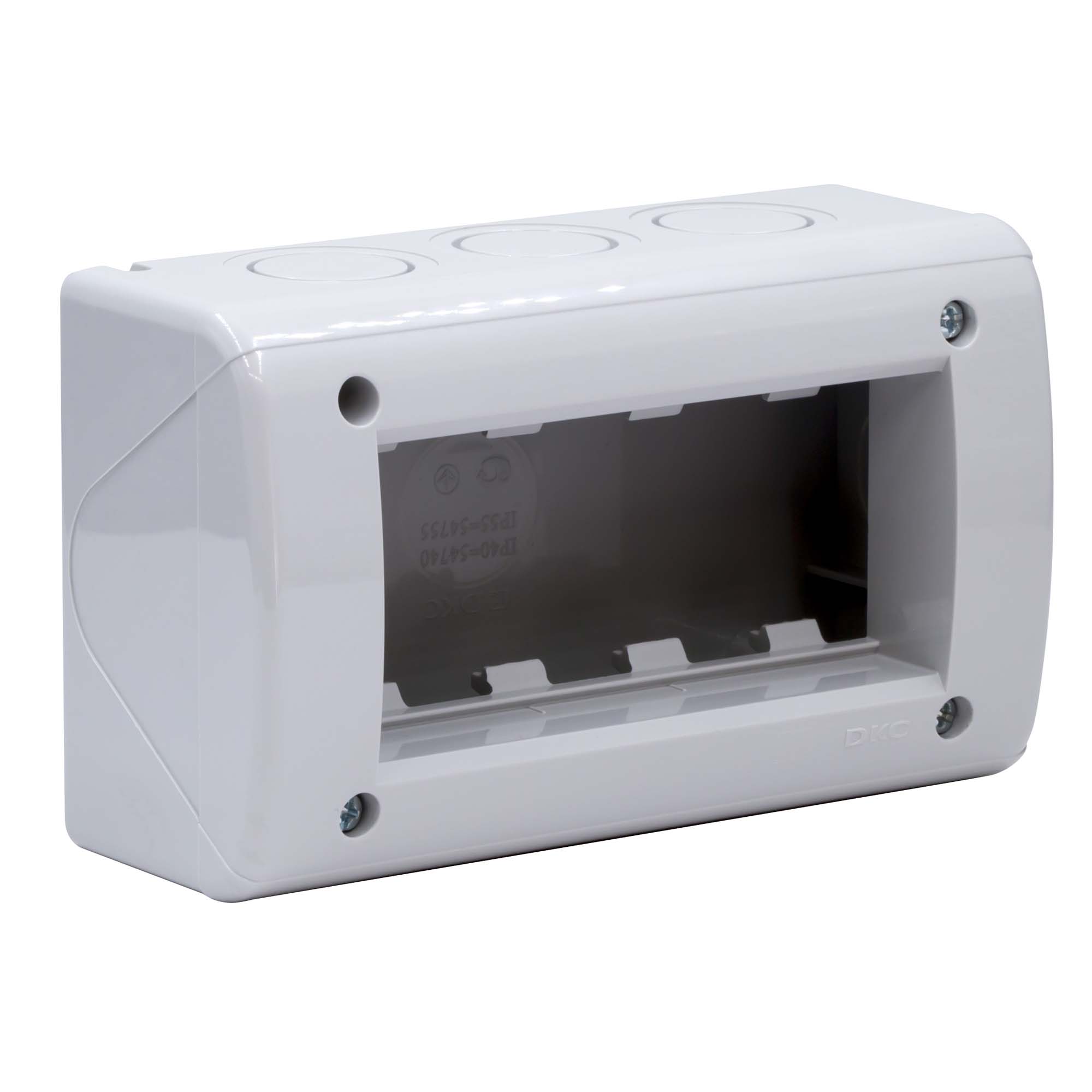

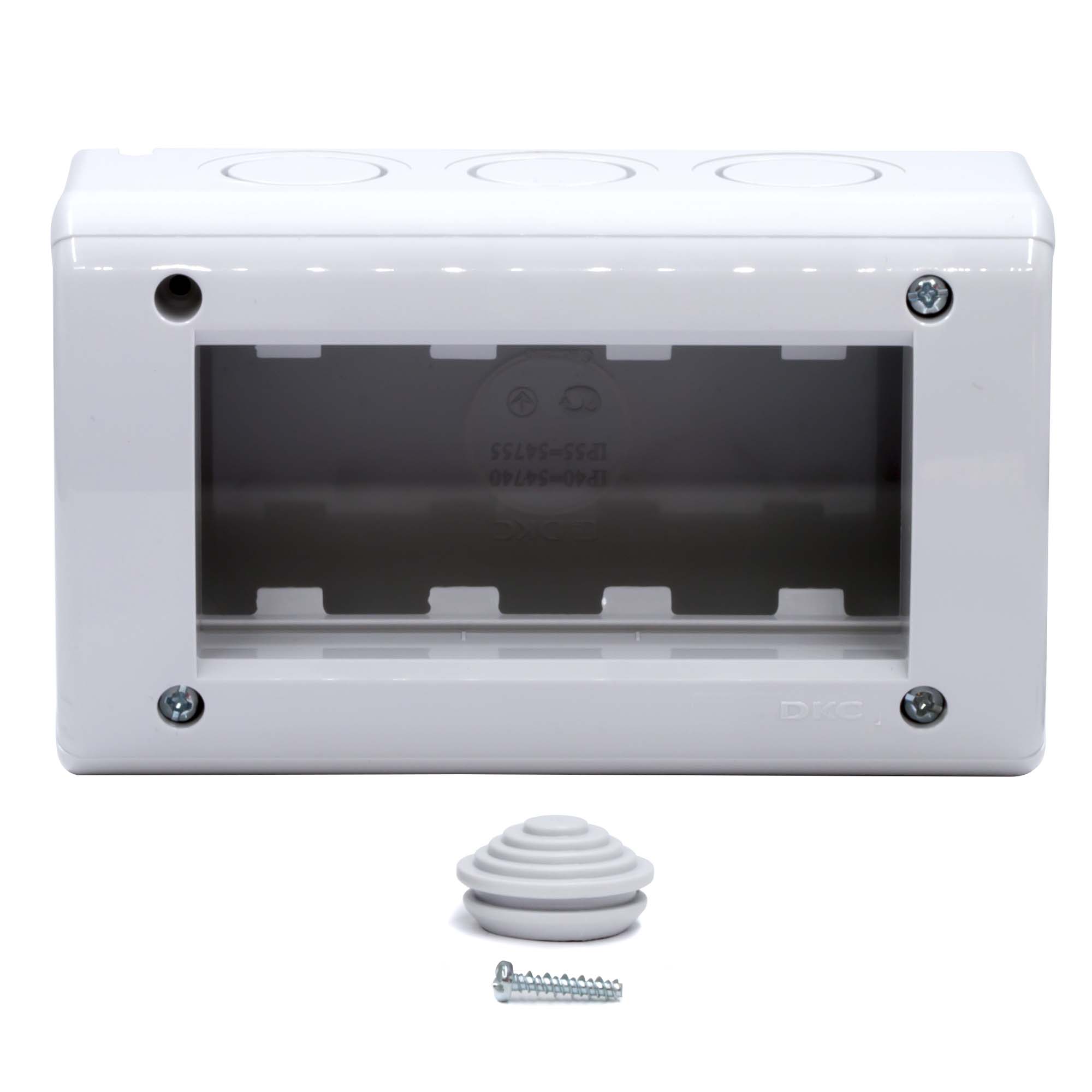

Modular wall box for wiring devices VIVA, IP40, 4 modules
Code: 54740
Modular wall box for wiring devices VIVA, IP40, 4 modules
Code: 54740
| Colour | Grey |

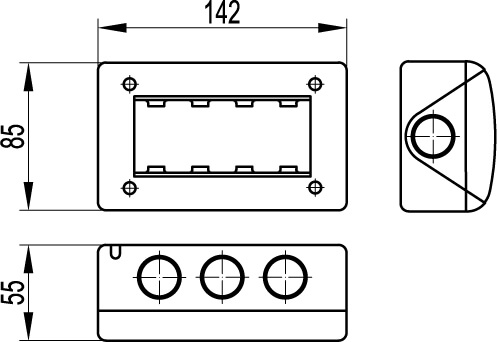

| Width, mm | 142 |
| Depth, mm | 55 |
| Surface protection | Untreated |
| Length, mm | 85 |
| Sealable | Yes |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 1 |
| Explosion-tested version | Yes |
| Cover attachment | Screwed |
| With screening | Yes |
| Degree of protection (IP) | IP40 |

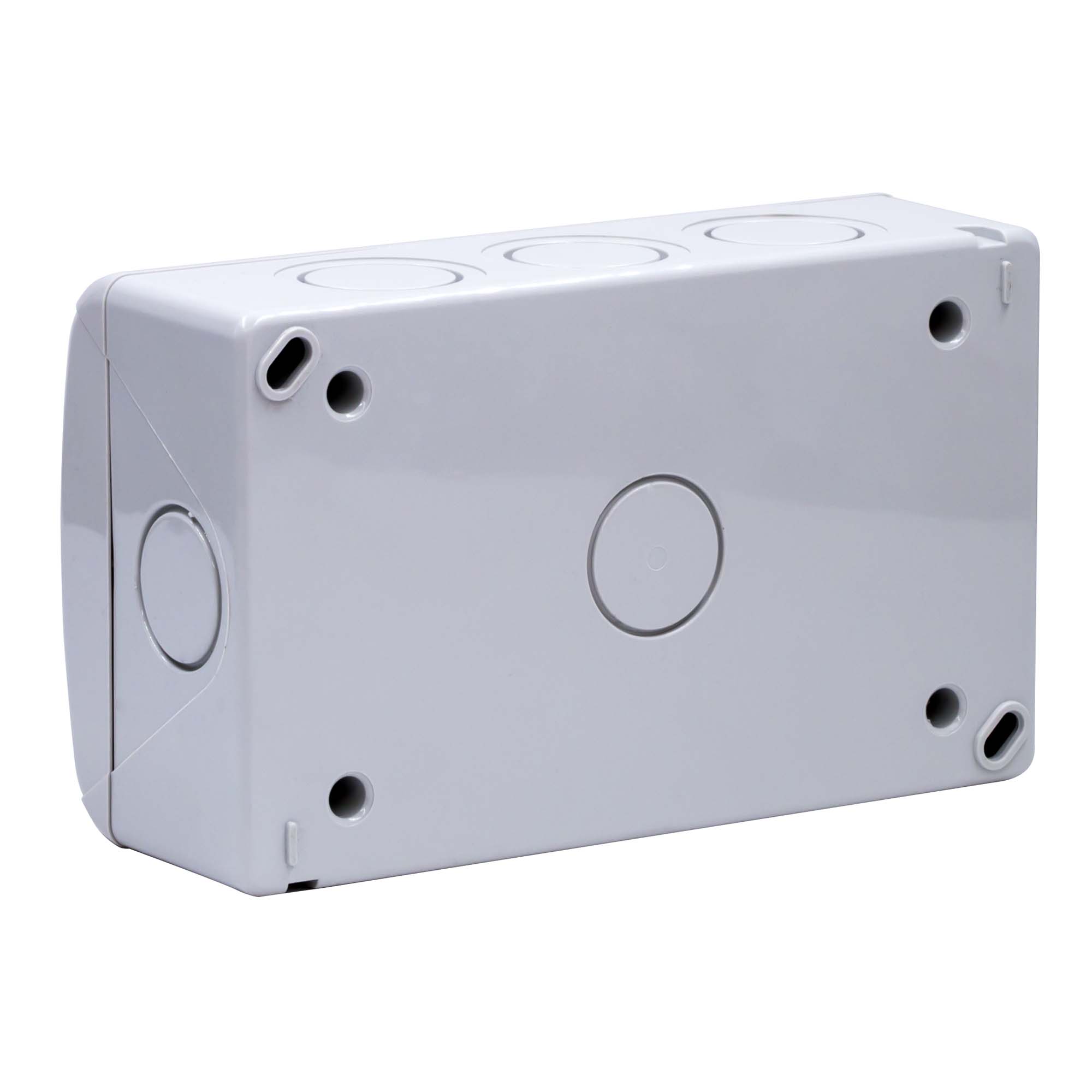

| Inlet from the rear | Yes |
| For Ex-zone gas | None |
| Tackable | Yes |
| For Ex-Zone dust | None |
| Shape | Rectangular |
| For tube diameter | 20 mm |
| Type of housing feed-through | Preembossing |
| Equipped with | None |
| Color | gray |
| Material | ABC-plastic |
| -5°С ... +60°С | -5°С ... +60°С |
| Ingress Protection rating, IP | IP40 |
| от -25°С до +60°С | from -25°С to +60°С |
| Product type | Wall box |
| ТУ 2248-012-47022248-2009 | Technical specifications 3464-028-47022248-2011 |
| 3 года | 3 years |
| Number of modules | 4 |
| Type of installation | Open installation |
