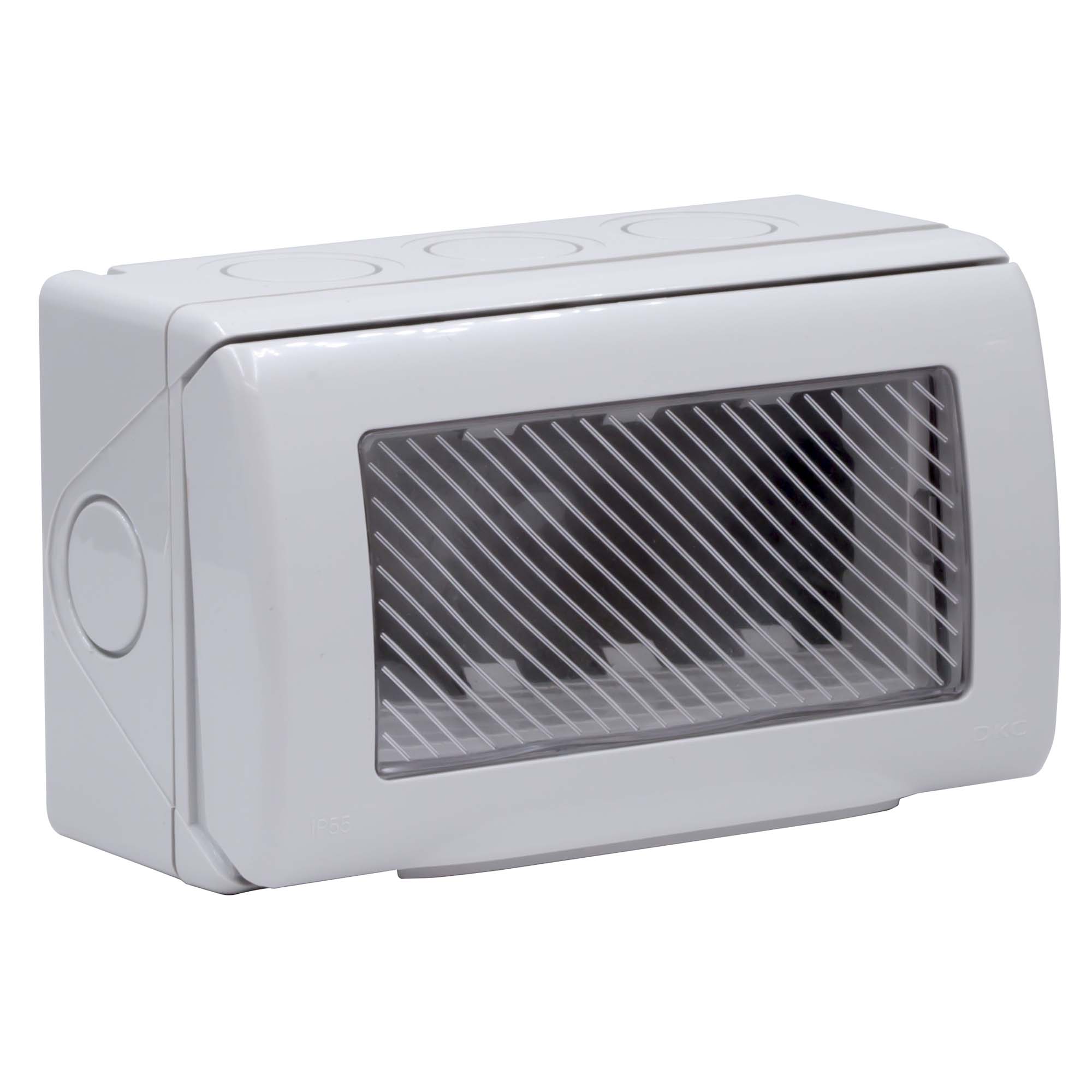

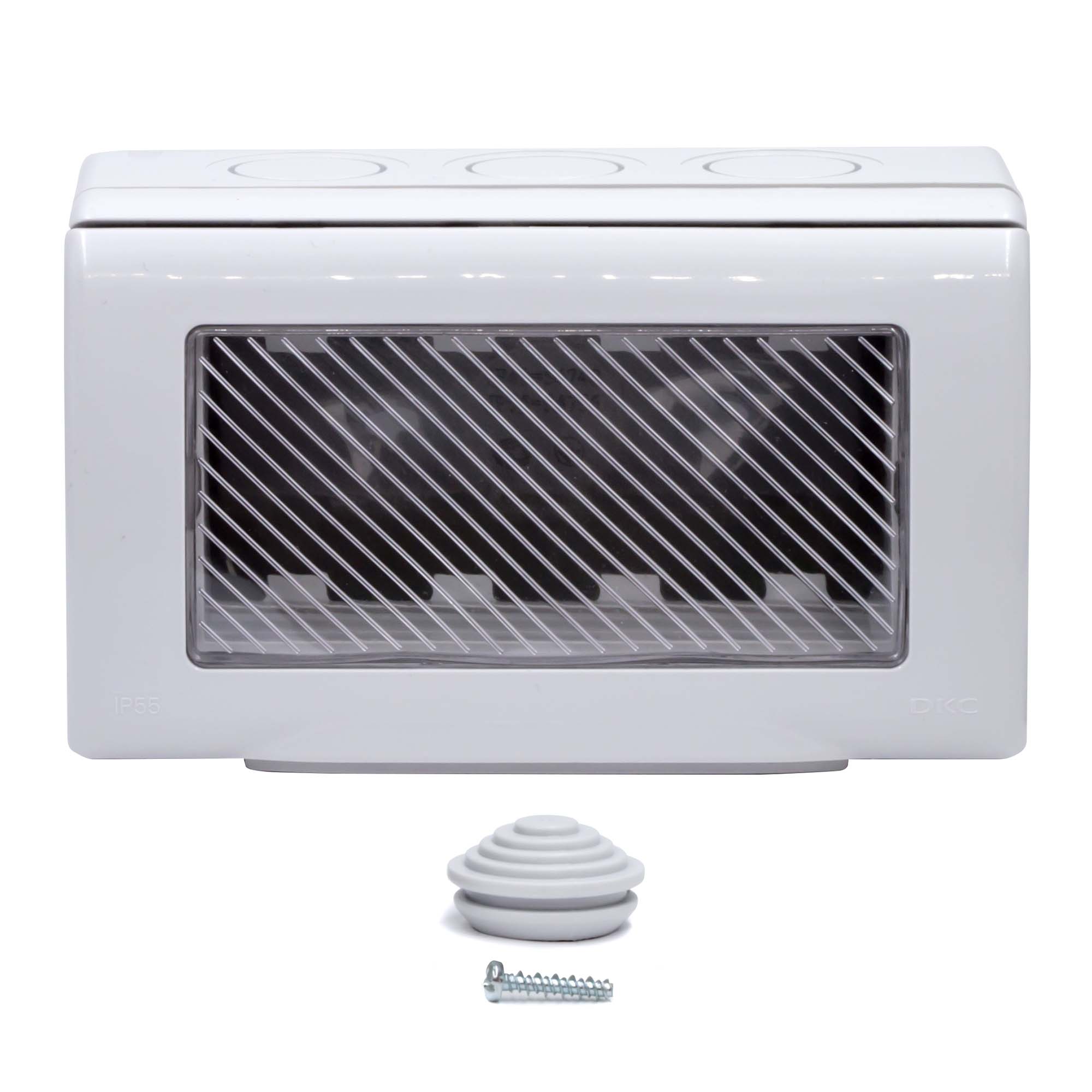

Modular wall box for wiring devices VIVA, IP55, 4 modules
Code: 54755
Modular wall box for wiring devices VIVA, IP55, 4 modules
Code: 54755
| Colour | Grey |

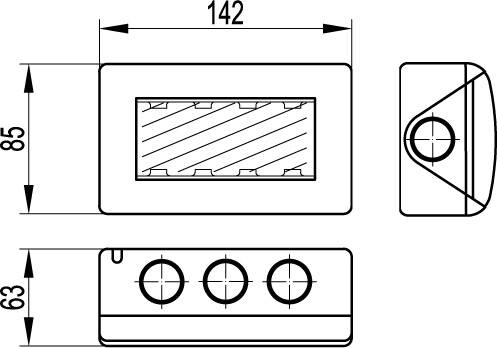

| Width, mm | 142 |
| Depth, mm | 63 |
| Surface protection | Untreated |
| Length, mm | 85 |
| Sealable | Yes |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 1 |
| Explosion-tested version | Yes |
| Cover attachment | Screwed |
| With screening | Yes |
| Degree of protection (IP) | IP55 |
| Inlet from the rear | Yes |
| For Ex-zone gas | None |
| Tackable | Yes |
| For Ex-Zone dust | None |
| Shape | Rectangular |
| For tube diameter | 20 mm |
| Type of housing feed-through | Preembossing |
| Equipped with | None |
| Color | gray |
| Material | ABC-plastic |
| Height, mm | 85 |
| Width, mm | 142 |
| Temperature of mounting, °C | -5°С ... +60°С |
| Ingress Protection rating, IP | IP55 |
| Temperature of operation, °C | from -25°С to +60°С |
| Depth, mm | 55 |
| Product type | Wall box |
| Number of modules | 4 |
| Type of installation | Open installation |
