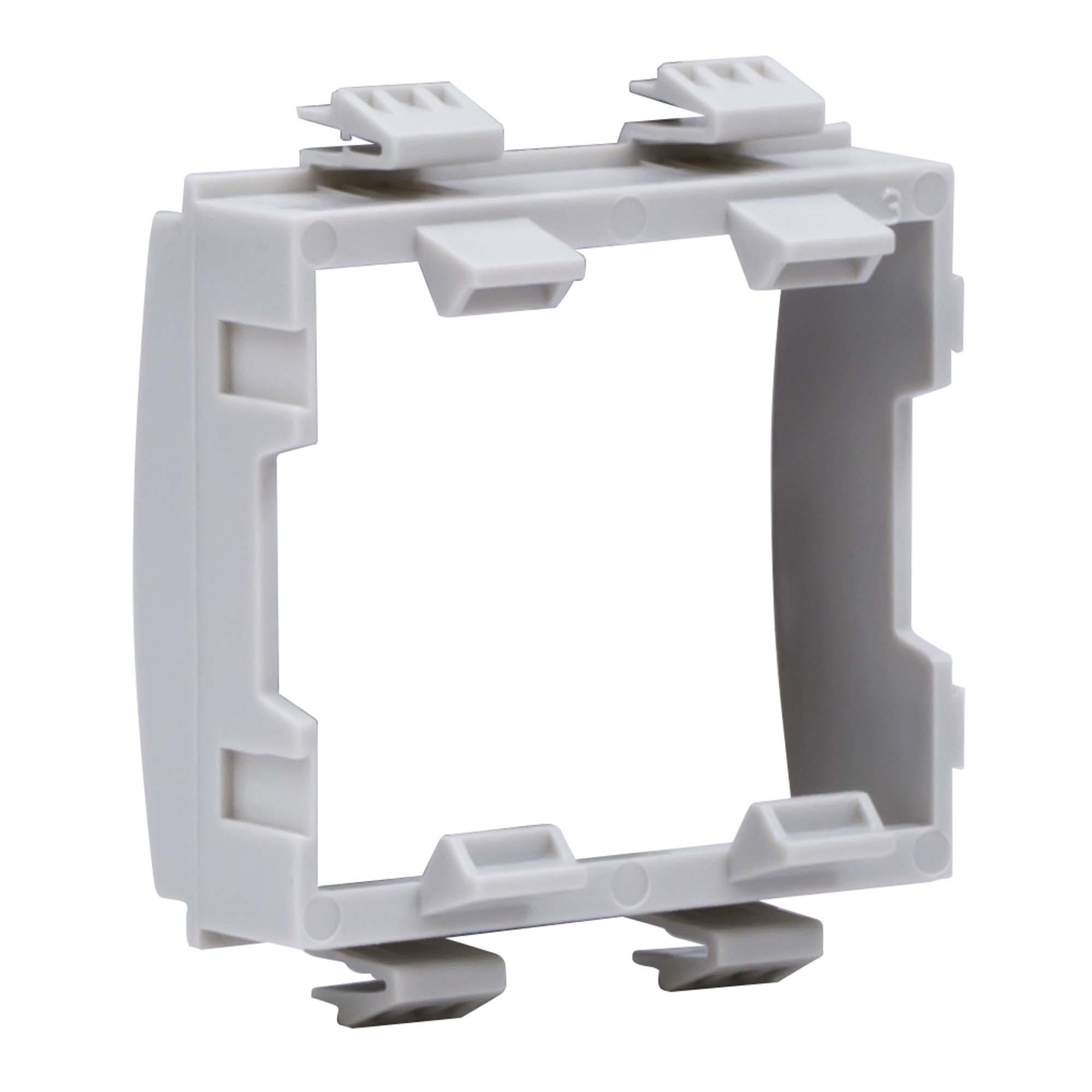

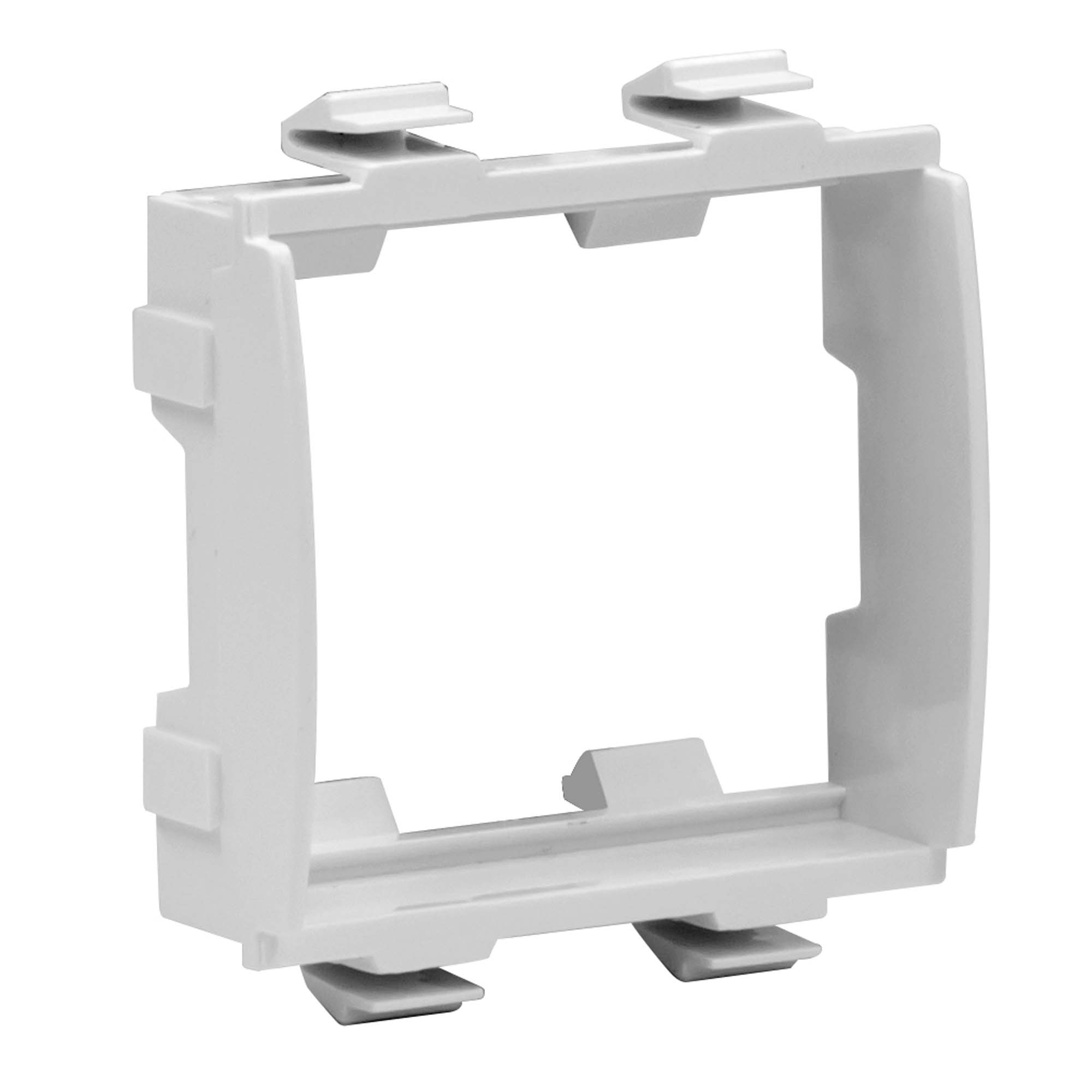

Support In-liner Front 2 mod. Viva, grey

Code: F1000A

Support In-liner Front 2 mod. Viva, grey

Code: F1000A

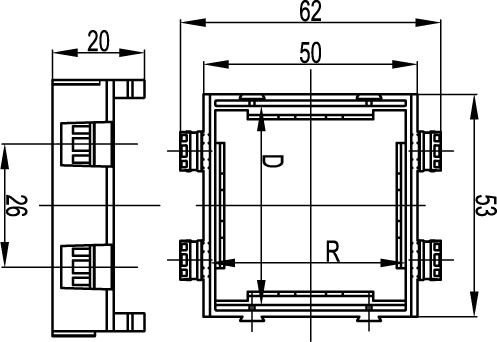

Width, mm 45
Height, mm 50
Depth, mm 20
Type of accessory/spare part Scaffold
Color gray
Width, mm 62
Length, mm 54
Temperature of mounting, °C ­5°С ... +60°С
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°C ... +60°C
Temperature of operation, °C +60°C
Climate version UHL4
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Frame
Number of modules 2
Type of installation Concealed installation
