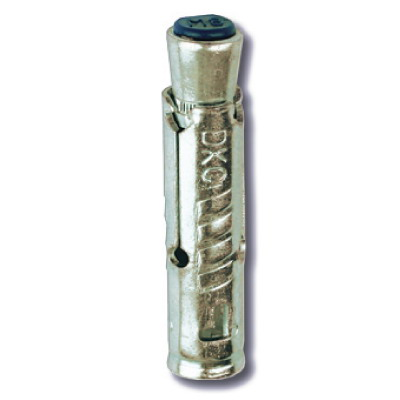

Sleeve metal anchor М10
Code: CM421060
Sleeve metal anchor М10
Code: CM421060

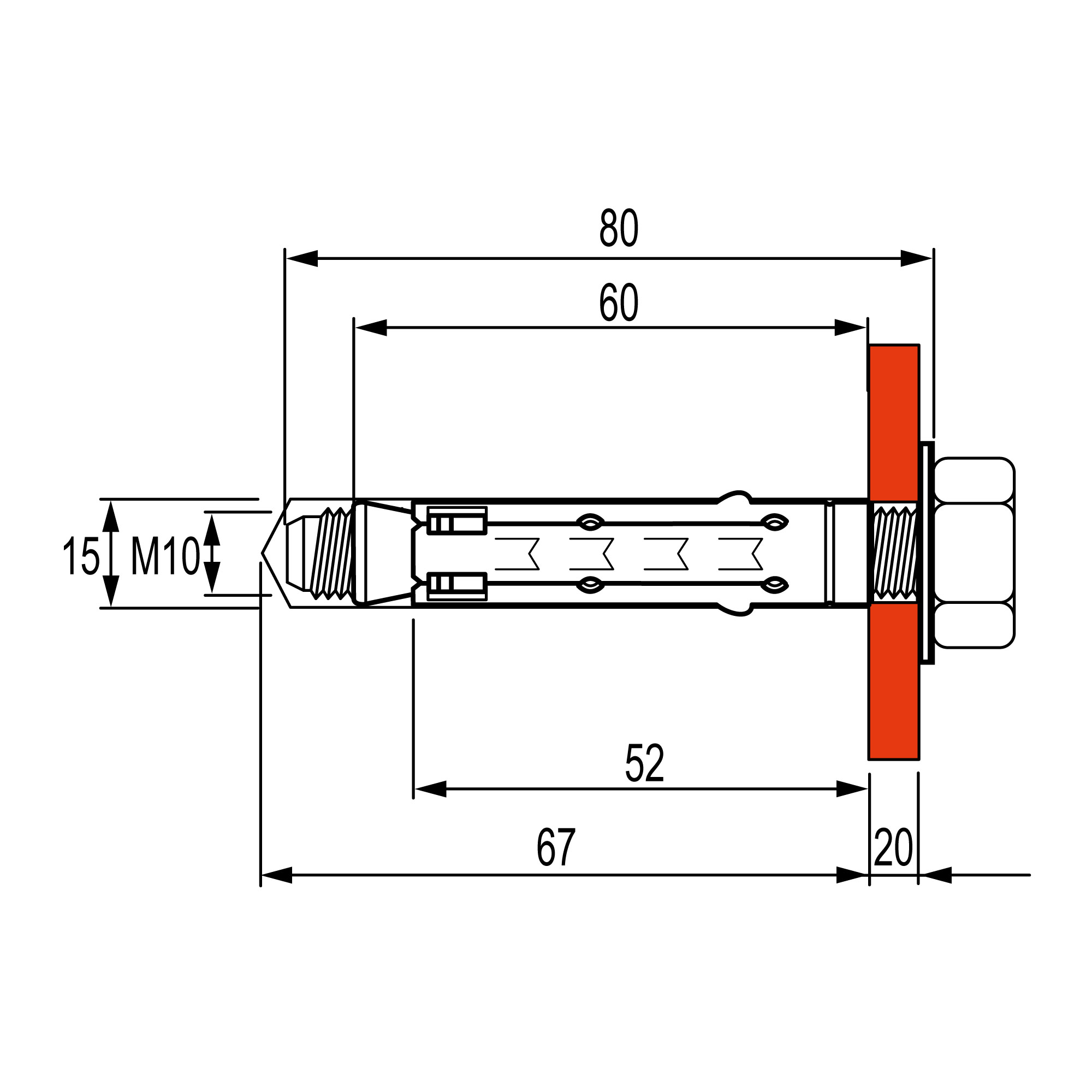

Model | Impact |
Surface protection | Galvanic/electrolytic zinc plated |
Min. drill hole depth, mm | 67 |
Material sleeve | Steel |
Length, mm | 60 |
Thread size (metric) | 10 |
Drill hole diameter, mm | 15 |
Self boring | Yes |
App. load pull zone, kN | 20.6 |
With approval | Yes |
Fastening provision | Stud |
Material | Pre-galvanized steel |
Threading | M10 |
Length | 60 mm |
Type | Anchor |
