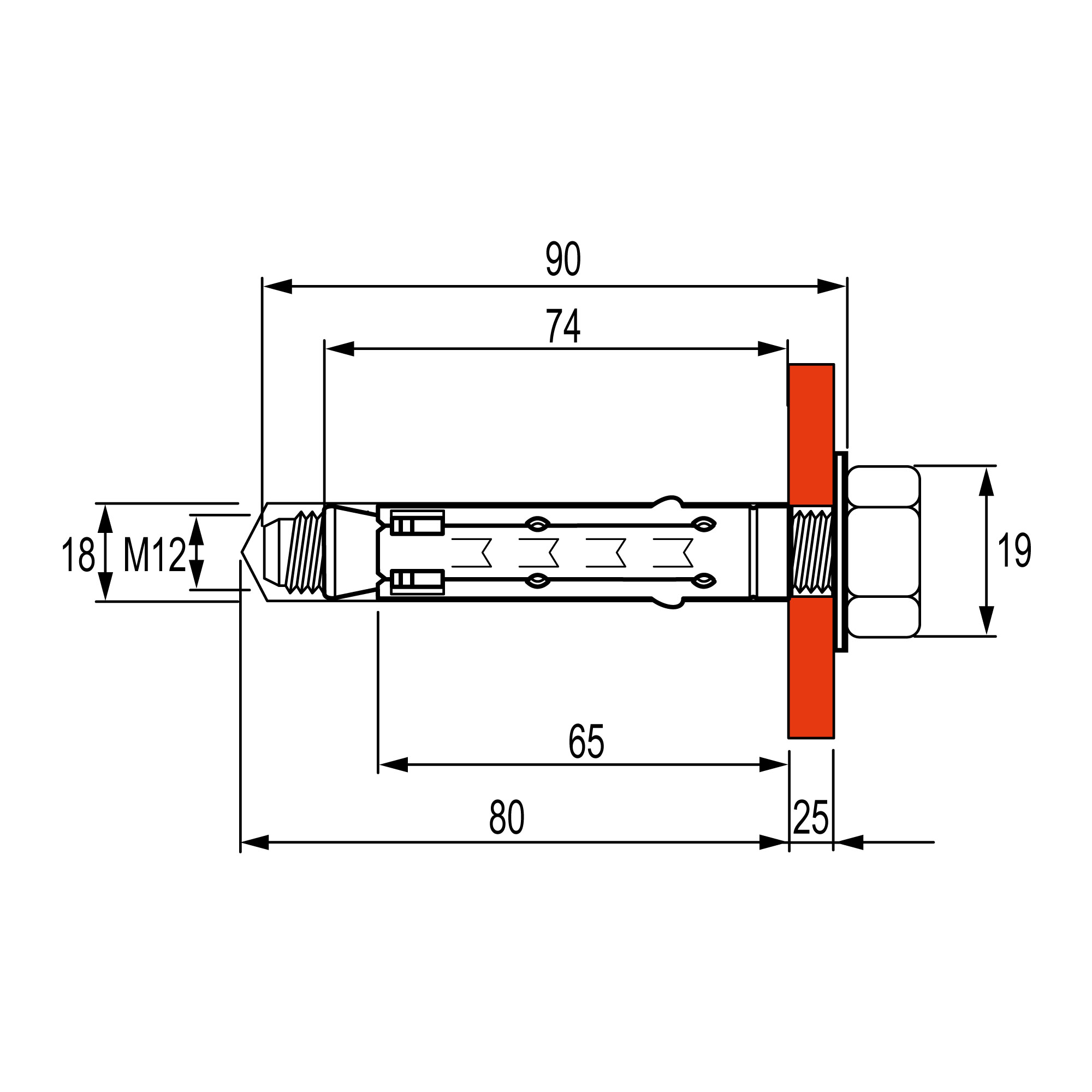

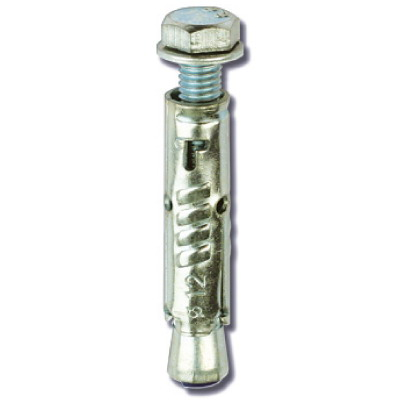

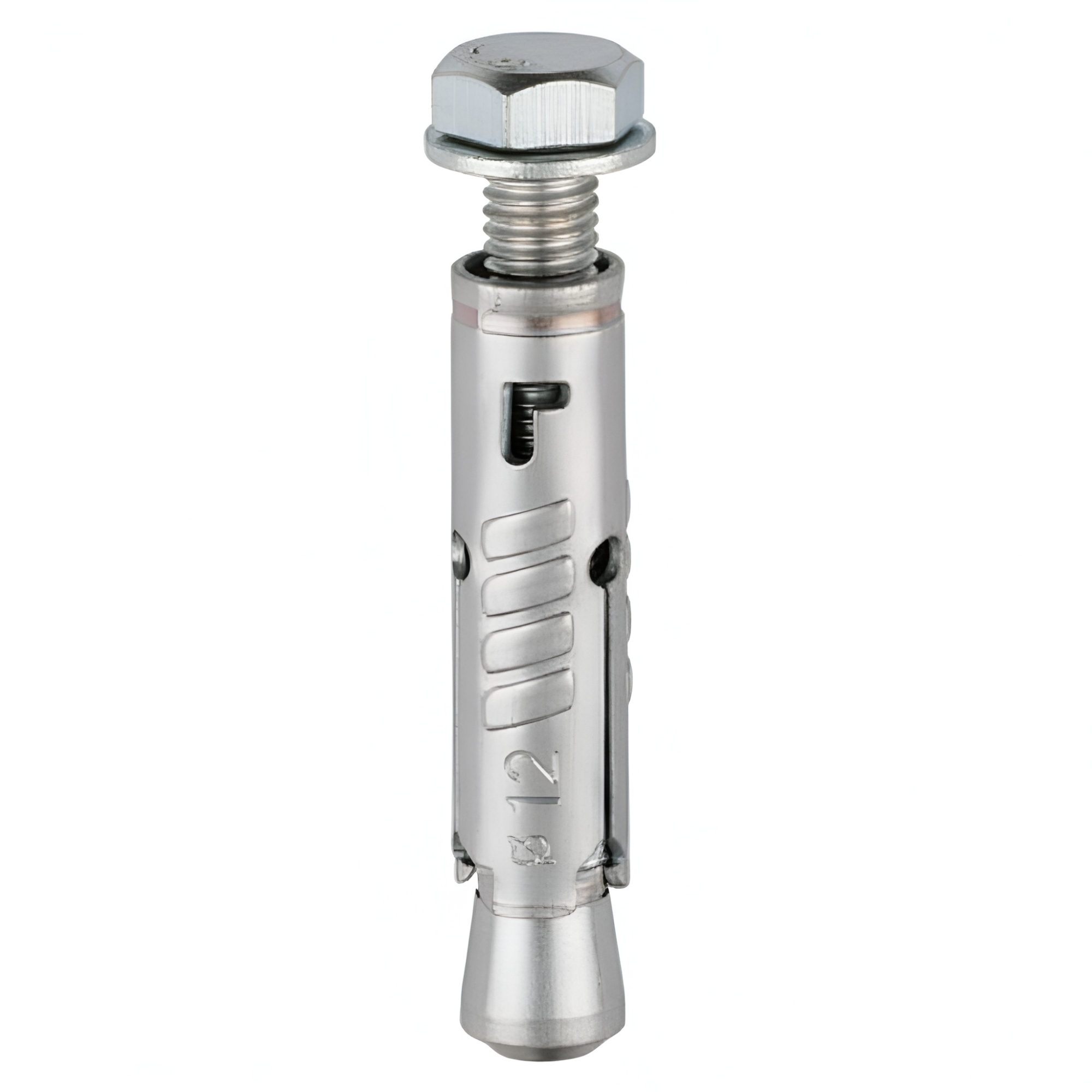

Sleeve metal anchor with bolt М12
Code: CM431274
Sleeve metal anchor with bolt М12
Code: CM431274
| Model | Impact |
| Surface protection | Galvanic/electrolytic zinc plated |
| Min. drill hole depth, mm | 80 |
| Material sleeve | Steel |
| Length, mm | 90 |
| Thread size (metric) | 12 |
| Drill hole diameter, mm | 18 |
| Self boring | Yes |
| App. load pull zone, kN | 26 |
| With approval | Yes |
| Fastening provision | L-hook screw |
| Material | Pre-galvanized steel |
| Threading | M12 |
| Length | 90 mm |
