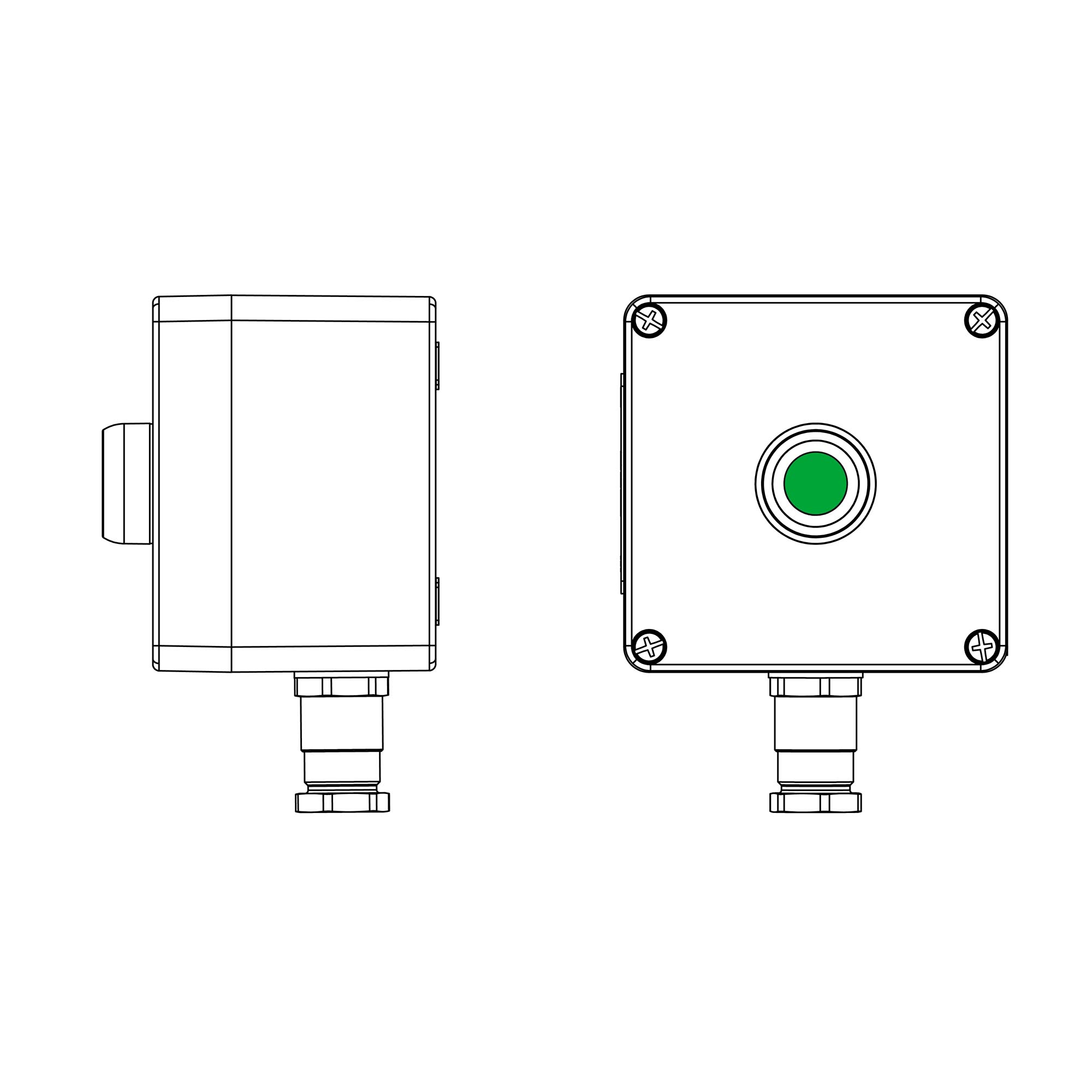

No name
Code: 2231.031.22.1215
No name
Code: 2231.031.22.1215
| Mounting method | Surface mounted (plaster) |
| Explosion-tested version | Yes |
| Impact strength | IK07 |
| Cover attachment | Screwed |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Material | Plastic |
| Element controls 1 | Push-button |
| Type 1 element | 1 pc. x P1 green 1NC+1NO |
| Type of a cable gland for: | unarmored cable |
| Installation side: C | 1 pc. x outer D: 5,8-12 mm |
| Material | PVC |
| Ex | d e, tb |
| Electrical equipment group | IIC hydrogen |
| Geometric dimensions | 120x120x90 mm |
| Number of controls | 1 pc. |
