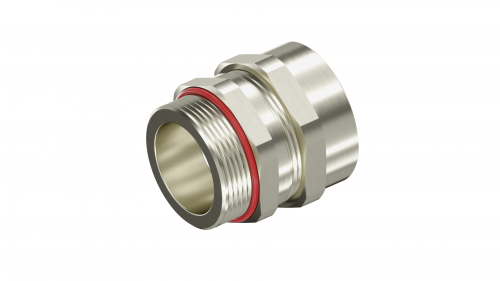

ANS explosion-proof cable gland for unarmoured cable, single sealing M40x1,5 D21-30mm. Nickel-plated brass. IP66/68

Code: 6018ANSEKGM5SB

ANS explosion-proof cable gland for unarmoured cable, single sealing M40x1,5 D21-30mm. Nickel-plated brass. IP66/68

Code: 6018ANSEKGM5SB
Material Metal
Degree of protection (IP) IP66
For Ex-zone gas 1, 2
Explosion-tested version Yes
Colour Light grey
Model Straight
Halogen free Yes
Surface protection Nickel-plated
Material quality Brass
Thread type Metric
For Ex-Zone dust 20, 21, 22
Shock resistant Yes
Type of a cable gland for: unarmored cable
Threading M40х1,5 Metric
Diameter of cable, mm from 21 to 30
Marking II 2G Ex db IIC Gb / II 2G Ex eb II Gb / II 2D Ex tb IIIC Db
Temperature range during operation, °С from - 65 to +130
Product type Cable input for tubes
Type of a cable gland for: unarmored cable
Material Nickel plated brass
