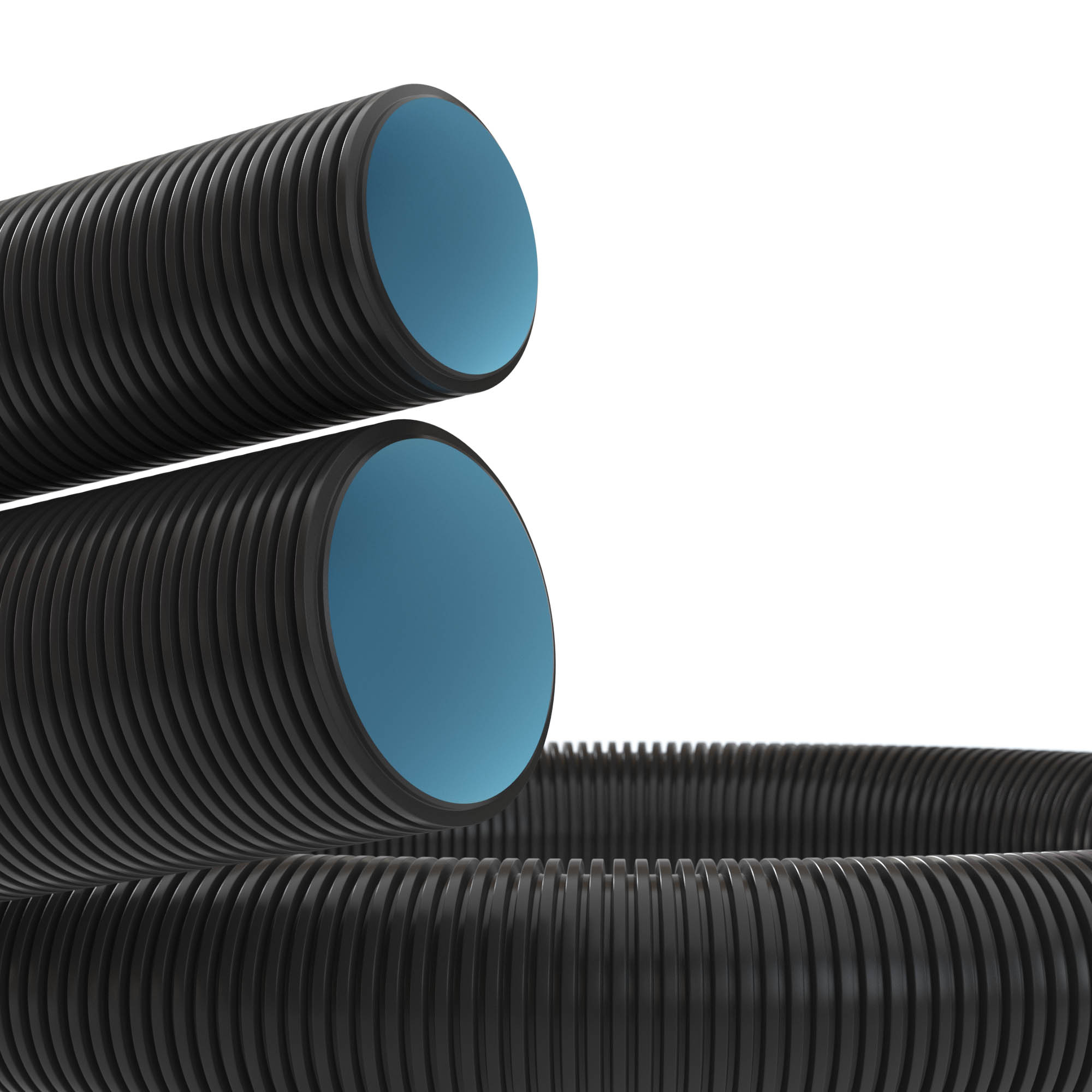

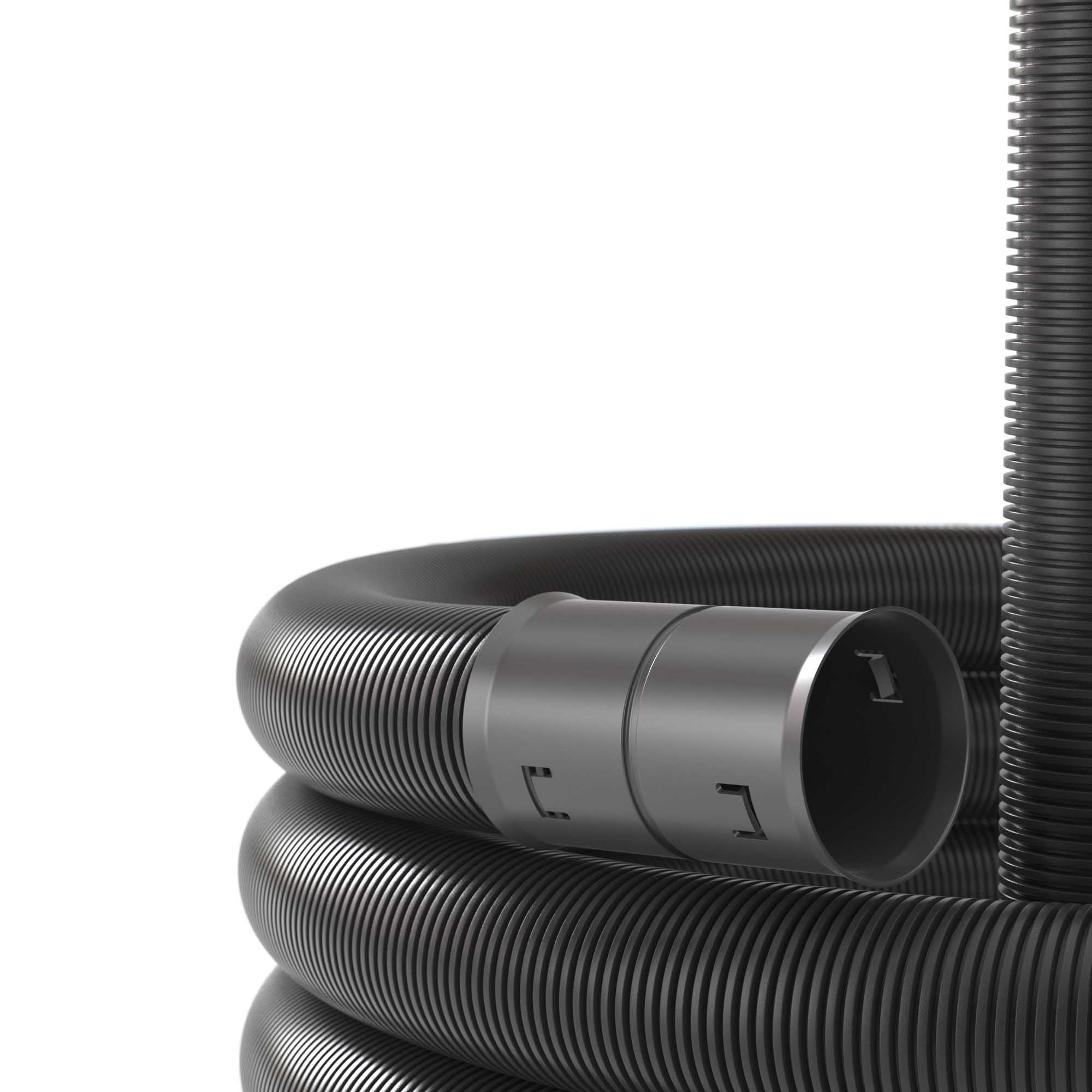

Double-wall tube HDPE outdoor flex. ? 200 mm, SN 6, V0, UF, with pull, 35 m in coil, black color

Code: 151920

Double-wall tube HDPE outdoor flex. ? 200 mm, SN 6, V0, UF, with pull, 35 m in coil, black color

Code: 151920
Colour Black
Outer diameter, mm 200
Inner diameter, mm 172
Material Polyethylene
Surface mounted Да
Outdoor installation Да
Suitable for underground installation No
With sleeve Да
High conducting inner coating Да
Color Black
Material PVC
-5°С ... +60°С -25°С ... +90°С
Ingress Protection rating, IP IP44 (IP55)
от -25°С до +60°С from -55°С to +90°С
Cord for wires Yes
ТУ 2248-012-47022248-2009 Technical specifications 2248-047-47022248-2015
3 года 2 years
15 лет 2 years
Length 35000 mm
8 диаметров мм 8 diameters mm
Product type Double-walled pipes
Ring stiffness 6 kPa
Compression resistance 680 N
Complete set of broaching Yes
Packing type Coil
Packing standards 35m
