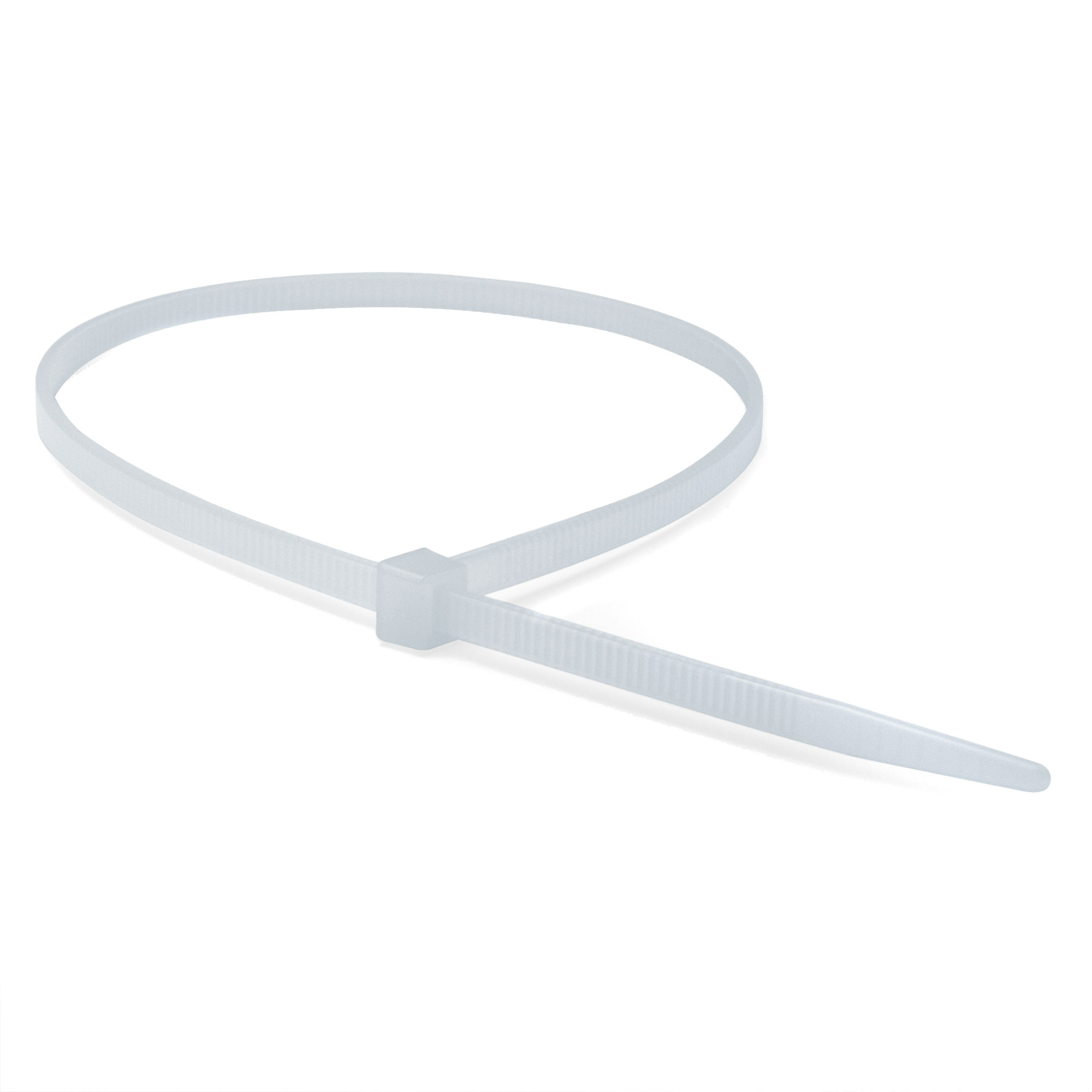

Cable ties P6.6 standard white, 12,5х850 (new analog 25241SR )
Code: 25241
Cable ties P6.6 standard white, 12,5х850 (new analog 25241SR )
Code: 25241
Colour | White |
Model | Internal toothing |
Halogen free | Yes |
Length belt/tape/tie, mm | 850 |
Text strip | None |
Surface protection | Plastic-coated |
Material quality | Polyamide (PA) |
Material | Plastic |
Tie thickness, mm | 2 |
Solvable fastener | Yes |
Band closure | Plastic lip/-cam |
Max. bundle diameter, mm | 255 |
Min. holding force, N | 1080 |
Band width, mm | 12.5 |
Mounting temperature, °C | -10...60 |
Operating temperature, °C | -40...85 |
Type of fastening | Other |
Inflammability class of insulation material according to with UL94 | V2 |
Product type | Cable ties, polyamide 6.6 |
Accessories
Drawings
Seria | Name | Eplan |
---|---|---|
Cable ties Quadro
|
Certificates
Name | Document |
---|---|
