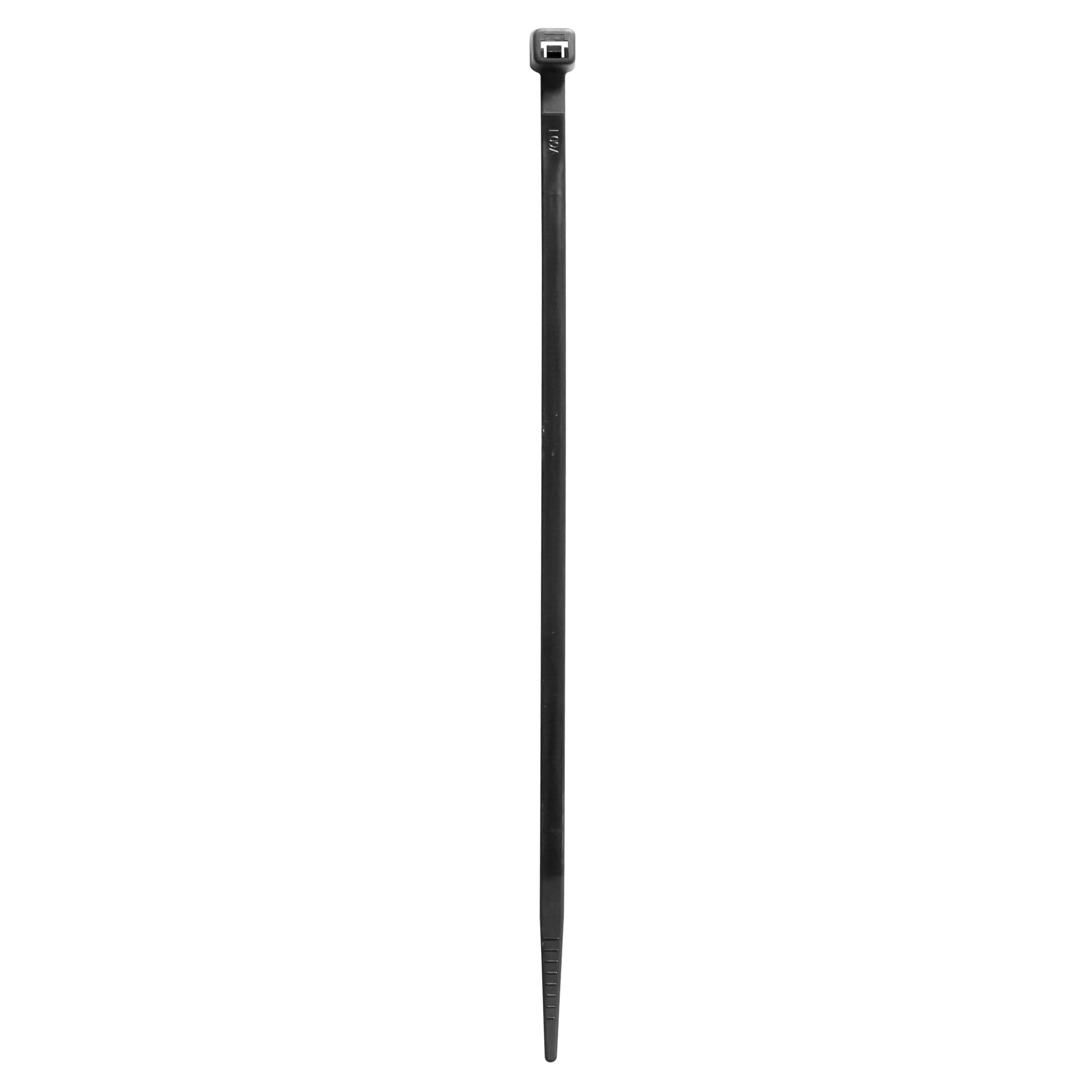

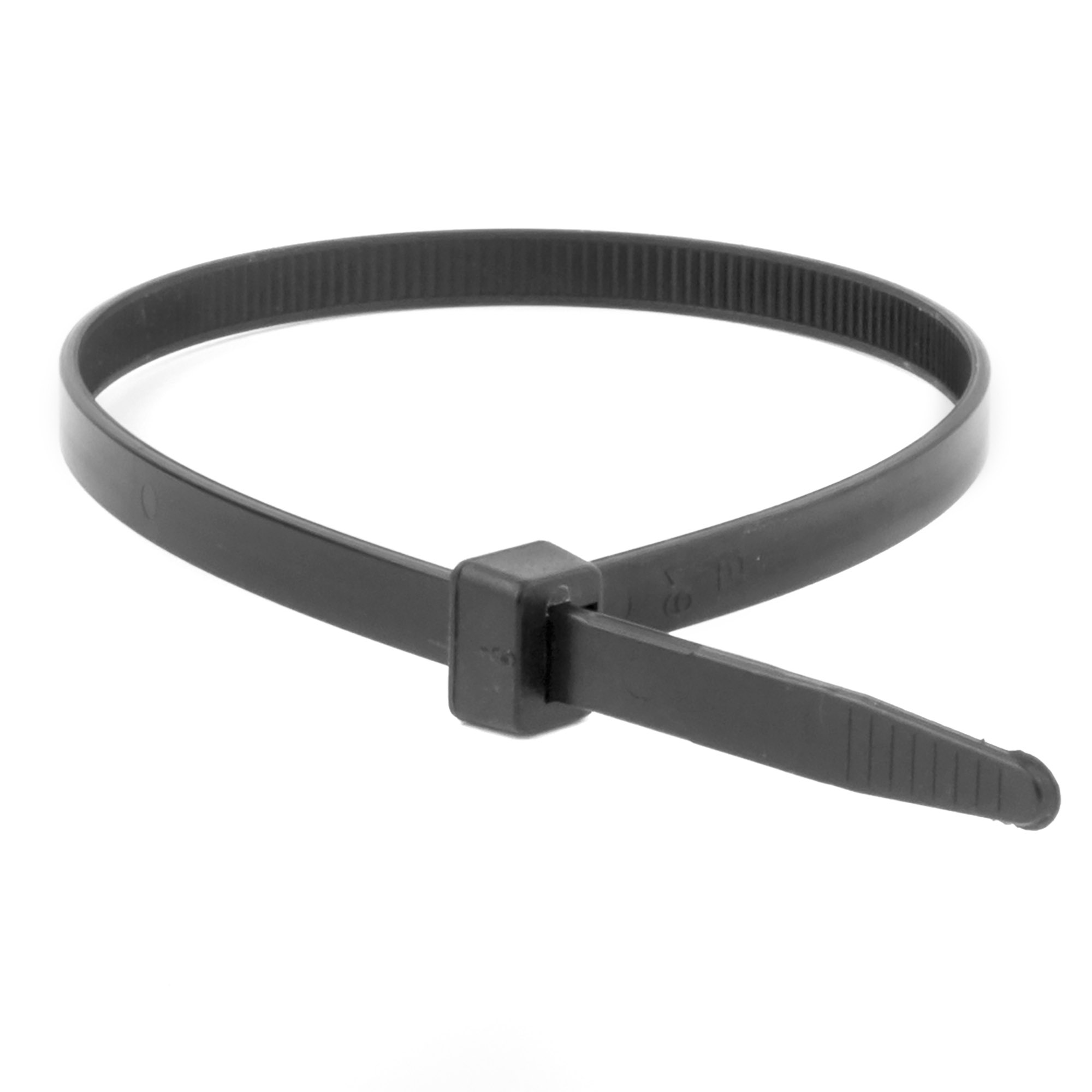

Cable Tie P6.6 standart, black, 12,4x230

Code: 25335SR

Cable Tie P6.6 standart, black, 12,4x230

Code: 25335SR
Colour Black
Model Internal toothing
Halogen free Yes
Length belt/tape/tie, mm 230
Text strip None
Surface protection Plastic-coated
Material quality Polyamide (PA)
Material Plastic
Operating temperature, °C -40...85
Inflammability class of insulation material according to with UL94 V2
Tie thickness, mm 1.9
Solvable fastener Yes
Transparent Yes
Band closure Plastic lip/-cam
Max. bundle diameter, mm 57
Min. holding force, N 1200
Band width, mm 12.4
Mounting temperature, °C -10...85
Type of fastening Other
Drawings
Seria Name Eplan
Cable ties Quadro
