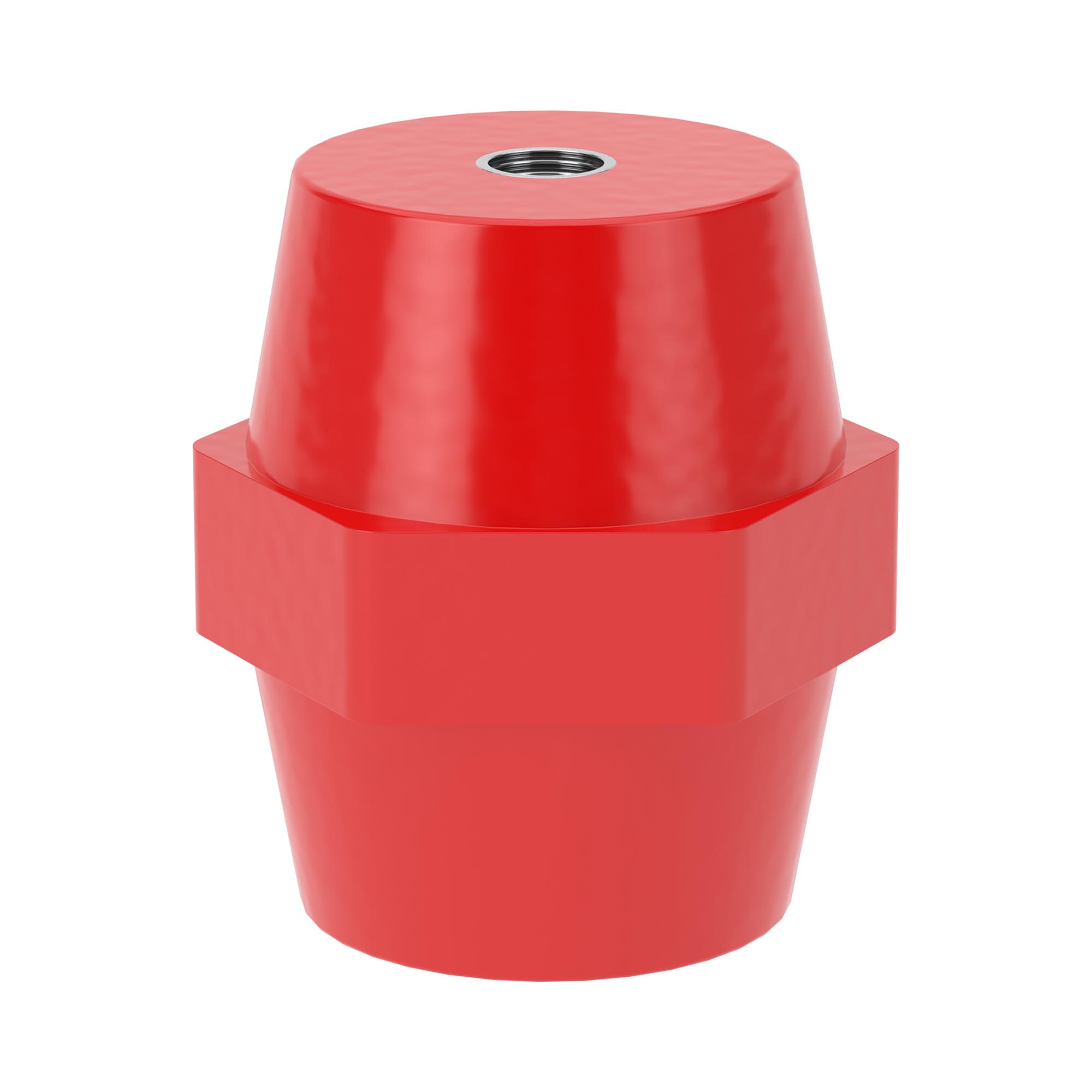

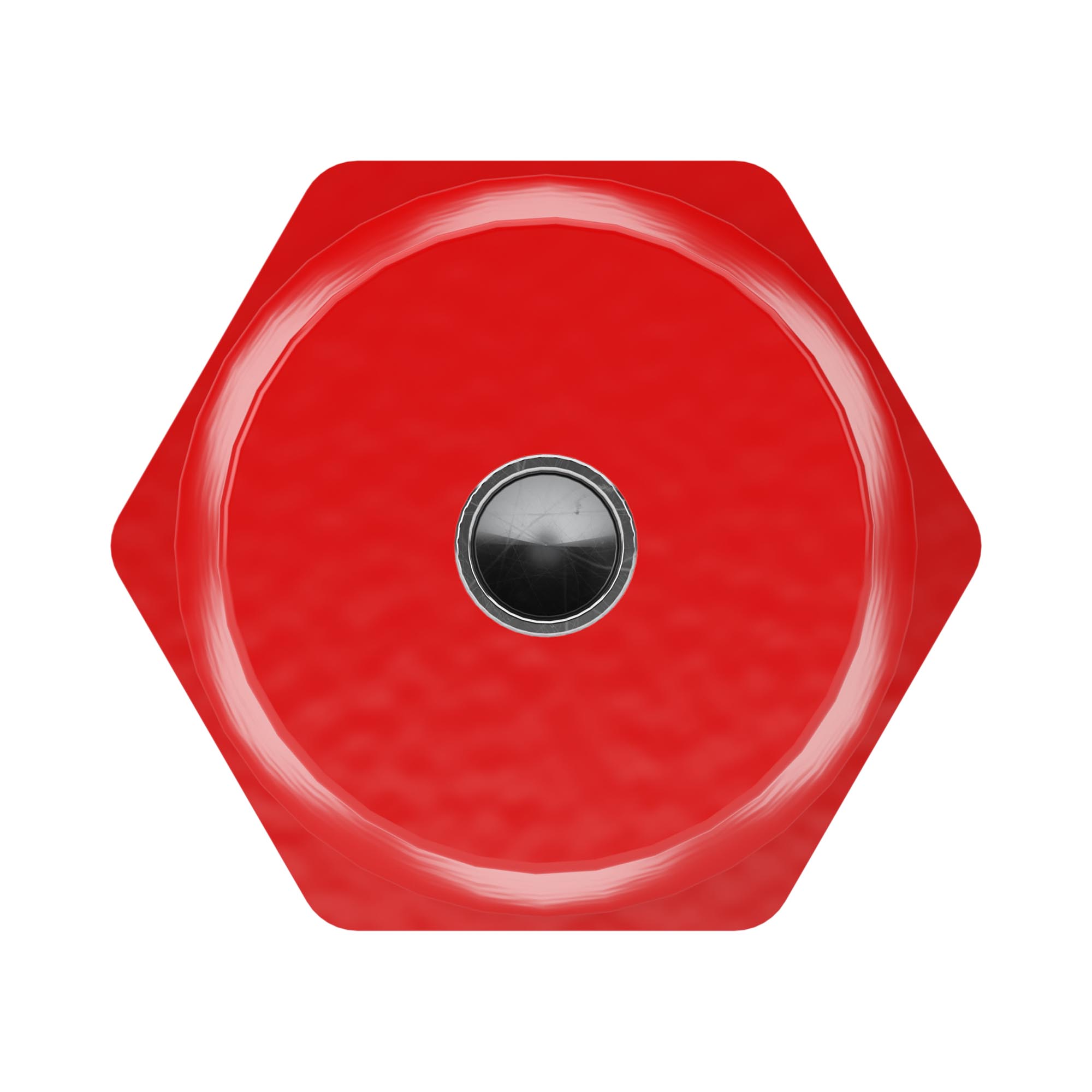

Busbar isolator 80х65 m12

Code: ISBK8071
Busbar isolator 80х65 m12
Busbar isolator 80х65 m12

Busbar isolator 80х65 m12

Code: ISBK8071
Bolt dimension (metric) 12
Length, mm 80
Outer diameter, mm 65
Product type Busbar isolators
Drawings
Seria Name Eplan
DIN-rails and accessories - "Quadro"
The System "Quadro"
RAR
27.23 Mb
Certificates
Name Document
Quadro_Busbar isolator - Exemption letter to Busbar isolator for сertificate of conformity to GOST R
PDF
5.56 MB
Quadro_Busbar isolator - Exemption letter for busbar isolator for fire certification_1
PDF
1.22 MB
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
