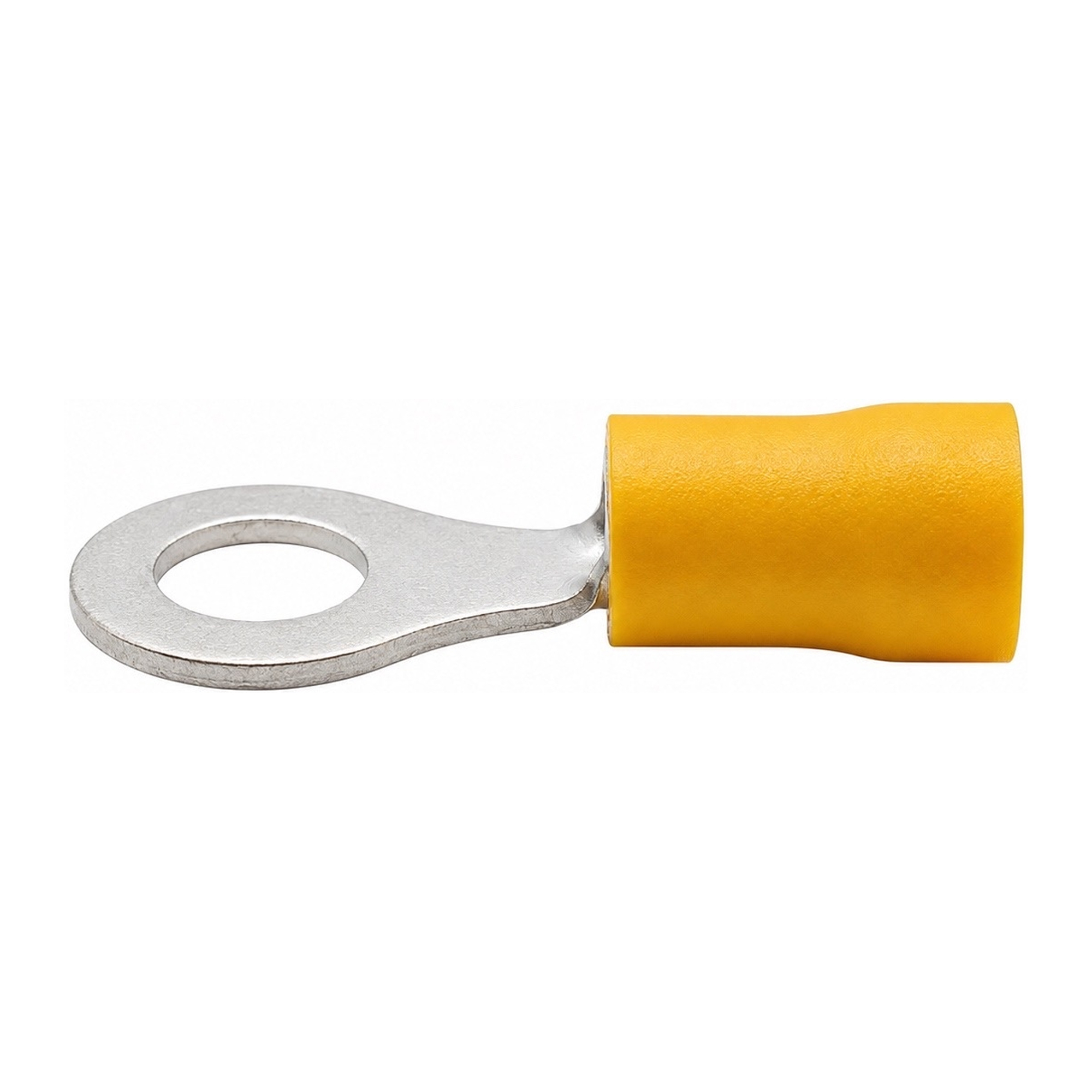

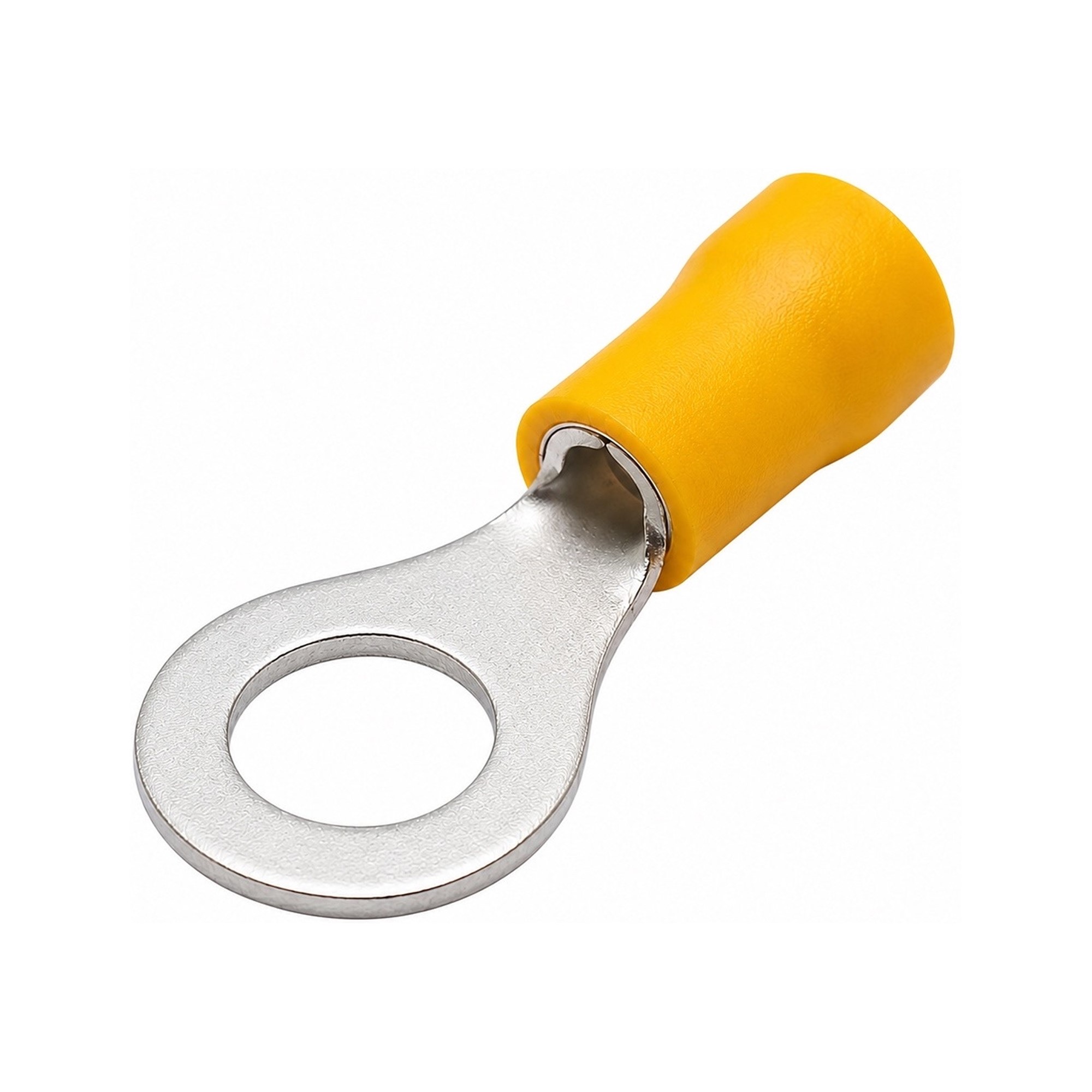

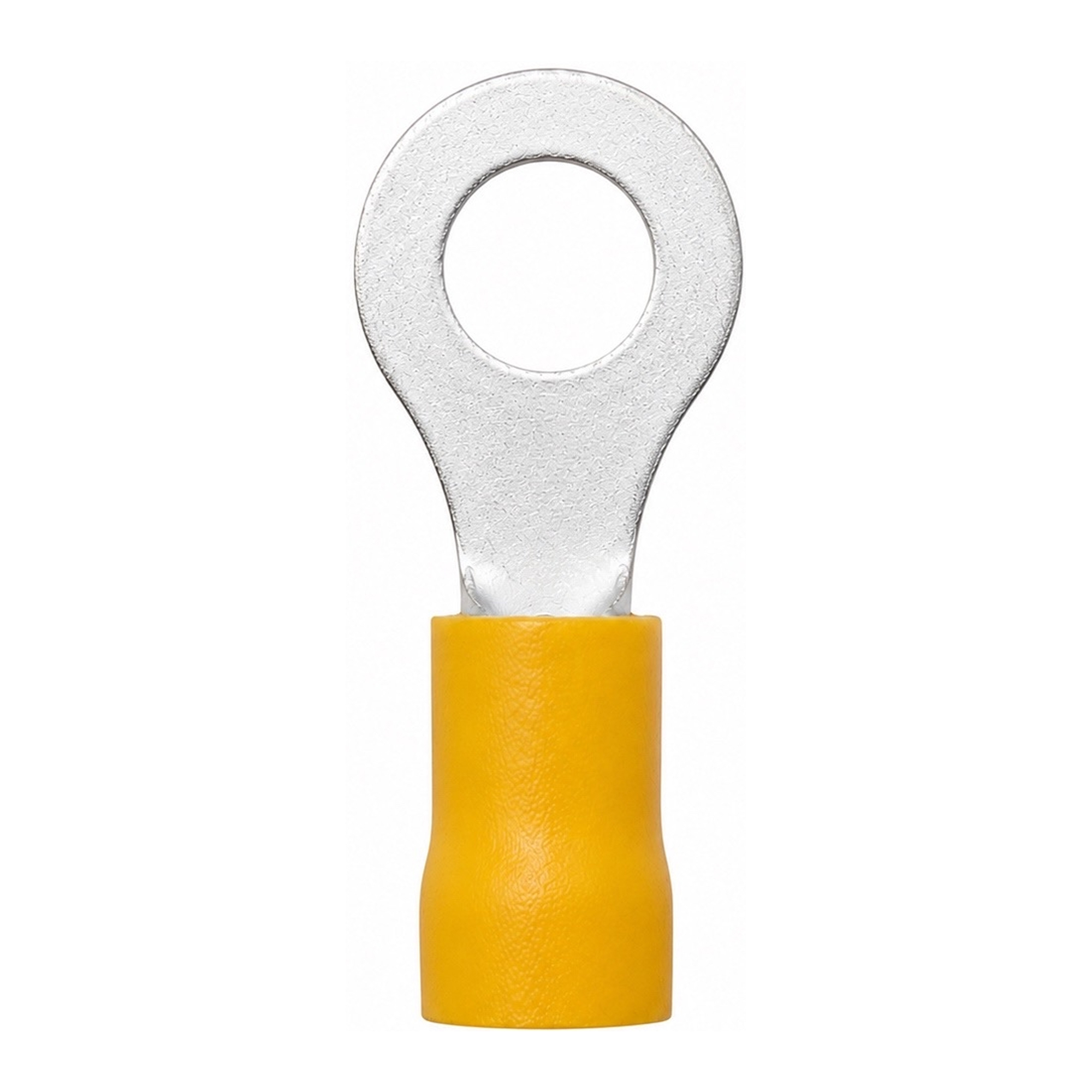

Fork-type cable lug, PVC, double sleeve, 6 sq. d.8,4

Code: 2C8P-DS-PVC

Fork-type cable lug, PVC, double sleeve, 6 sq. d.8,4

Code: 2C8P-DS-PVC
Flange shape Ring shape
Bolt dimension (metric) 8
Nominal cross section, mm² 6...6
According to DIN Yes
Material Copper
Surface protection Tinned
Insulation Polyvinyl chloride (PVC)
Max. current (Imax), A 48
For pull protected connections Yes
Reel/roll packaging Yes
AWG-range 10...10
Suitable for fine strand conductors Yes
Suitable for flat conductors Yes
Suitable for high temperatures (to 650 °C) Yes
Suitable for insulated varnish Yes
Suitable for solid cores Yes
Useful for stranded conductors Yes
Suitable for round conductors Yes
Colour insulation Grey

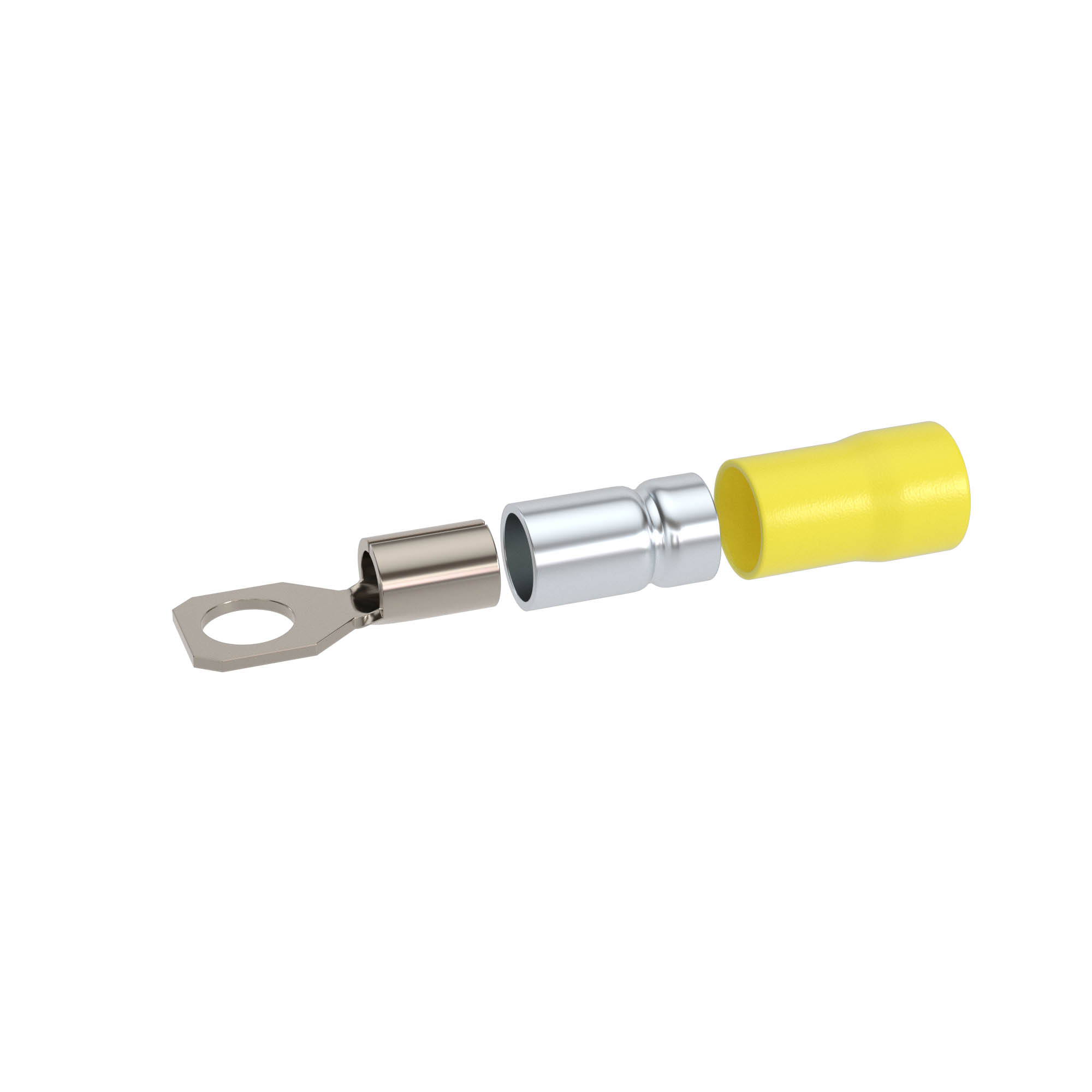

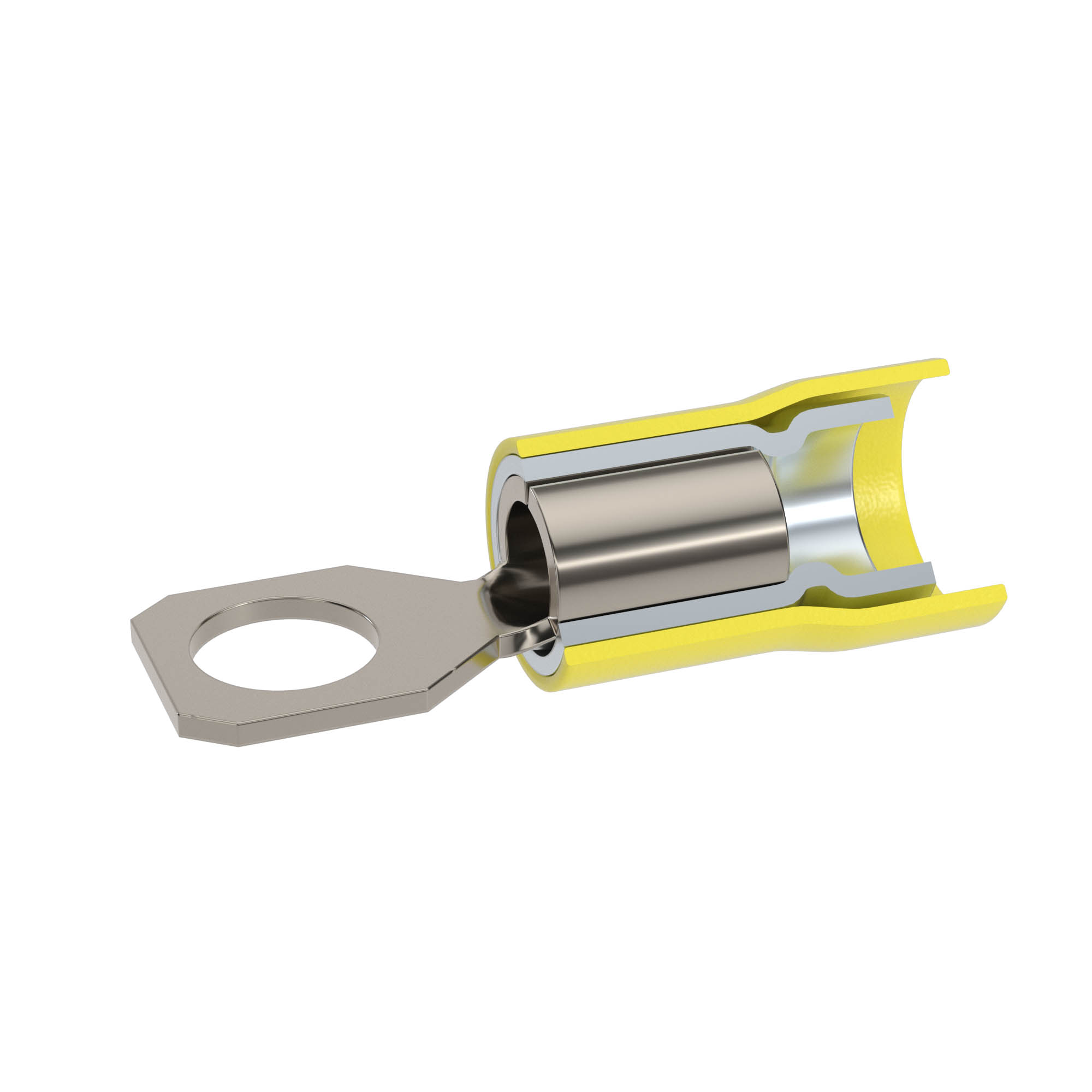

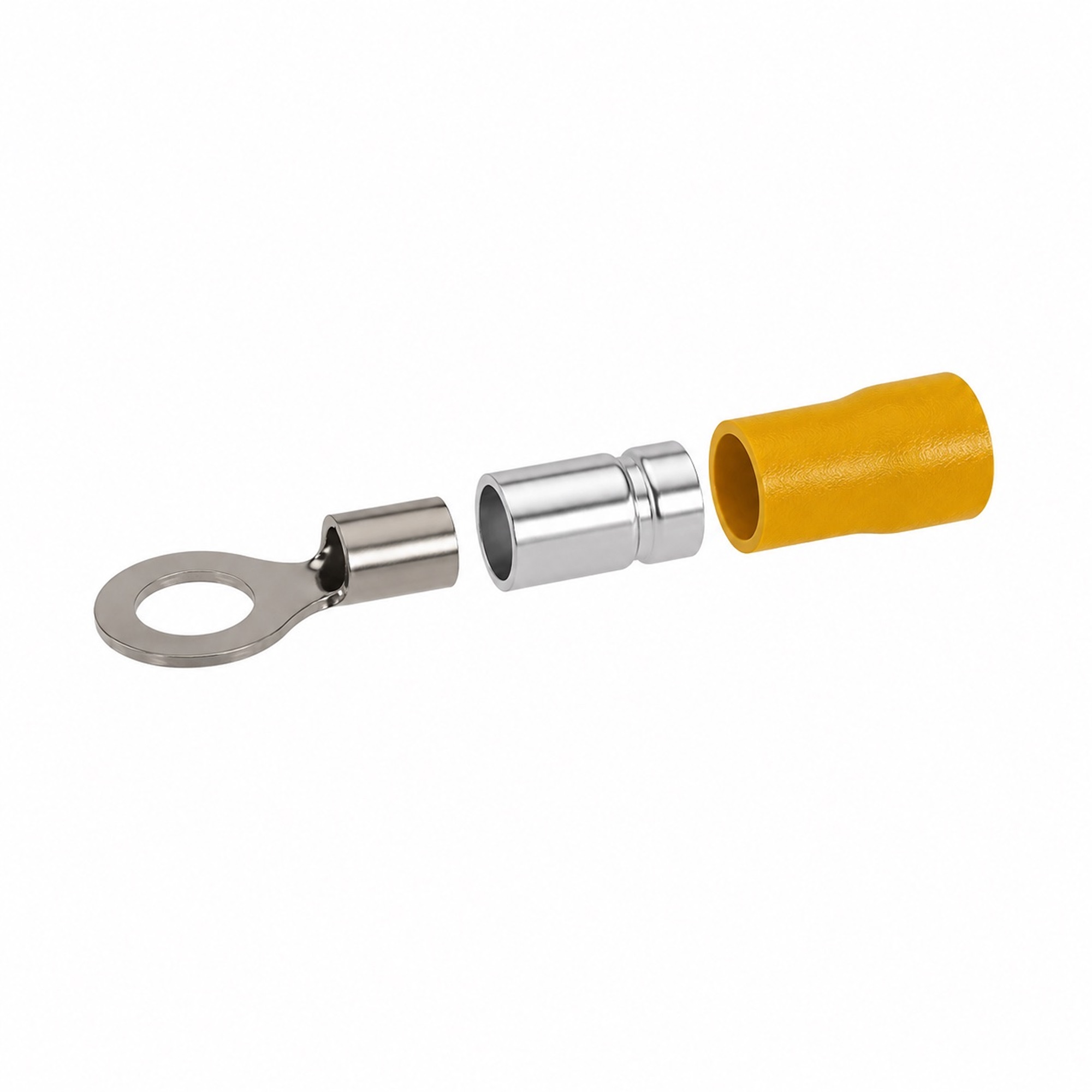

Sleeve type double
Drawings
Seria Name Eplan
Cable terminals -"Quadro"
