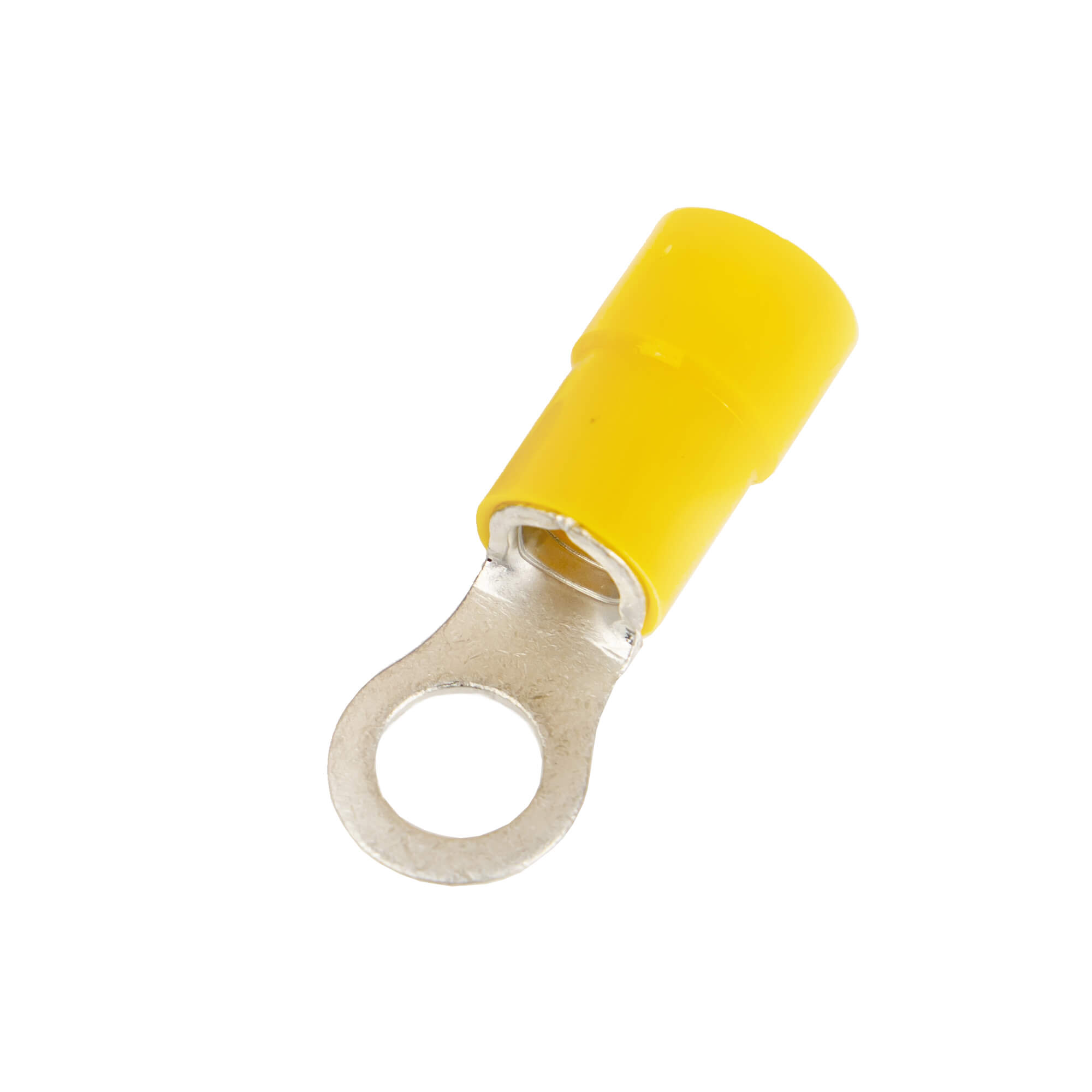

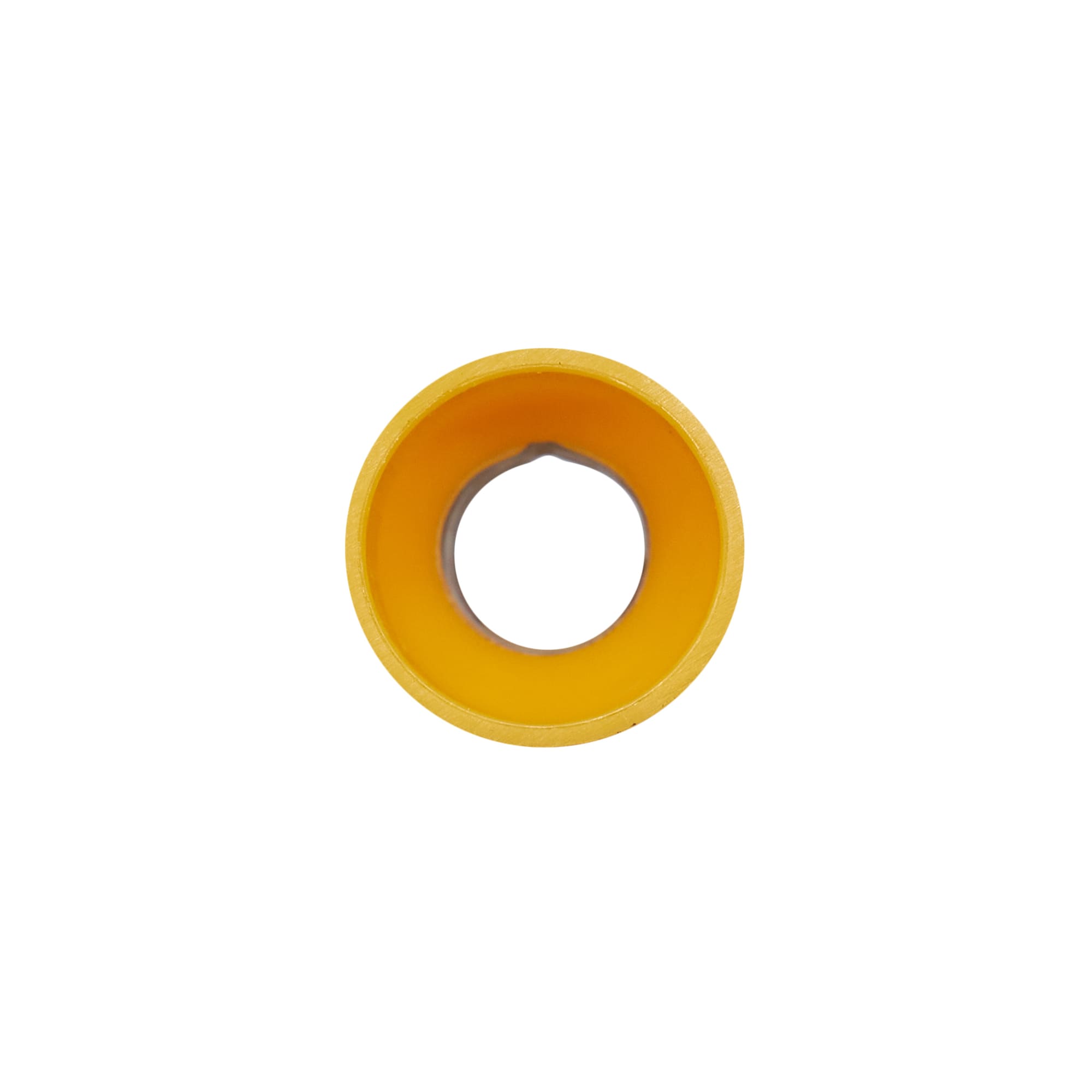

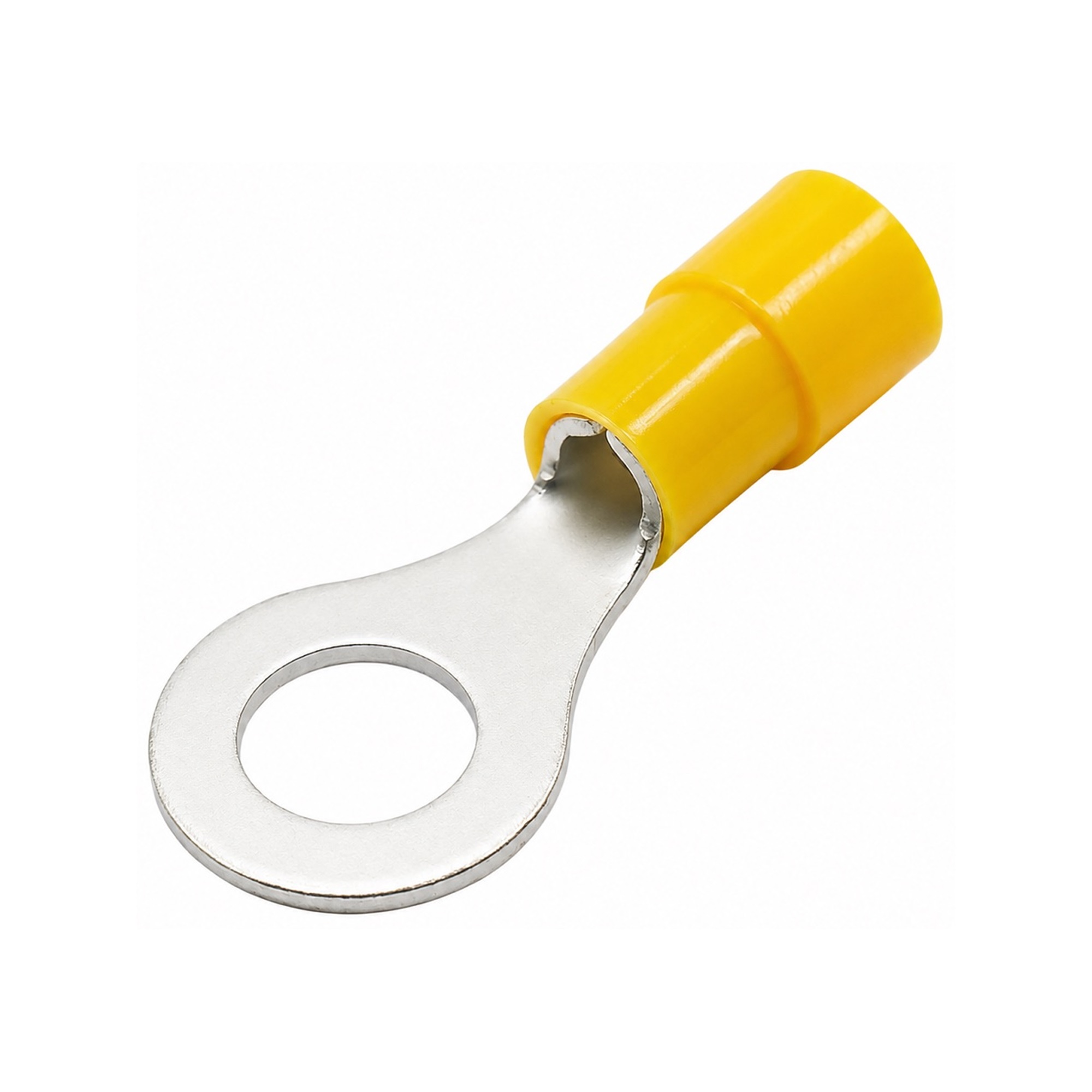

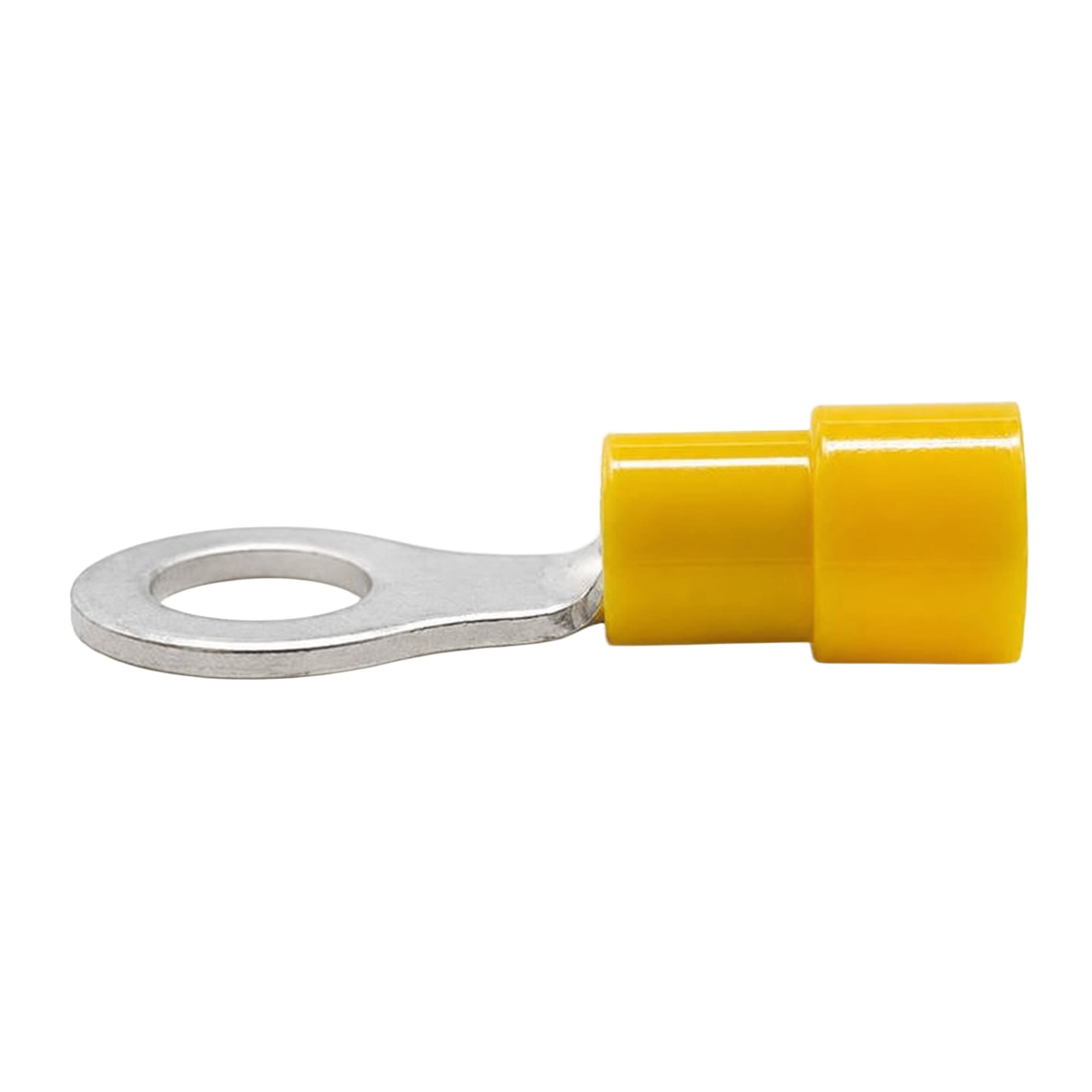

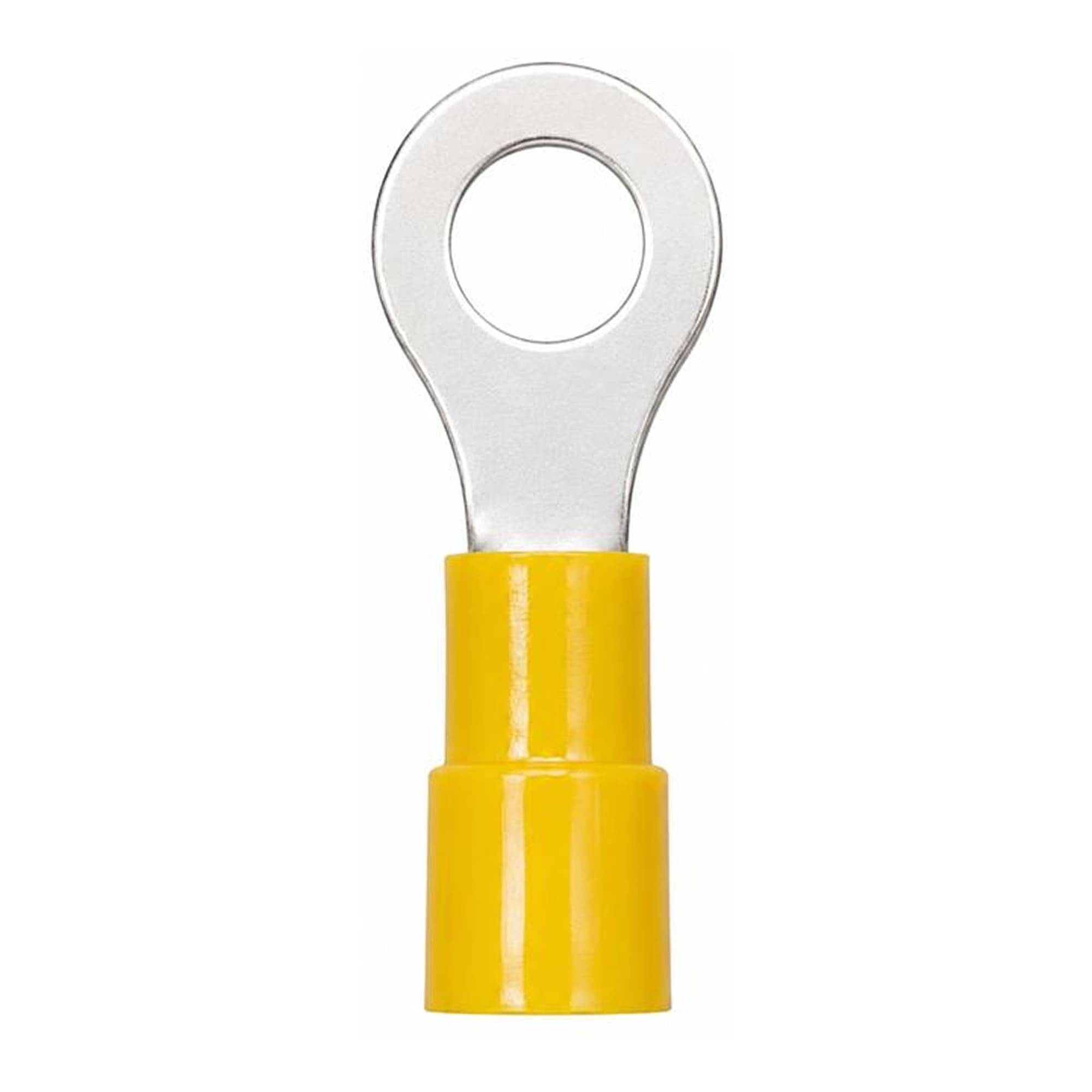

Ring terminal, PA, EasyEnter, 6 sq. d.8,4

Code: 2C8P-EE-PA

Ring terminal, PA, EasyEnter, 6 sq. d.8,4

Code: 2C8P-EE-PA
Flange shape Ring shape
Bolt dimension (metric) 8
Nominal cross section, mm² 6...6
According to DIN Yes
Material Copper
Surface protection Tinned
Insulation PA
Max. current (Imax), A 48
For pull protected connections Yes
Reel/roll packaging Yes
AWG-range 10...10
Suitable for fine strand conductors Yes
Suitable for flat conductors Yes
Suitable for high temperatures (to 650 °C) Yes
Suitable for insulated varnish Yes
Suitable for solid cores Yes
Useful for stranded conductors Yes
Suitable for round conductors Yes
Colour insulation Grey
Sleeve type single
