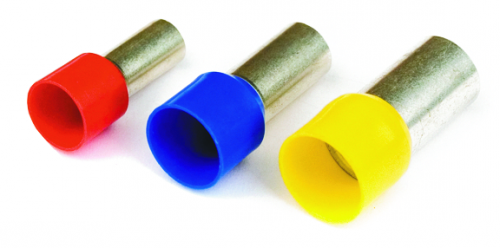

Insulated wire end ferrule for cable cross section 35sq.mm, contact length 18mm, red (changed on p/n IF35-18RD)
Code: 2ART512RL
Insulated wire end ferrule for cable cross section 35sq.mm, contact length 18mm, red (changed on p/n IF35-18RD)
Code: 2ART512RL
Removed from the product range
| Insulated | Yes |
| Surface protection | Tinned |
| Nominal cross section, mm² | 35 |
| Material | Copper |
| Colour | Red |
| Sleeve length, mm | 18 |
| Construction type | Standard |
| For cables resistant to short circuit | Yes |
| Reel/roll packaging | Yes |
| With identification flag | Yes |
| Insulation | Partially isolated |
| Flange shape | Sleeve |
| Product type | Pre-insulated terminals |
| nominal cross section | 35 mm² |
| Sleeve type | single |
