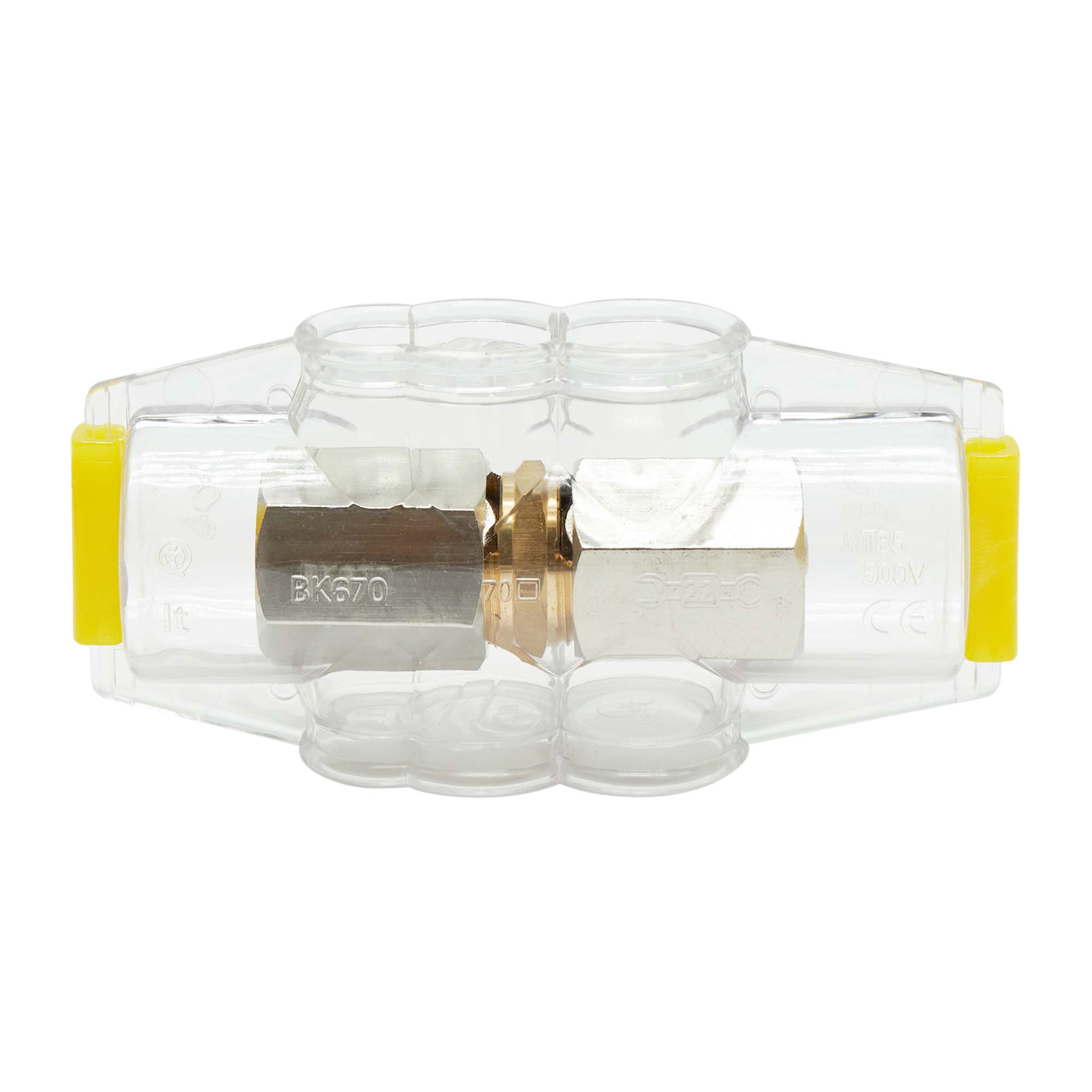

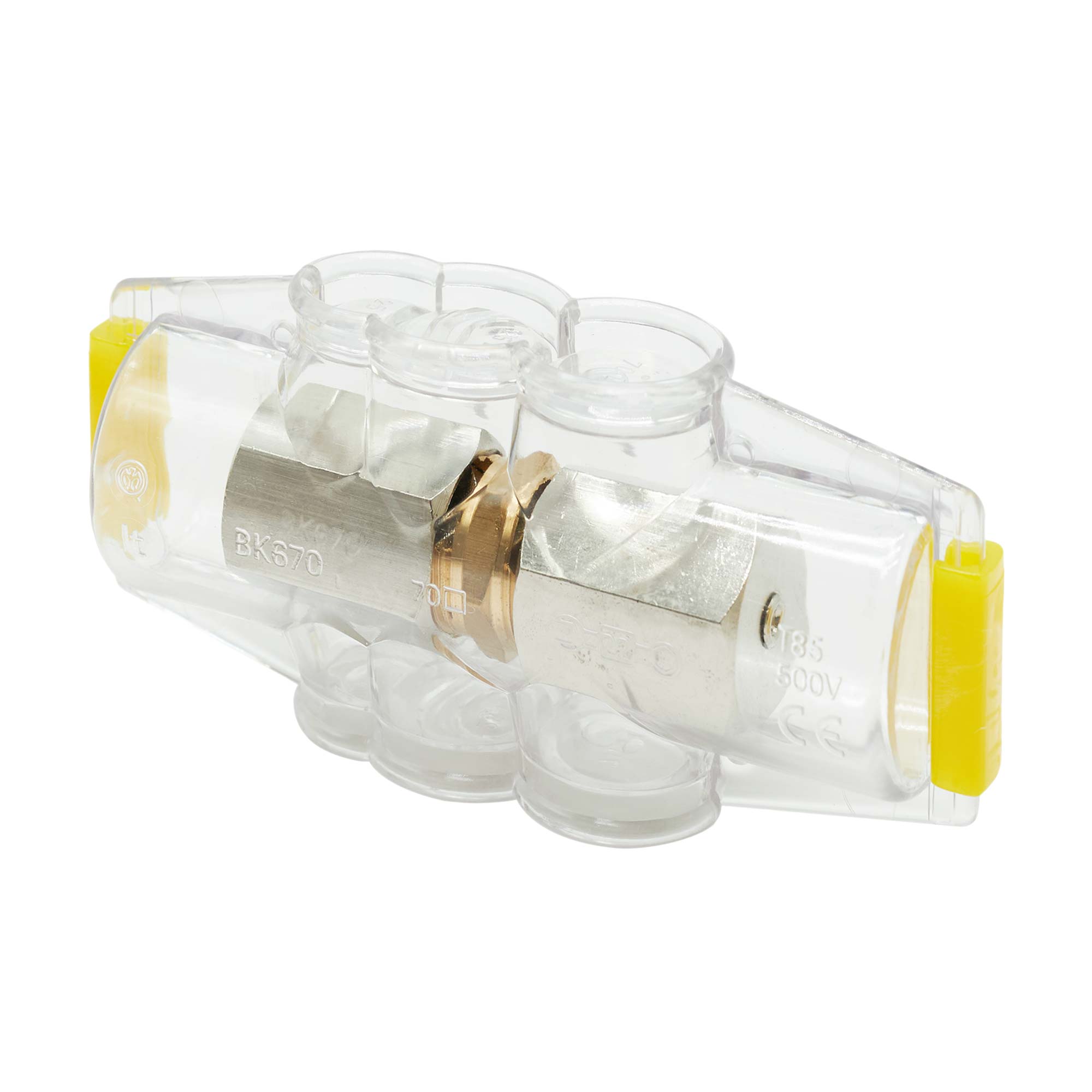

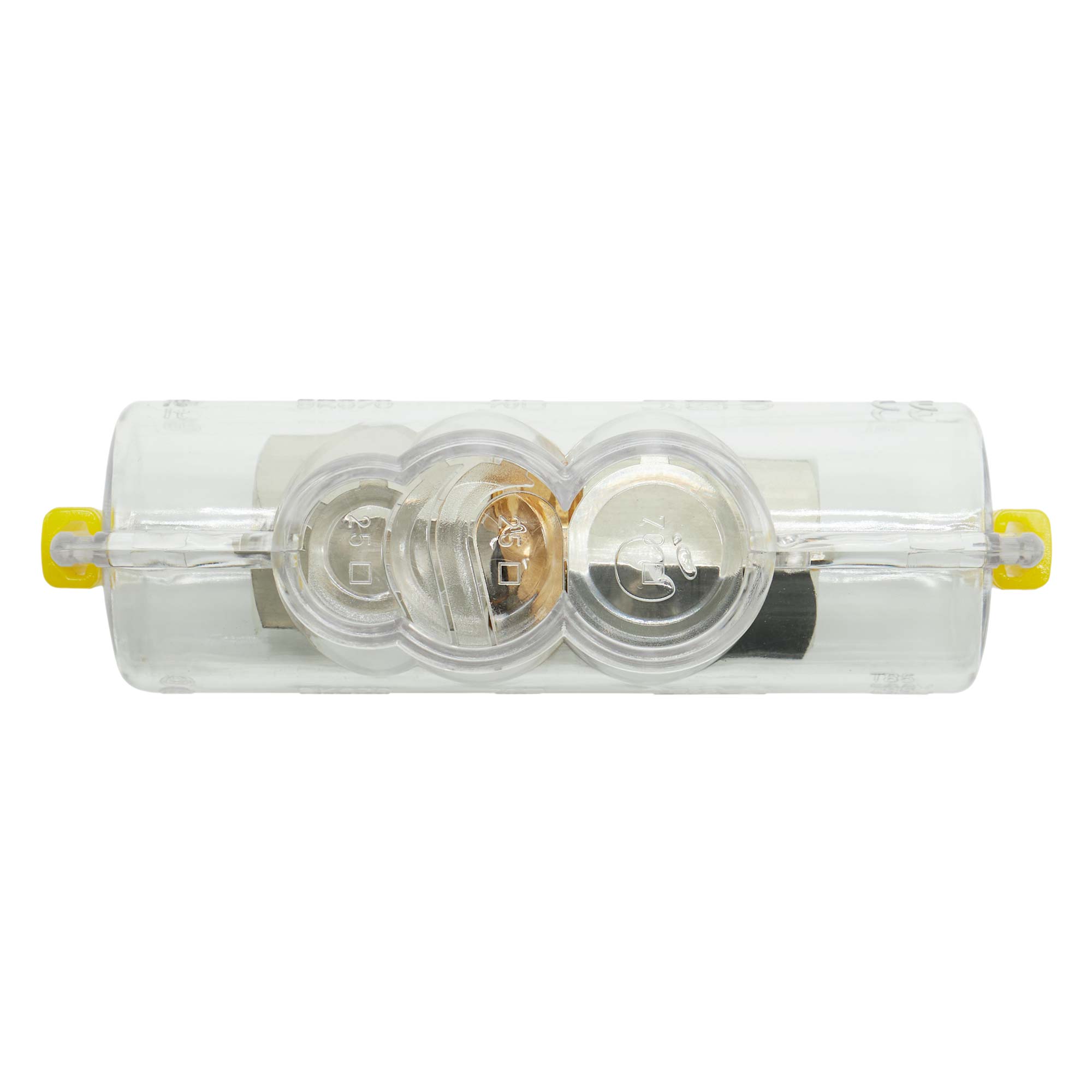

Universal Terminal Block 70/70/25mm²
Code: BK670
Universal Terminal Block 70/70/25mm²
Code: BK670
Mounting method | Other |
Colour | Other |
Rated voltage, V | 750 |
Number of poles | 1 |
Length, mm | 105.8 |
Operating temperature, °C | -5…85 |
Number of clamp positions per pole | 2 |
Width/grid dimension, mm | 31.2 |
Closing plate required | Нет |
Transparent | Нет |
Connectable conductor cross section multi-wired, mm² | 25...70 |
Explosion-tested version 'Ex e' | Нет |
Inflammability class of insulation material according to with UL94 | Other |
Type of electrical connection 1 | Spring clamp connection |
Type of electrical connection 2 | Spring clamp connection |
Material insulation body | Polycarbonate (PC) |
Connection position | Above |
Product type | Branch terminal blocks |
Drawings
Seria | Name | Eplan |
---|---|---|
Terminal blocks - "Quadro"
|
