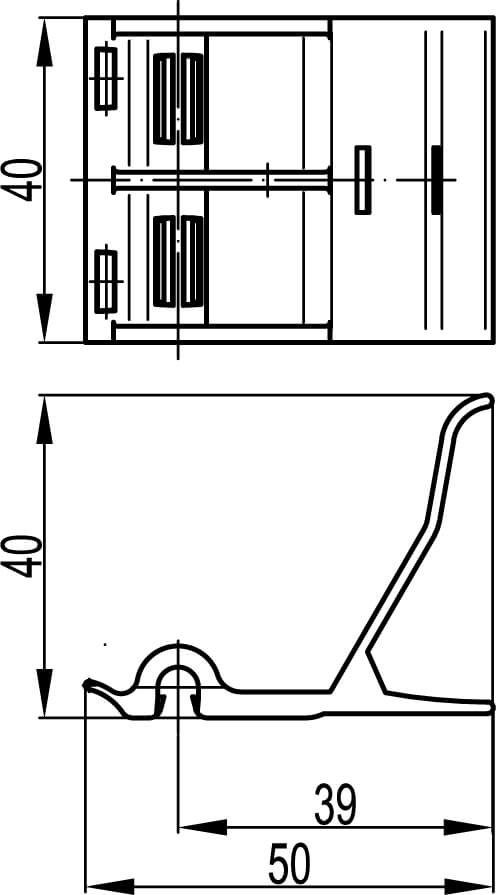

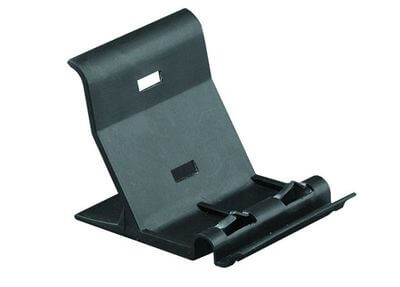

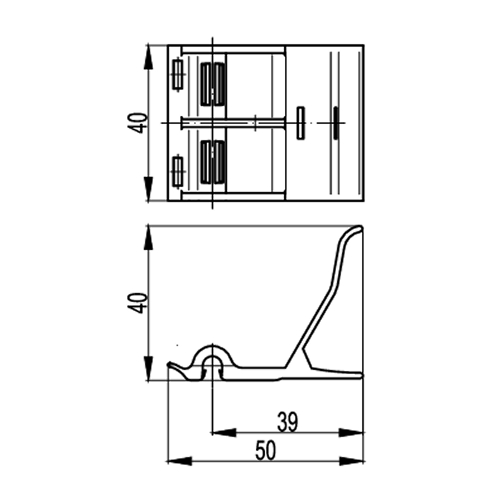

Fixator for cables (for ducts 90x50, 110x50 mm)

Name: Production complex DKC in Vladivostok
Address: Russia, 692490, Primorsky Krai, TOR Nadezhdinskaya, Nadezhdinskiy District, Central'nia st, 52, Nadezhdinskiy District, Primorsky Krai, 692490

Code: 09511

ETIM
?
Characteristics

Depth of wall duct, mm	38
Material	Plastic
Cover width, mm	50

Cover mounting	No
With potential equalization	No

Color	black
Material	PVC
Height, mm	38
Width, mm	50
Length, mm	39
Temperature of mounting, °C	5°С ... +60°С
Ingress Protection rating, IP	IP40

Temperature of operation, °C	5°С ... +60°С
Temperature of operation, °C	+60°C
Climate version	UHL4
Fire protection	It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Self-glueing base	false
Product type	Cable holder

Certificates

Name	Document
In-liner_In-liner Front - Sanitary-epidemiological conclusion for ducts	PDF 2.31 MB
In-liner_In-liner Front - Exemption letter for Sanitary-epidemiological conclusion for cable ducts and miniducts with accessories_1	PDF 1.14 MB
In-liner_In-liner Front - Fire safety certificates for miniducts TMR and floor ducts CSP-F	PDF 392.95 kB
"In-liner_In-liner Front" - Certificate of conformity to GOST R for miniducts TMR and floor ducts CSP-F	PDF 514.76 kB
Certificate of conformity to GOST R for on the cable ducts, a series of "In-liner" and "In-liner Front" and accessories	PDF 1.09 MB
The Certificate of expert opinion for cable ducts and miniducts	PDF 3.09 MB
