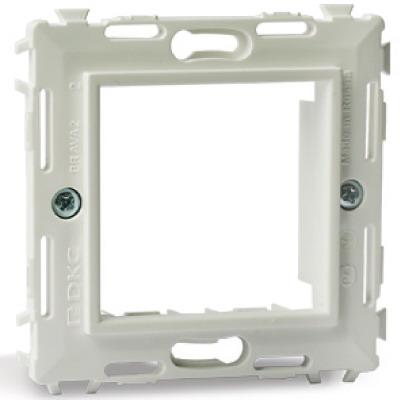

Support 2 mod. (1 post), beige RAL9001
Code: 75020SL
Support 2 mod. (1 post), beige RAL9001
Code: 75020SL
| Colour | Beige |
| Model | 2-fold |
| Halogen free | Yes |
| Surface protection | Decor |
| Material | Plastic |
| Mounting direction | Horizontal and vertical |
| Suitable for installation duct | Yes |
| Transparent | Yes |
| Surface finishing | Matt |

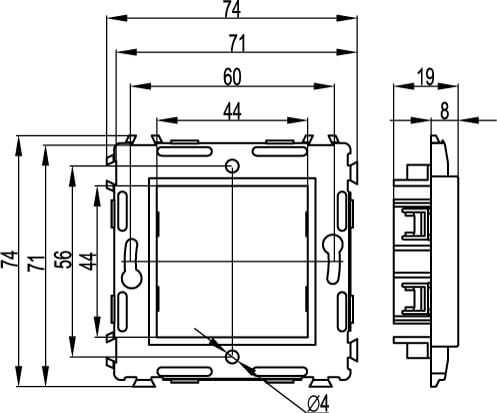

| Width of device, mm | 43 |
| Height of device, mm | 43 |
| Depth of device, mm | 19 |
| Material | ABC-plastic |
| Length, mm | 73 |
| Temperature of mounting, °C | 5°С ... +60°С |
| Width (nominal), mm | 73 |
| Ingress Protection rating, IP | IP40 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Climate version | UHL4 |
| Depth, mm | 19 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
| Color | Ivory |
| Type of installation | Concealed installation |
| Product type | Frame |
| Number of modules | 2 |
