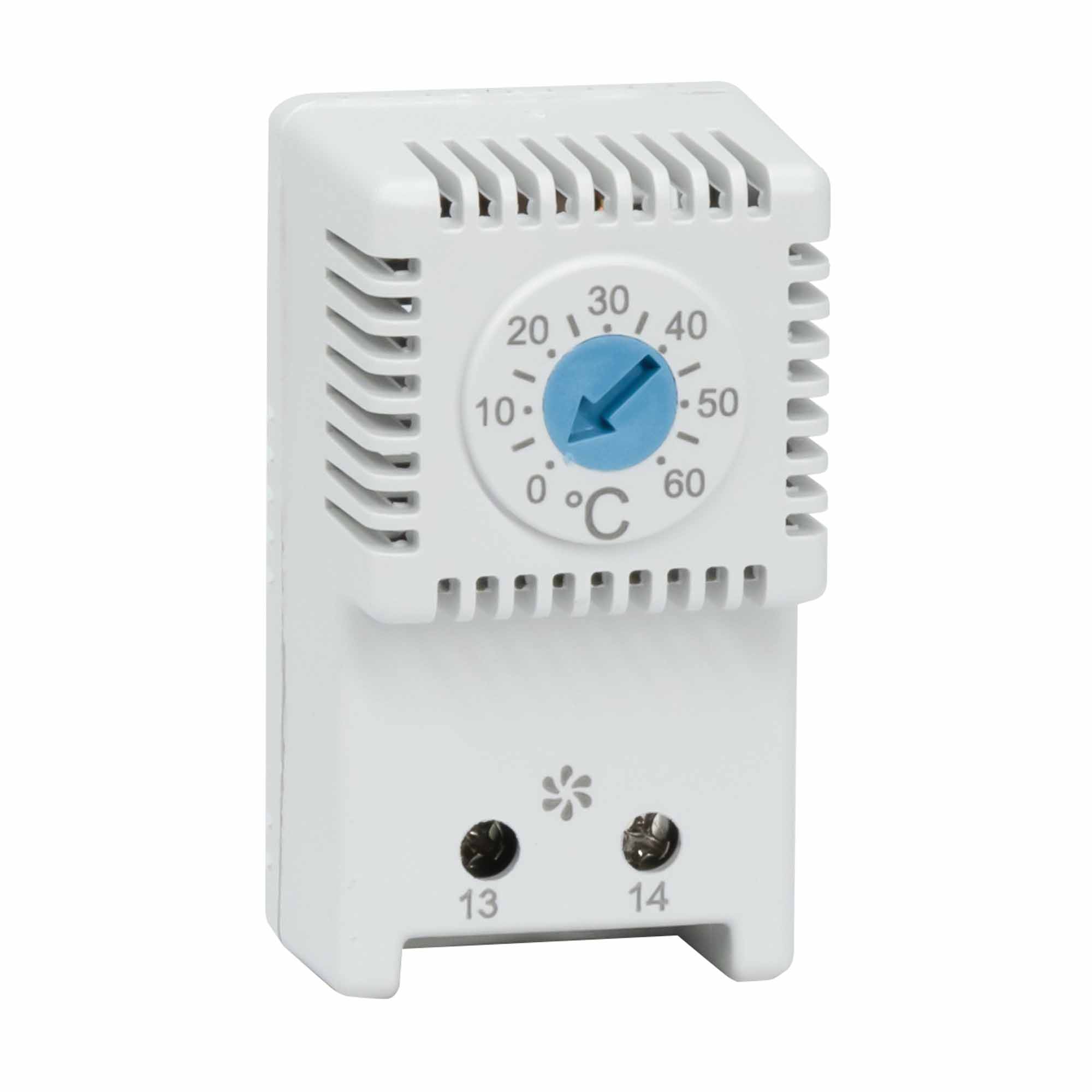

Thermostat, setting temperature range 0…+60°C, NO-contact
Code: R5THV2
Thermostat, setting temperature range 0…+60°C, NO-contact
Code: R5THV2
Mounting method | DRA (DIN-rail adapter) |
With digital indication | Нет |
Type of switch function | Normally open contact |
With hygrostat | Нет |
Adjustment range temperature, °C | 0…+60 |
Product type | Control and Regulation |
External dimensions (W x H x D), mm | 34 x 35 x 61 |
Temperature setting range, °С | from 0 to +60 |
Contact type | NO |
Precision, °С | ±4 |
Hysteresis, °С | 7 |

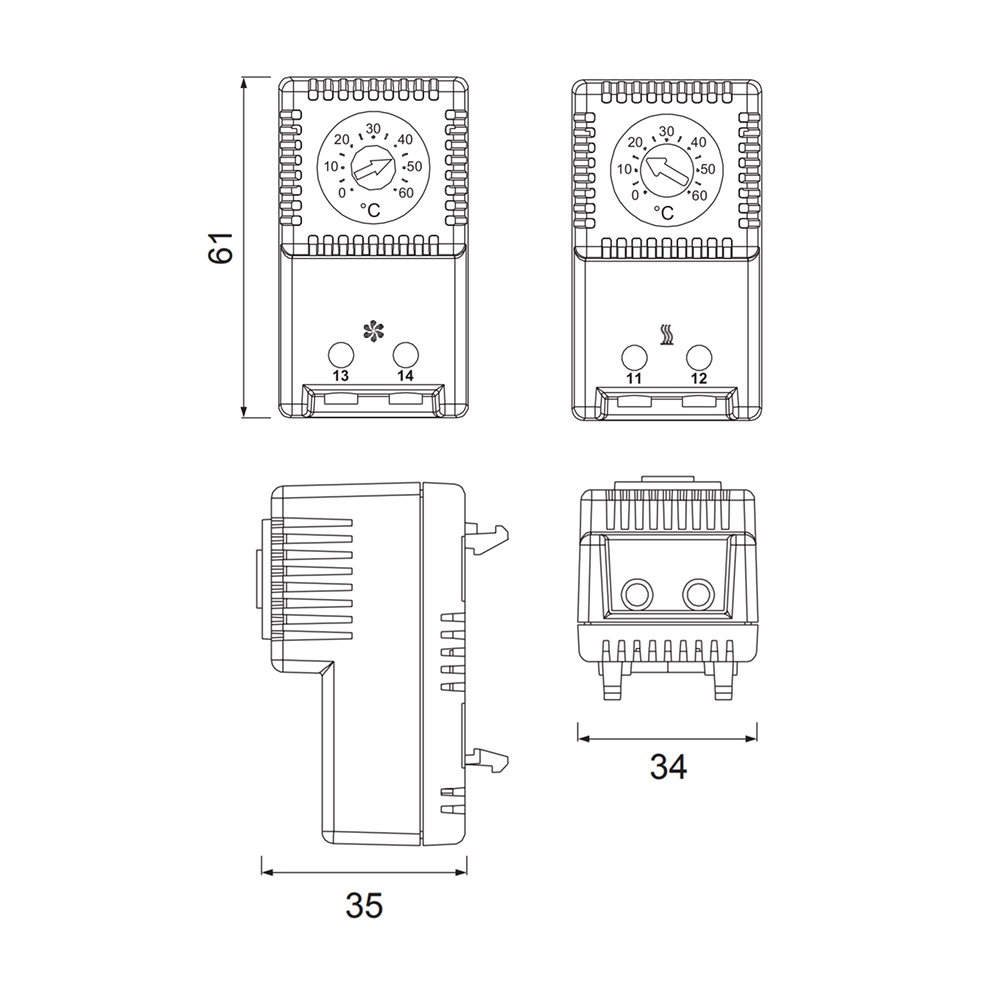

Drawings
Seria | Name | DWG (dynamic.) | Eplan |
---|---|---|---|
Climate Control System - "RAM klima"
|
|
||
Climate Control System - "RAM klima"
|
|
||
Climate Control System - "RAM klima"
|
|
