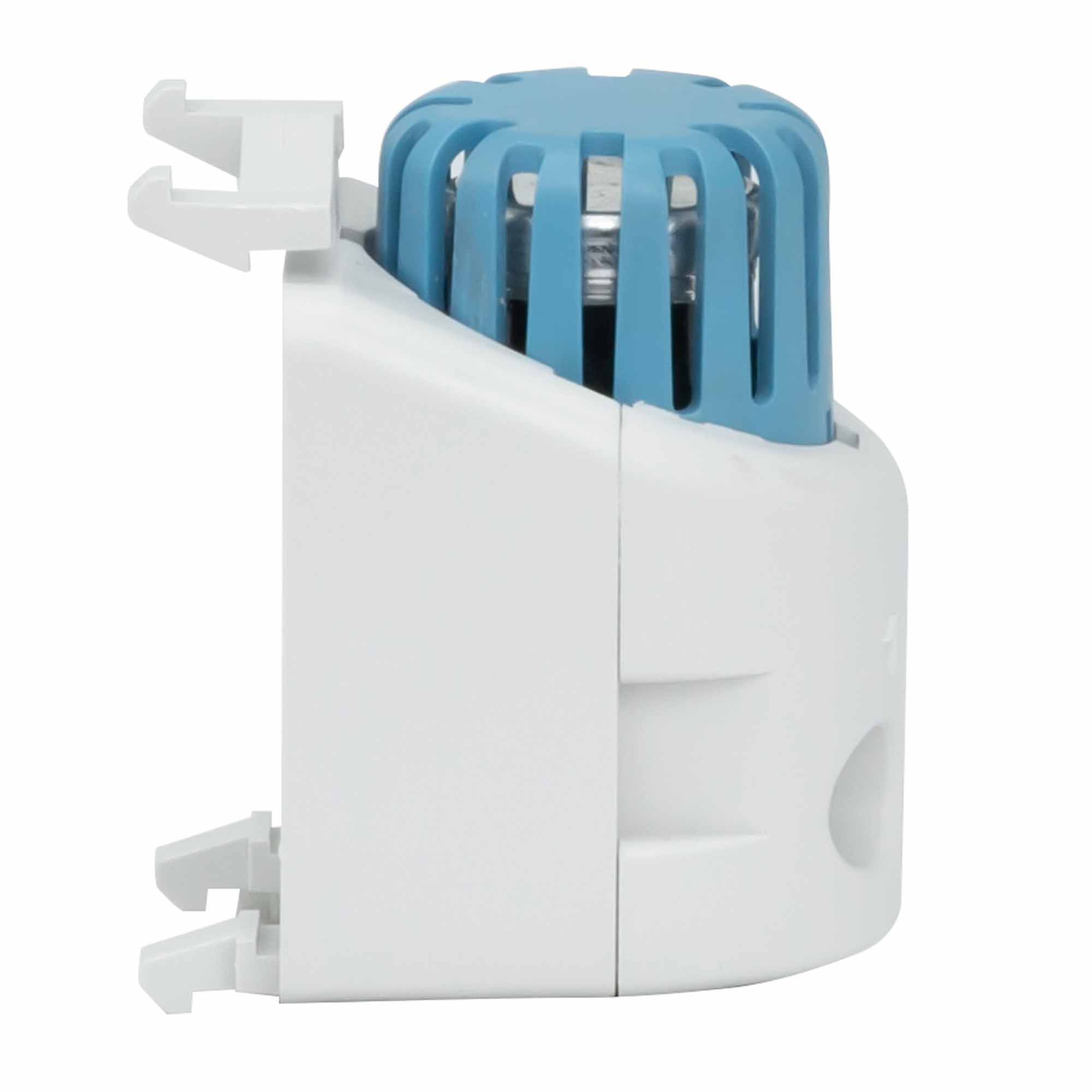

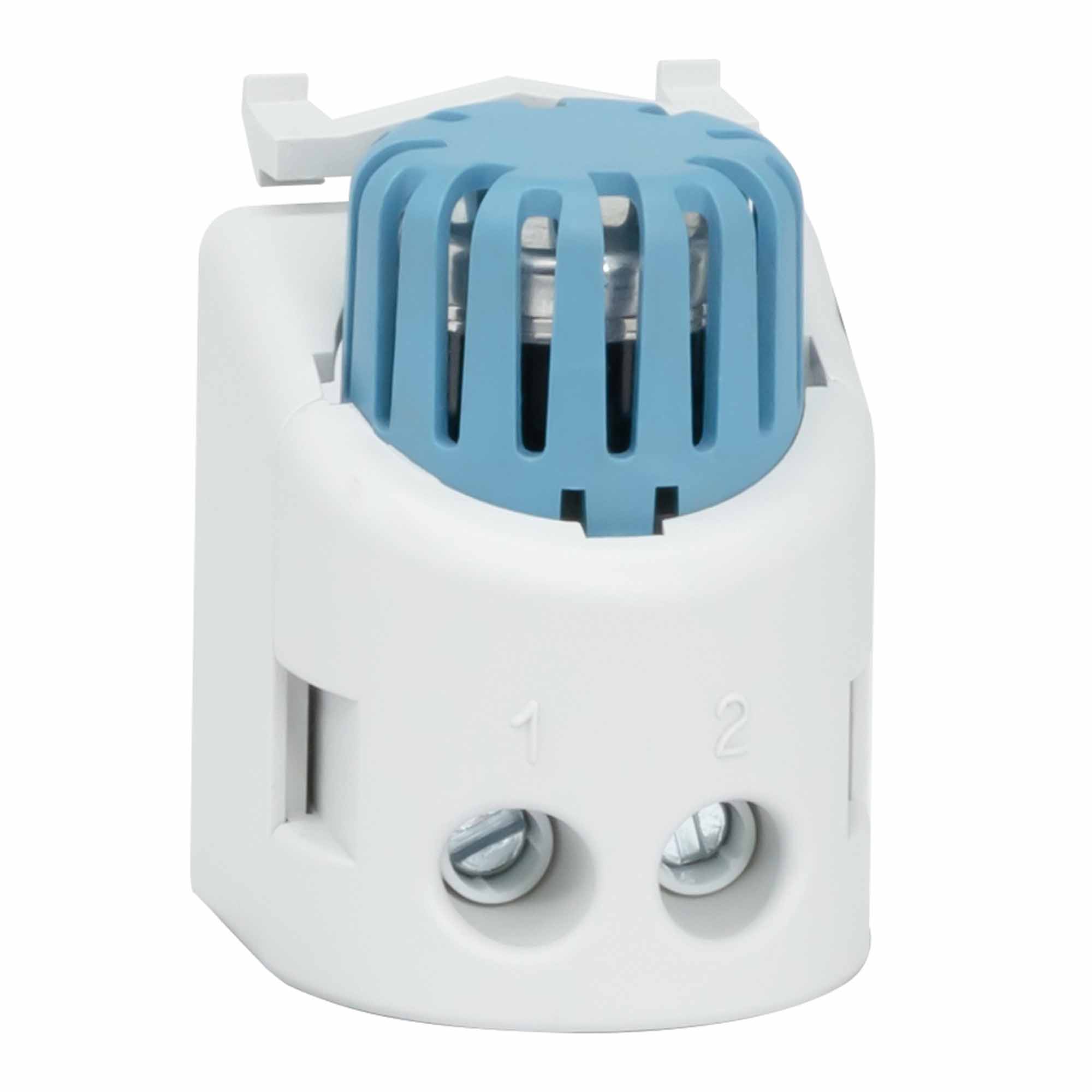

Thermostat, fix temperature set +35°C, NO-contact

Code: R5THVF35
Thermostat, fix temperature set +35°C, NO-contact
Thermostat, fix temperature set +35°C, NO-contact

Thermostat, fix temperature set +35°C, NO-contact

Code: R5THVF35
Mounting method DRA (DIN-rail adapter)
With digital indication Нет
Type of switch function Normally open contact
With hygrostat Нет
Adjustment range temperature, °C +35…+35
Product type Control and Regulation

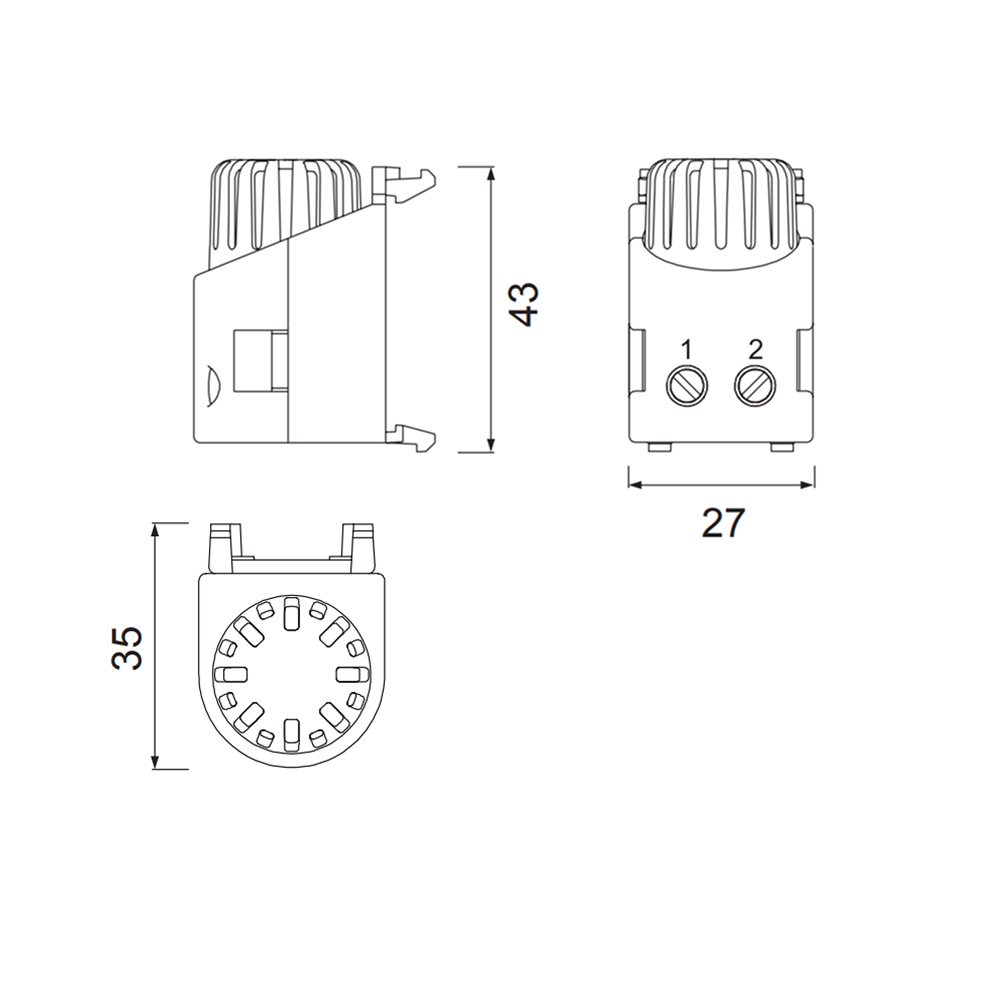

External dimensions (W x H x D), mm 27 x 35 x 43
Temperature setting range, °С +35
Contact type NO
Precision, °С ±4
Hysteresis, °С 10
Drawings
Seria Name DWG (dynamic.) DWG STEP Eplan
Climate Control System - "RAM klima"
Vetilyatsionnye grilles and fans (dynamic blocks)
RAR
1.76 Mb
Climate Control System - "RAM klima"
Thermostat with fixed setting, NO touch, temperature: 35°C
RAR
183.7 Kb
RAR
338.76 Kb
Climate Control System - "RAM klima"
The microclimate control system "RAM klima"
RAR
261.98 Mb
Climate Control System - "RAM klima"
Heaters and thermostats (dynamic blocks)
RAR
3.57 Mb
Certificates
Name Document
Certificate of conformity to thermostats with electrical triggering device series R5THV, R5THR, R5THRV, R5THRF, R5THVF
PDF
842.25 kB
Declaration of Conformity for the heaters
PDF
471.20 kB
