C-profile 41x21, L500 thickness 2,0 mm, ZL
Code: BPV2105ZL
C-profile 41x21, L500 thickness 2,0 mm, ZL
Code: BPV2105ZL
| Model | Singular profile |
| Height, mm | 21 |
| Surface protection | Continuously galvanized zinc-aluminium |
| Material thickness, mm | 2 |
| Length, mm | 500 |
| Material | Steel |
| Type of perforation | Back perforated |
| Profile shape | C-profile |
| Slit width, mm | 10.5 |
| Hole width, mm | 10.5 |
| Suitable for circuit integrity | Yes |
| Colour | Light grey |
| Material | Zinc-lamellated steel |

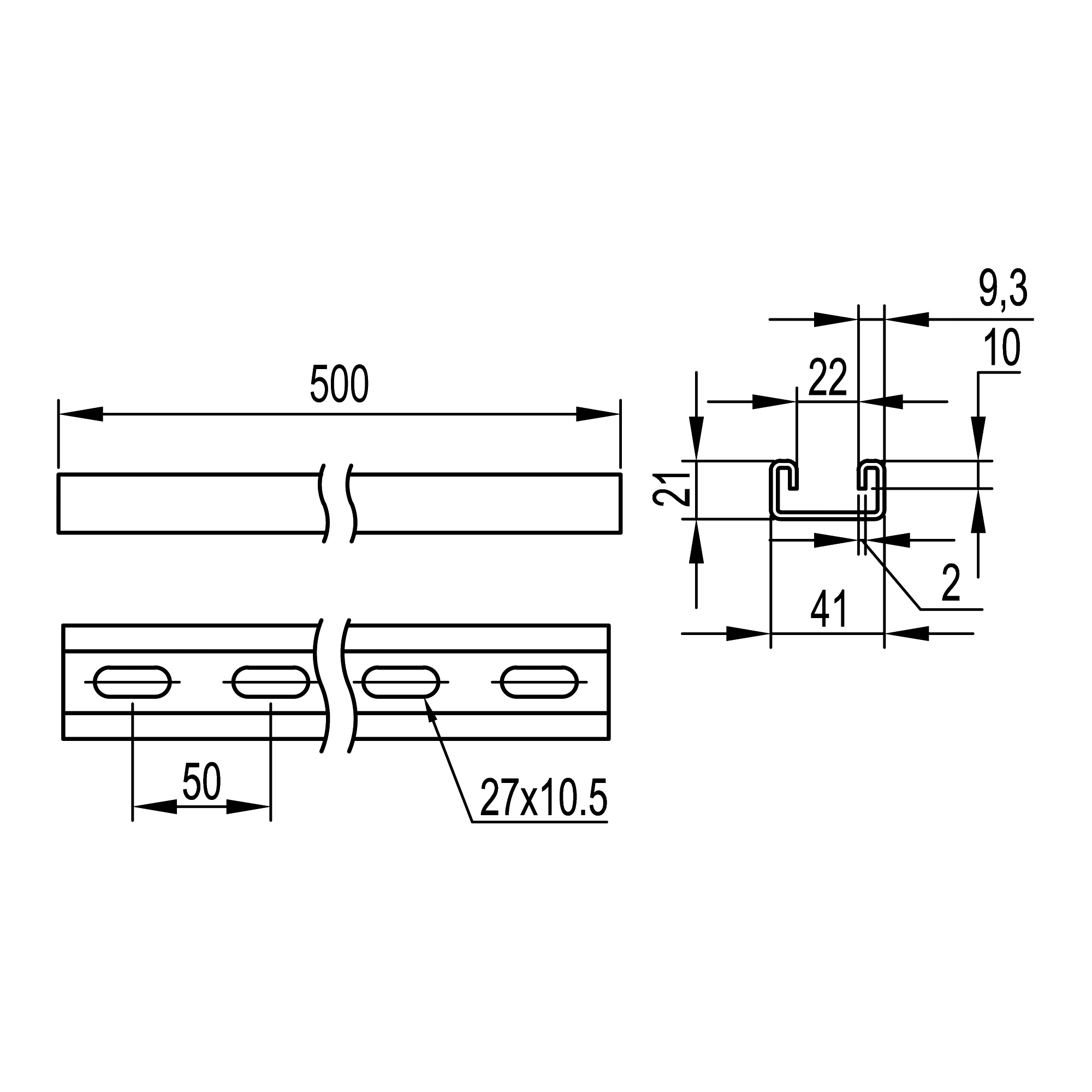

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
