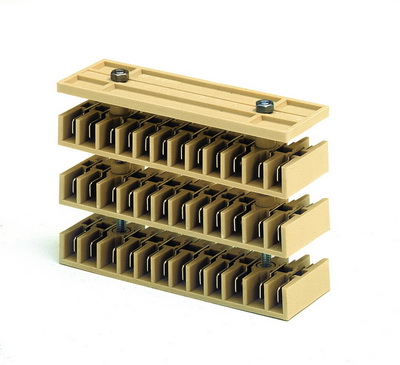

PUSH-ON CONNECT. 12- WAY BLOCK
Code: ZCF900
PUSH-ON CONNECT. 12- WAY BLOCK
Code: ZCF900
Removed from the product range
| Basic colour | Beige |
| Mounting method | Other |
| Rated voltage, V | 500 |
| Length, mm | 34 |
| Operating temperature, °C | -40…80 |
| Width/grid dimension, mm | 16.5 |
| Closing plate required | Yes |
| Number of potentials | 12 |
| Connectable conductor cross section solid-core, mm² | 2.5 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 2.5 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 2.5 |
| Connectable conductor cross section multi-wired, mm² | 2.5 |
| Rated current In, A | 20 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Clip connection |
| Type of electrical connection 2 | Clip connection |
| Material insulation body | Thermoplastic |
| Connection position | Sideways |
| Height at lowest possible mounting height, mm | 109 |
| Color | gray |
| Material of case | Ployamide |
| Height, mm | 109 |
| Width, mm | 34 |
| Temperature of mounting, °C | -40...+80 |
| Temperature of operation, °C | -40 - +80 |
| Depth, mm | 16.5 |
