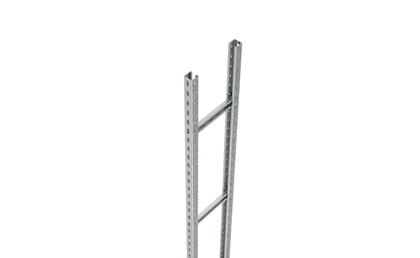

Vertical ladder 400 L3000 mm, hot-dip galvanized

Code: UVC304HDZ

Vertical ladder 400 L3000 mm, hot-dip galvanized

Code: UVC304HDZ
Colour Light grey
Rung distance, mm 600
Type of side wall Profile (open)
Surface protection Hot-dip galvanized
Type of rung Perforated profile
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Width cable ladder, mm 400
Height cable ladder, mm 41
Stainless steel, pickled No
Product type Cable ladder
Width 400 mm
Material Hot-dip galvanized
Side rail thickness 2.5 mm
Type Heavy metal trays - " U5 Combitech"

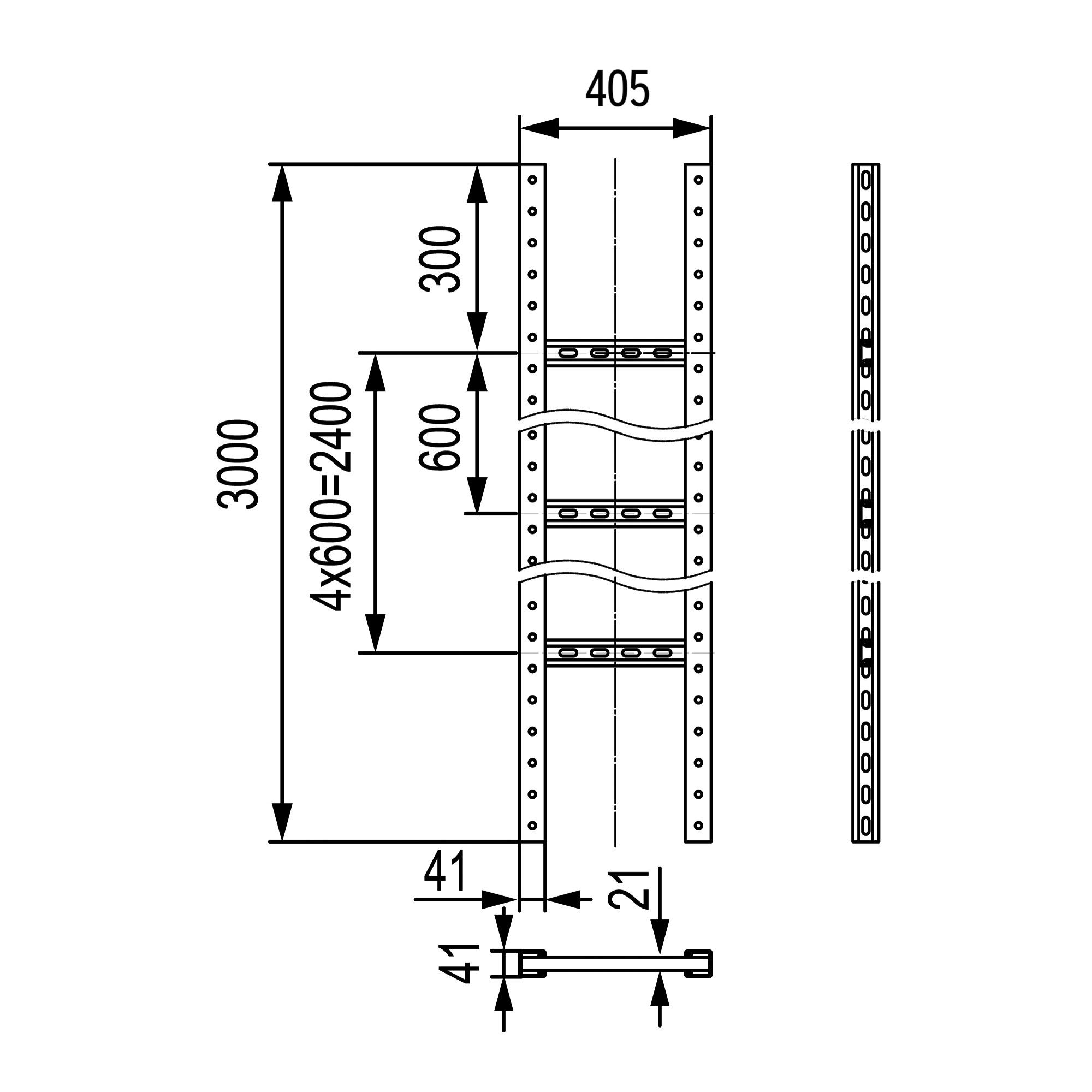

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit STEP
