Junction box (cable distribution head)

Name: Production complex DKC in Vladivostok
Address: Russia, 692490, Primorsky Krai, TOR Nadezhdinskaya, Nadezhdinskiy District, Central'nia st, 52, Nadezhdinskiy District, Primorsky Krai, 692490

Code: 09231

ETIM
?
Characteristics

Colour	Pure white

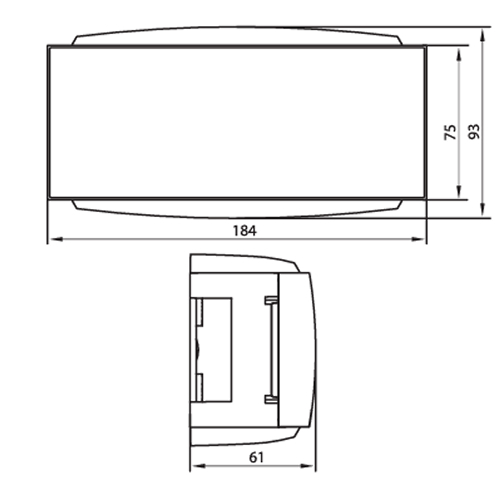

Width, mm	93
Halogen free	Yes

Depth, mm	61
Length, mm	184
Material	Plastic

Color	white, RAL 9016
Material	ABC-plastic
Length, mm	184
Temperature of mounting, °C	5°С ... +60°С
Width (nominal), mm	93
Ingress Protection rating, IP	IP40
Temperature of operation, °C	5°С ... +60°С

Temperature of operation, °C	+60°C
Climate version	UHL4
Q'ty of bays	1
Height (nominal), mm	61
Fire protection	It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type	Junction box

Certificates

Name	Document
In-liner_In-liner Front - Sanitary-epidemiological conclusion for ducts	PDF 2.31 MB
In-liner_In-liner Front - Exemption letter for Sanitary-epidemiological conclusion for cable ducts and miniducts with accessories_1	PDF 1.14 MB
In-liner_In-liner Front - Fire safety certificates for miniducts TMR and floor ducts CSP-F	PDF 392.95 kB
"In-liner_In-liner Front" - Certificate of conformity to GOST R for miniducts TMR and floor ducts CSP-F	PDF 514.76 kB
Certificate of conformity to GOST R for on the cable ducts, a series of "In-liner" and "In-liner Front" and accessories	PDF 1.09 MB
The Certificate of expert opinion for cable ducts and miniducts	PDF 3.09 MB
