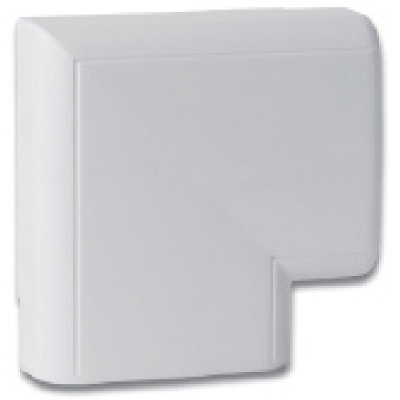

Flat L-form angle 140х50 mm, white

Code: 01403

Flat L-form angle 140х50 mm, white

Code: 01403
Colour Pure white
Width, mm 140
Model Other
Halogen free Yes
Depth, mm 50
Surface protection Other
Material quality Other
Material Plastic
Mounting method cover Inner lying
Number of covers 1
Mounting perforation in bottom Yes
With cable fixing clip No
With duct connector No
Direction Rising/descending
With protection film No
Symmetric Yes
Angle, ° 90
Color white, RAL 9016
Material ABS plastic / PND
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 140
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Q'ty of bays 3
Q'ty of holes 2
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Flat angle
