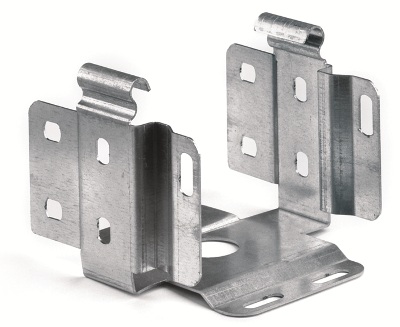

Mesh trays-metal trays connection joint 50x50
Code: FC15005
Mesh trays-metal trays connection joint 50x50
Code: FC15005
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Galvanic/electrolytic zinc plated |
| Construction type | Reducing symmetrical |
| Width (big), mm | 50 |
| Width (small), mm | 100 |
| Material | Steel |
| Cable tray height, mm | 50 |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Product type | Mounting accessories |
| Type of accessories | Mounting accessories |
| Height | 50 mm |
| Material | Pre-galvanized |
| Width | 50 mm |

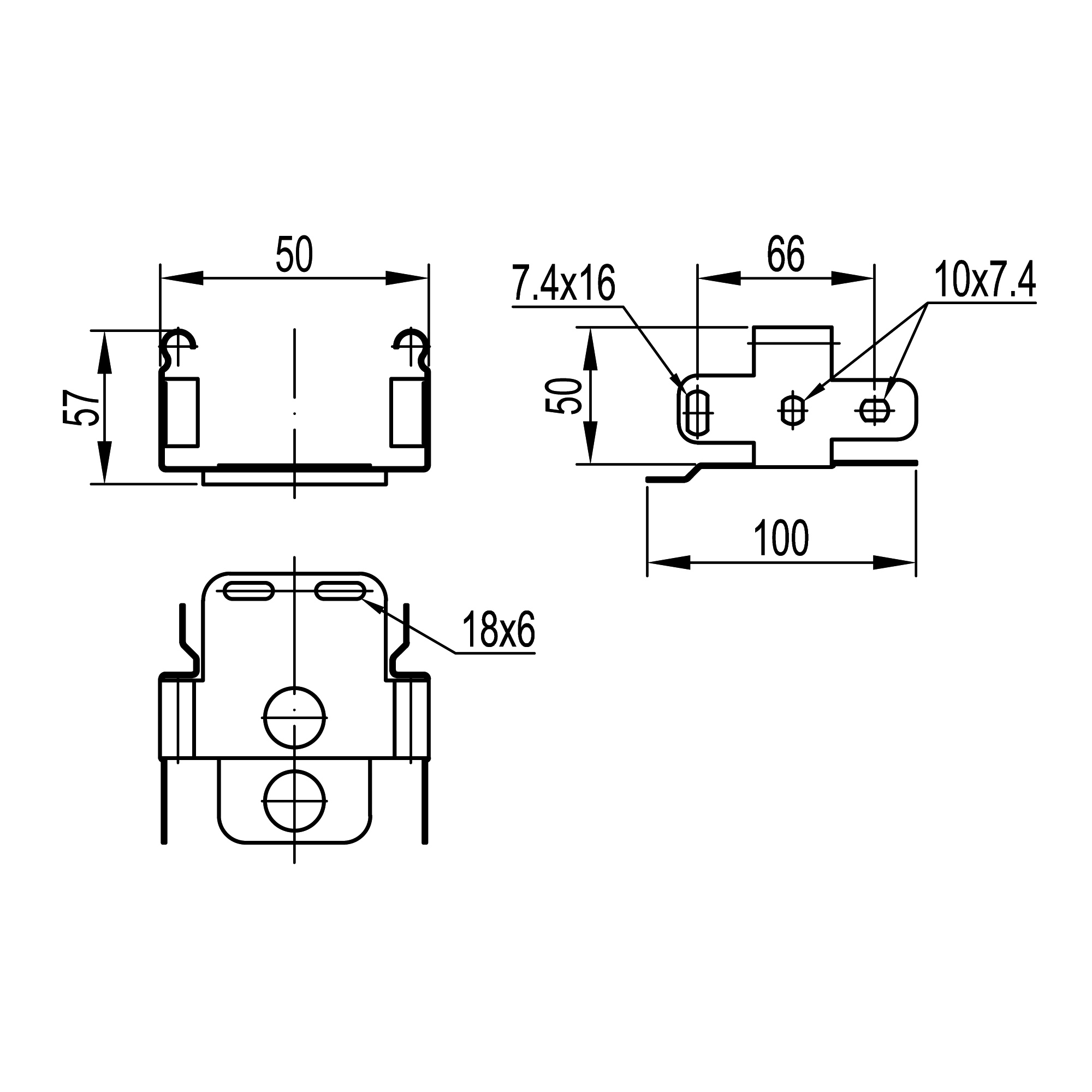

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit |
|---|---|---|---|---|
|
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
|
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
|
Metal wire mesh trays - "F5 Combitech"
|
|
|
Certificates
| Name | Document |
|---|---|
