Perforated ducts, gray RL75 15x30

Code: 00672RL

Perforated ducts, gray RL75 15x30

Code: 00672RL
Colour Light grey
Width, mm 15
Halogen free No
Height, mm 30
Flexible No
Type of side wall Hole-/slot punching
Self-extinguishing Yes
Length, mm 2000
Type of fastening Bottom perforation
Current leak stable Yes
Useful cross section, mm² 345
Distance of slots, mm 12.5
Slit width, mm 5
With cover Yes
Color gray
Material PVC
Height, mm 30
Width, mm 15
Length, mm 2000
Product type Perforated ducts series RL6, RL12,RL75
Accessories

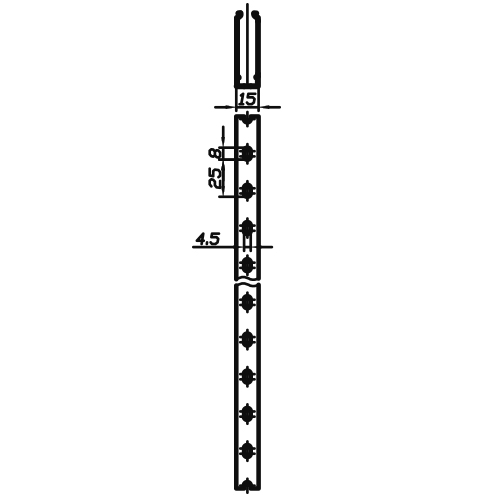

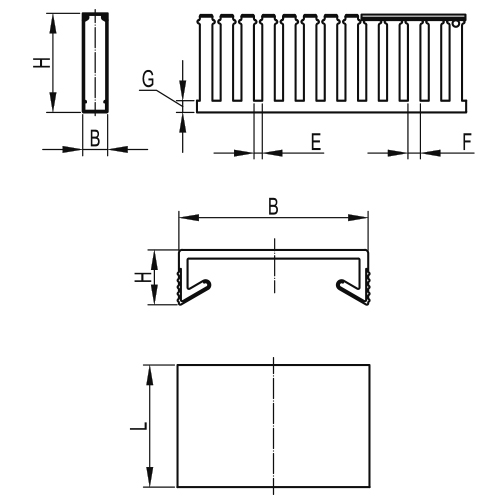

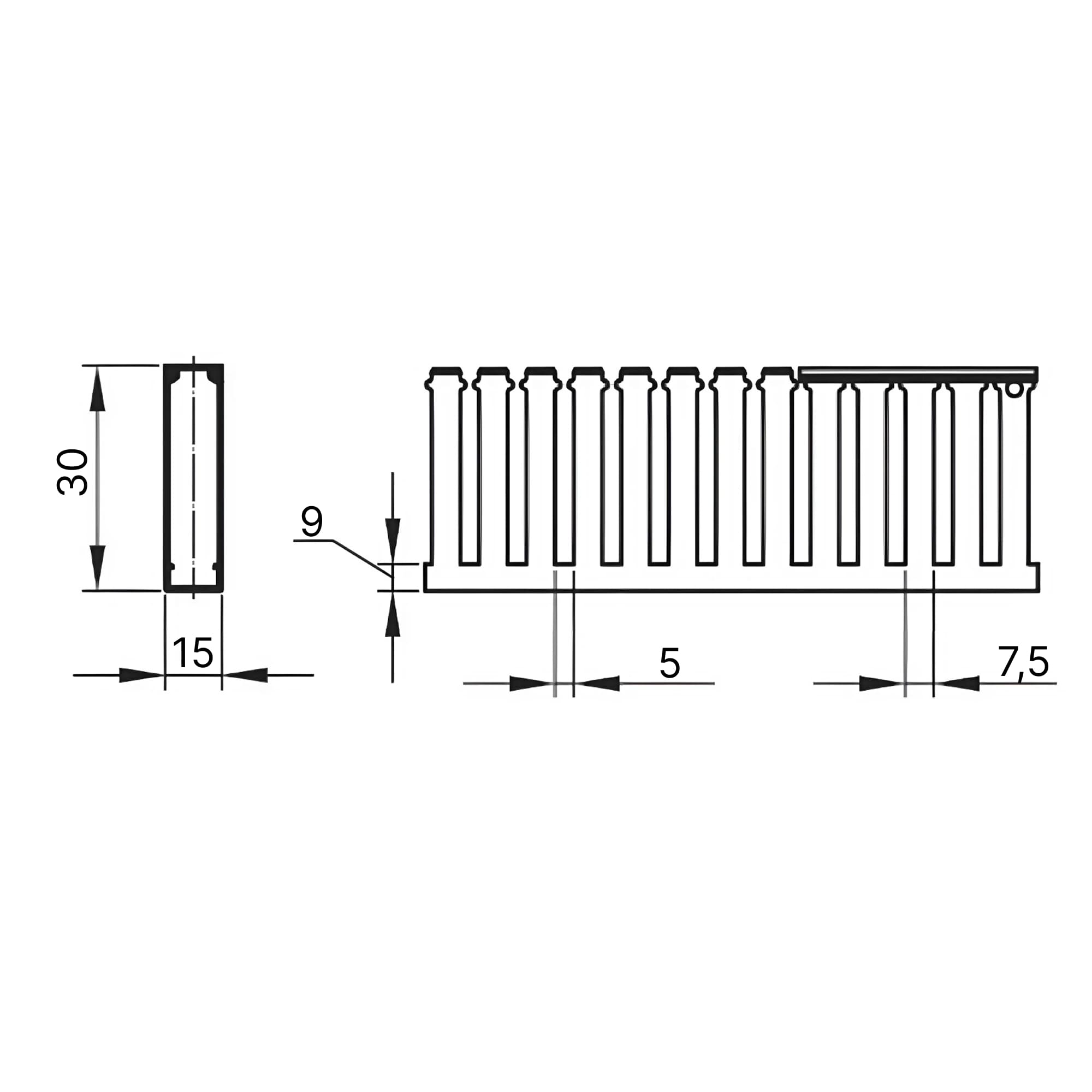

Drawings
Seria Name Eplan DWG STEP
Perforated ducts - "Quadro"
Perforated ducts - "Quadro"
